Double Row Angular Contact Ball Bearings

KZ SERIES : 3200, 3315, 5203, 5304

Angular Contact Ball Bearing

SEALS/SHIELDS : Open, 2RS

MATERIAL : Chrome Steel SAE52100/100Cr6/GCr15 , Stainless Steel 420 and 440

QUALITY : ABEC 1, ABEC3, ABEC5, ABEC7

Double Row Angular Contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other with the angle of contact ranges from 15° to 45° in the direction of the bearing axis. This means that they are designed to accommodate and simultaneously action axial and radial loads. Double row angular contact ball bearings can support axial loads in both directions and high radial loads. They are particularly suitable for bearing arrangements where rigid axial guidance is required. These bearings are available in a wide range of shielding and seals.

Inch Series : XLT, ALS, AMS

CAGES : MACHINED BRASS CAGE

Applications and industry: AUTOMOTIVE, HOME APPLIANCES, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY, AEROSPACE APPLICATIONS, MACHINE TOOL APPLICATION, PUMPS AND MOTORS, RAILD ROAD APPLICATIONS

KZ BEARING SERIES : 3200, 3300, 5200, 5300

Send Query WhatsApp Us

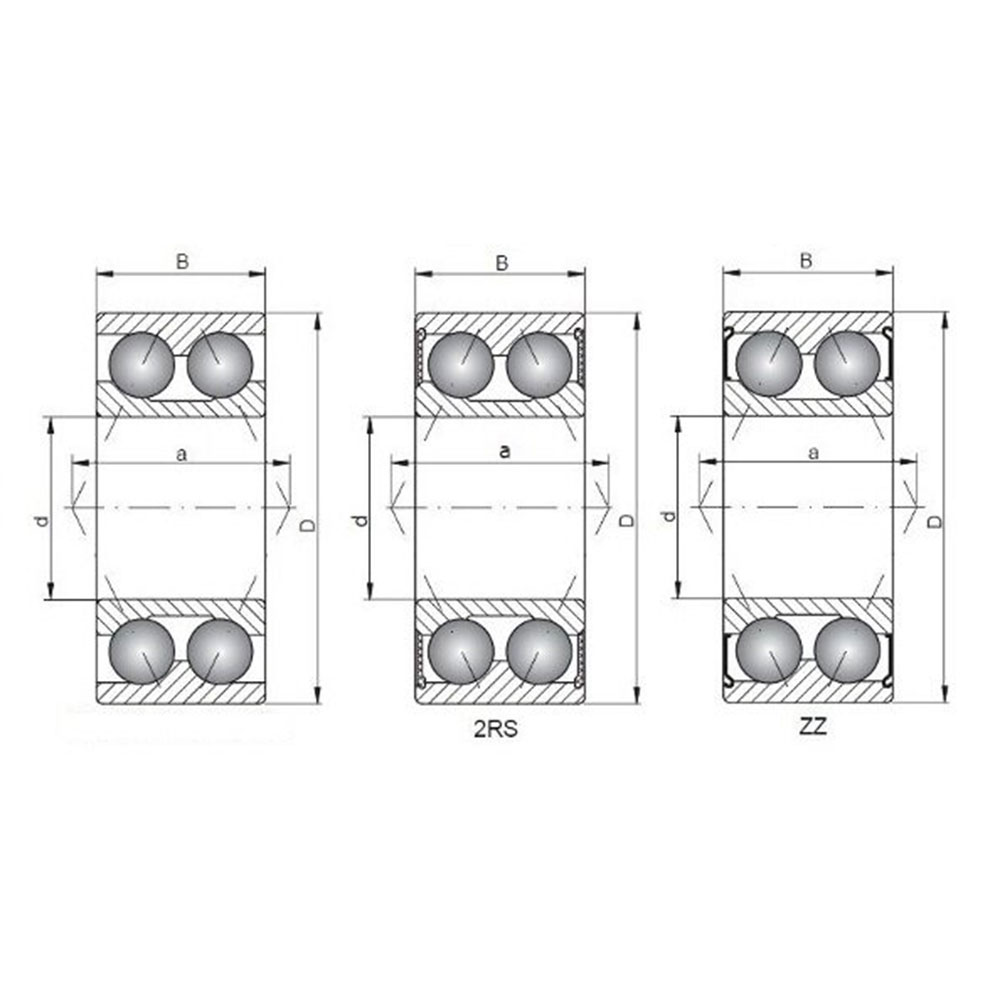

Bearing Number Inner Diameter (d) MM Outer Diameter (D) MM Width (B) MM Basic Load Rating (N) Dyn. C Basic Load Rating (N) Stat. C0 LIMITTING SPEED ( R/MIN ) LUBRICATION Grease LIMITTING SPEED ( R/MIN ) LUBRICATION Oil Weight (KG)
3200 10 30 14.3 7.35 5.35 20000 15000 0.052
3201 12 32 15.9 9.7 7.15 18000 14000 0.063
3202 15 35 15.9 9.7 7.45 16000 12000 0.072
3203 17 40 17.5 13.8 10.8 14000 11000 0.1
3204 20 47 20.6 17.2 15 12000 9000 0.17
3205 25 52 20.6 18.9 18.2 10000 7800 0.19
3206 30 62 23.8 27.3 27 8700 6500 0.32
3207 35 72 27 36.8 37.5 7500 5600 0.48
3208 40 80 30.2 42 43.9 6700 5000 0.65
3209 45 85 30.2 45.4 51.4 6100 4600 0.71
3210 50 90 30.2 45.1 52.1 5700 4300 0.76
3211 55 100 33.3 50.9 60.2 5100 3900 1.05
3212 60 110 36.5 64 76.8 4700 3500 1.4
3213 65 120 38.1 76.4 97.4 4300 3200 1.75
3214 70 125 39.7 77.9 96.4 4100 3100 1.92
3215 75 130 41.3 92.4 120 3900 2900 2.1
3216 80 140 44.4 97.5 121 3600 2700 2.64
3217 85 150 49.2 114 143 3400 2500 3.39
3218 90 160 52.4 132 167 3100 2400 4.14
3302 15 42 19 15.2 11.9 14000 10000 0.132
3303 17 47 22.2 21.7 17.1 13000 9400 0.192
3304 20 52 22.2 20.8 18.4 11000 8200 0.23
3305 25 62 25.4 28.9 26.5 9100 6800 0.369
3306 30 72 30.2 38.1 36.1 7800 5800 0.585
3307 35 80 34.9 48.6 46.8 7000 5200 0.816
3308 40 90 36.5 54.1 53.8 6100 4600 1.07
3309 45 100 39.7 66.1 67.3 5500 4100 1.42
3310 50 110 44.4 86.1 88.6 5000 3800 1.95
3311 55 120 49.2 101 106 4500 3400 2.53
3312 60 130 54 125 132 4200 3100 3.24
3313 65 140 58.7 142 153 3900 2900 4.08
3314 70 150 63.5 151 160 3600 2700 5.04
3315 75 160 68.3 169 189 3300 2500 6.16
3316 80 170 68.3 184 213 3100 2400 6.93
3317 85 180 73 188 219 3000 2200 8.3
3318 90 190 73 205 242 2800 2100 9.23
5203 17 40 17.5 13.2 8.15 14000 11000 0.091
5204 20 47 20.6 19.7 12.5 12000 8800 0.12
5205 25 52 20.6 21.4 14.8 10000 7700 0.19
5206 30 62 23.8 29.7 21.3 8600 6400 0.29
5207 35 72 27 39.2 29 7300 5500 0.43
5208 40 80 30.2 44.4 33.6 6700 5000 0.57
5209 45 85 30.2 49.9 38.4 6100 4600 0.62
5210 50 90 30.2 53.3 43.6 5600 4300 0.67
5211 55 100 33.3 65.9 55.2 5100 3800 0.96
5212 60 110 36.5 74.4 60.8 4700 3500 1.36
5213 65 120 38.1 86.9 75.3 4300 3200 1.66
5214 70 125 39.7 94.5 82.6 4100 3100 1.81
5304 20 52 22.2 24.7 15 11000 8300 0.23
5305 25 62 25.4 32.7 20.8 9200 6900 0.34
5306 30 72 30.2 41 28.5 7700 5800 0.51
5307 35 80 34.9 51.2 36.2 6800 5100 0.79
5308 40 90 36.5 62.7 45.4 6100 4600 1.05
5309 45 100 39.7 75.1 55.7 5500 4100 1.42
5310 50 110 44.4 88.5 67 4800 3600 1.93
5311 55 120 49.2 110 85.1 4500 3300 2.3
5312 60 130 54 126 98.7 4100 3100 3.16
5313 65 140 58.7 142 113 3900 2900 3.91
5314 70 150 63.5 160 129 3600 2700 4.89
5315 75 160 68.3 174 147 3300 2500 5.97
