LMH

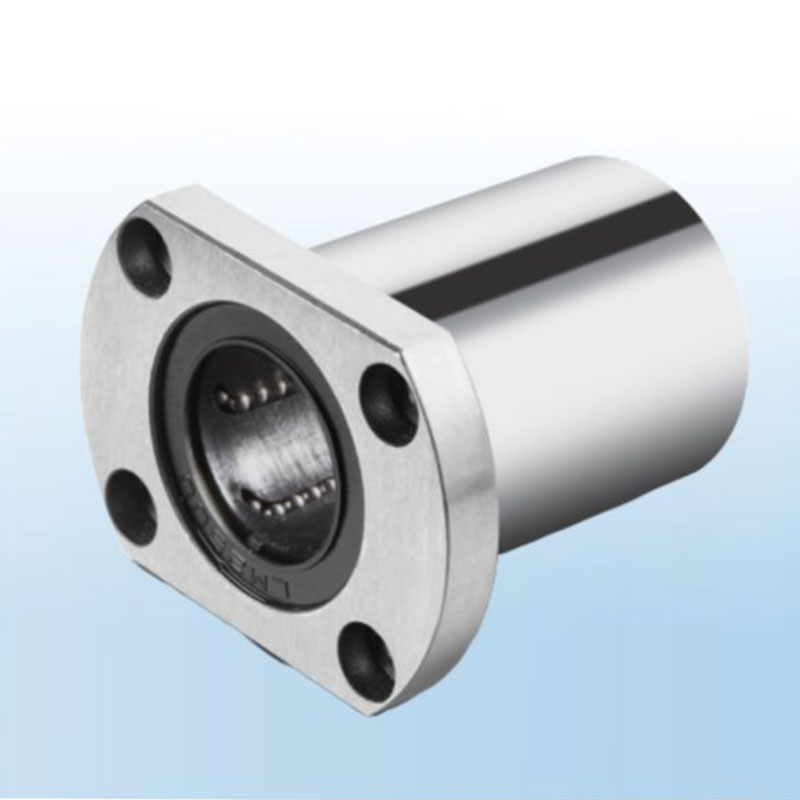

LMH linear bushing has an oval-shaped flange positioned at the beginning of the bearing. The outer diameter of the body is smaller compared to bush-type LMEH. It also has double lip seals and a resin ball cage. It can be used in linear motion applications where fixing true holes in the bushing flange is required.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

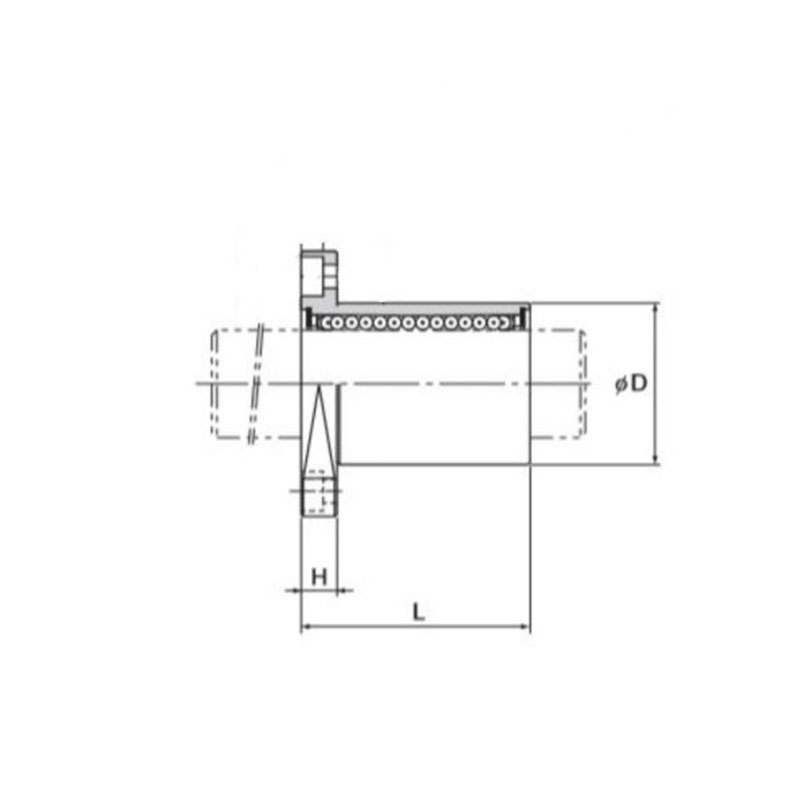

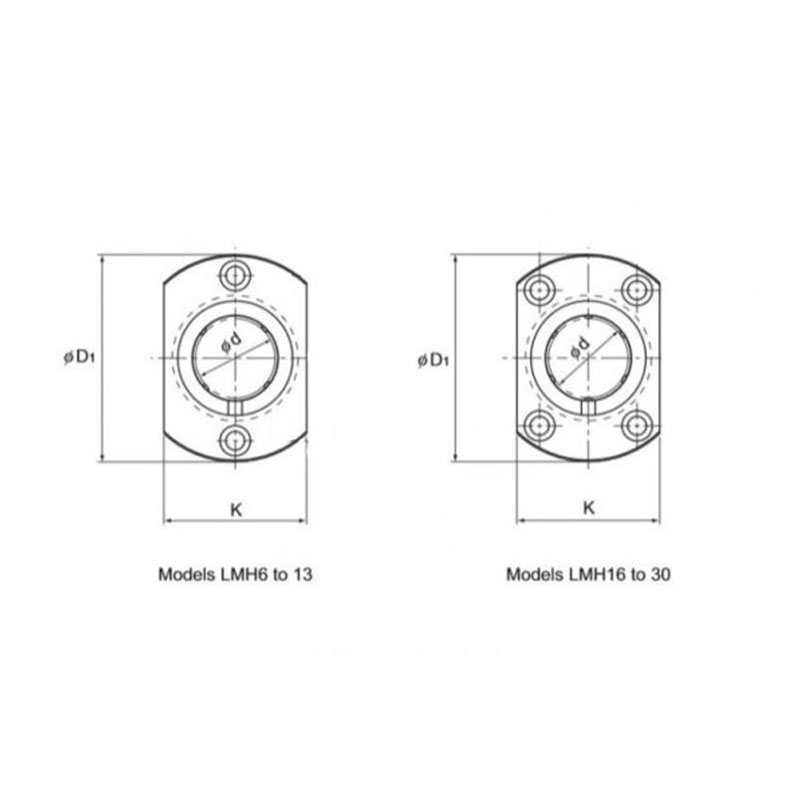

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | d1 | L | C | C0 | K | H | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|
| LMH6 | 6 | 12 | 28 | 19 | 206 | 265 | 18 | 5 | 0.018 |
| LMH8 | 8 | 15 | 32 | 24 | 265 | 402 | 21 | 5 | 0.028 |
| LMH10 | 10 | 19 | 39 | 29 | 373 | 549 | 25 | 6 | 0.05 |
| LMH12 | 12 | 21 | 42 | 30 | 412 | 598 | 27 | 6 | 0.055 |
| LMH13 | 13 | 23 | 43 | 32 | 510 | 775 | 29 | 6 | 0.07 |
| LMH16 | 16 | 28 | 48 | 37 | 775 | 1180 | 34 | 6 | 0.095 |
| LMH20 | 20 | 32 | 54 | 42 | 863 | 1370 | 38 | 8 | 0.15 |
| LMH25 | 25 | 40 | 62 | 59 | 980 | 1570 | 46 | 8 | 0.275 |
| LMH30 | 30 | 45 | 74 | 64 | 1570 | 2750 | 51 | 10 | 0.35 |
