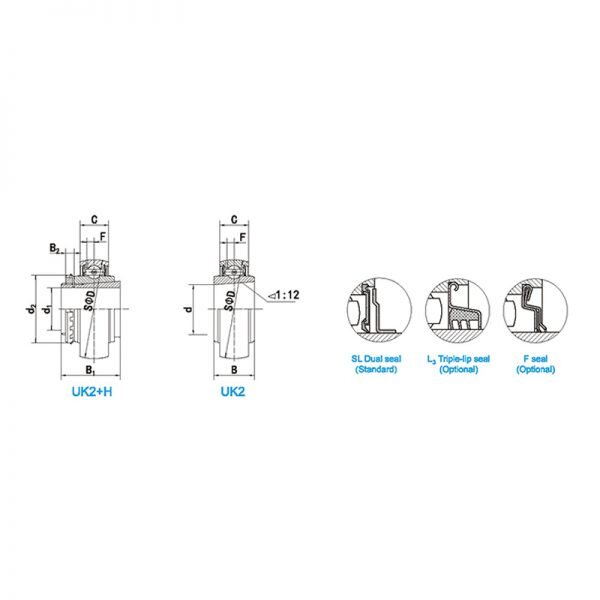

  • UK 200 Line Drawing | KG Bearing

UK 200

KZ SERIES :UK 205-H2305,UK 207-H2307, UK 209-HS2309, UK 213-HE2313

UK 200

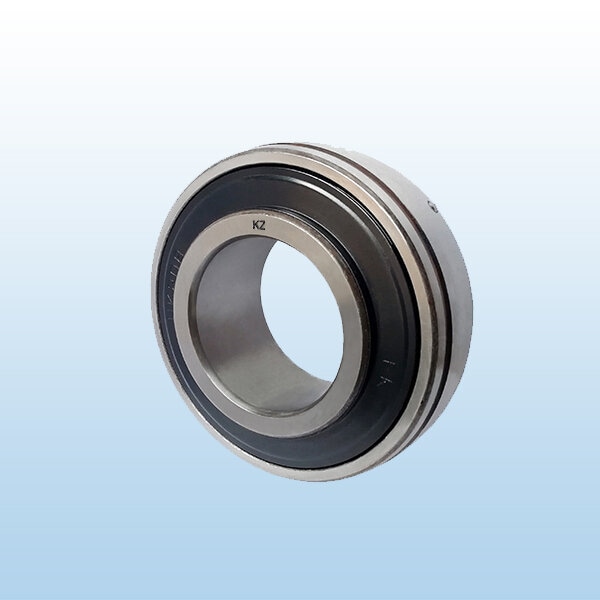

Ball bearing with spherical outside diameter

  • A wide range, inch or metric bores locked onto the shaft by means of setscrews, eccentric locking collars, or taper bush adapters
  • Contact seals, flinger seals, or triple lip seal configurations
  • Considered sealed for life in many applications

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send Query WhatsApp Us
Bearing Number Inner Diameter (d) MM Outer Diameter (D) MM Width (B) MM Dimension-B1 (MM) d1 C ds F Dynamic Load Capacity Static Load Capacity Weight (KG)
UK205-H2305 25 52 23 35 20 17 38 3.9 14000 7850 0.24
UK205-HE2305 0.9843 2.0472 0.9055 1.378 3/4 0.6693 1.496 0.154 14000 7850 0.24
UK206-H2306 30 62 26 38 25 19 45 5 19450 11250 0.36
UK206-HS2306 1.1811 2.4409 1.0236 1.496 1 0.748 1.772 0.197 19450 11250 0.36
UK206-HE2306 1.1811 2.4409 1.0236 1.496 0.748 1.772 0.197 19450 11250 0.36
UK207-H2307 35 72 29 43 30 20 52 5.7 25700 15200 0.52
UK207-HS2307 1.378 2.8346 1.1417 1.693 1-1/8 0.7874 2.047 0.224 25700 15200 0.52
UK208-H2308 40 80 31 46 35 21 58 6.2 29500 18100 0.67
UK208-HE2308 1.5748 3.1496 1.2205 1.811 1-1/4 0.8268 2.283 0.244 29500 18100 0.67
UK208-HS2308 1.5748 3.1496 1.2205 1.811 1-3/8 0.8268 2.283 0.244 29500 18100 0.67
UK209-H2309 45 85 31 50 40 22 65 6.4 32700 20900 0.77
UK209-HA2309 1.7717 3.3465 1.2205 1.969 1-7/16 0.8661 2.559 0.252 32700 20900 0.77
UK209-HE2309 1.7717 3.3465 1.2205 1.969 1-1/2 0.8661 2.559 0.252 32700 20900 0.77
UK209-HS2309 1.7717 3.3465 1.2205 1.969 1-5/8 0.8661 2.559 0.252 32700 20900 0.77
UK210-H2310 50 90 32 55 45 24 70 6.5 35000 23200 0.92
UK210-HS2310 1.9685 3.5433 1.2598 2.165 1-5/8 0.9449 2.756 0.256 35000 23200 0.92
UK210-HA2310 1.9685 3.5433 1.2598 2.165 1-11/16 0.9449 2.756 0.256 35000 23200 0.92
UK210-HE2310 1.9685 3.5433 1.2598 2.165 1-3/4 0.9449 2.756 0.256 35000 23200 0.92
UK211-H2311 55 100 35 59 50 25 75 7 43300 29200 1.15
UK211-HS2311 2.1654 3.937 1.378 2.323 1-7/8 0.9843 2.953 0.276 43300 29200 1.15
UK211-HA2311 2.1654 3.937 1.378 2.323 1-15/16 0.9843 2.953 0.276 43300 29200 1.15
UK211-HE2311 2.1654 3.937 1.378 2.323 2 0.9843 2.953 0.276 43300 29200 1.15
UK212-H2312 60 110 38 62 55 27 80 7.6 47700 32800 1.47
UK212-HS2312 2.3622 4.3307 1.4961 2.441 2-1/8 1.063 3.15 0.299 47700 32800 1.47
UK213-H2313 65 120 40 65 60 28 85 8.5 57200 40000 1.81
UK213-HA2313 2.5591 4.7244 1.5748 2.559 2-3/16 1.1024 3.346 0.335 57200 40000 1.81
UK213-HE2313 2.5591 4.7244 1.5748 2.559 2-1/4 1.1024 3.346 0.335 57200 40000 1.81
UK213-HS2313 2.5591 4.7244 1.5748 2.559 2-3/8 1.1024 3.346 0.335 57200 40000 1.81
UK215-H2315 75 130 44 73 65 30 98 9.2 66200 49300 2.55
UK215-HA2315 2.9528 5.1181 1.7323 2.874 2-7/16 1.1811 3.858 0.362 66200 49300 2.55
UK215-HE2315 2.9528 5.1181 1.7323 2.874 2-1/2 1.1811 3.858 0.362 66200 49300 2.55
UK216-H2316 80 140 45 78 70 32 105 9.5 72600 53300 3.08
UK216-HA2316 3.1496 5.5118 1.7717 3.071 2-11/16 1.2598 4.134 0.374 72600 53300 3.08
UK216-HE2316 3.1496 5.5118 1.7717 3.071 2-3/4 1.2598 4.134 0.374 72600 53300 3.08
UK217-H2317 85 150 46 82 75 34 110 10.2 83300 63700 3.7
UK217-HA2317 3.3465 5.9055 1.811 3.228 2-15/16 1.3386 4.331 0.402 83300 63700 3.7
UK217-HE2317 3.3465 5.9055 1.811 3.228 3 1.3386 4.331 0.402 83300 63700 3.7
UK218-H2318 90 160 47 86 80 36 120 11.2 96000 71100 4.34
UK218-HA2318 3.5433 6.2992 1.8504 3.386 3-3/16 1.4173 4.724 0.441 96000 71100 4.34
