LM LME LM 20

Technical Details

Bore Diameter (mm) d	Outer Diameter (mm) D	Width (mm) B	Weight (Kg)
20	32		0.087

KZ SERIES : LM3, LM6, LM20, LM 35, LM50, LME5, LME20, LME50, LME80

Linear bushing LM/LME LM 20 presents the most popular linear bearing in India. These types of linear bearings are widely used in different linear motion applications. LM/LME linear bushing has a steel outer ring with grooves for a circlip and a polyamide ball retainer with 3 to 6 ball circuits depending on size. On request, linear ball bushing is also available in stainless steel.

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send query Buy Now

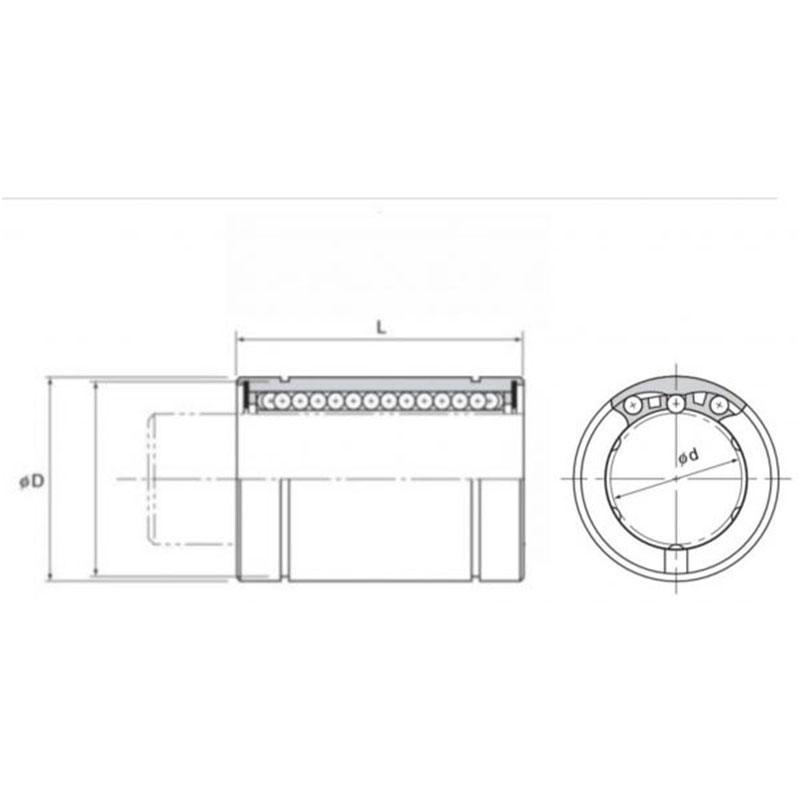

Bearing Number	Inner Diameter (d) MM	Outer Diameter (D) MM	L	C	C0	Weight (KG)
LM 20	20	32	42	863	1370	0.087
LM 25	25	40	59	980	1570	0.22
LM 30	30	45	64	1570	2750	0.25
LM 35	35	52	70	1670	3140	0.39
LM 40	40	60	80	2160	4020	0.585
LM 50	50	80	100	3820	7940	1.58
LM 60	60	90	110	4710	10000	2
LME 5	5	12	22	206	265	0.011
LME 8	8	16	25	265	402	0.02
LME 12	12	22	32	510	775	0.041
LME 16	16	26	36	775	1180	0.054
LME 20	20	32	45	863	1370	0.091
LME 25	25	40	58	980	1570	0.215
LME 30	30	47	68	1570	2750	0.325
LME 40	40	62	80	2160	4020	0.705
LME 50	50	75	100	3820	7940	1.13
LME 60	60	90	125	4710	10000	2.22
LME 80	80	120	165	7350	16000	5.14
