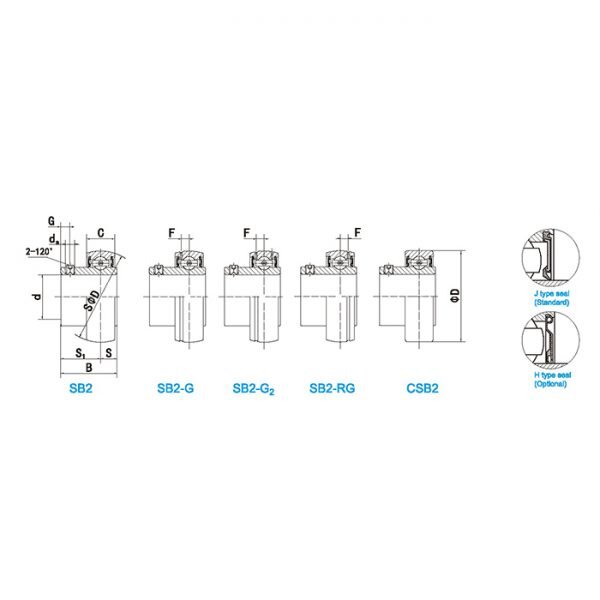

  • SB 200 Line Drawing | KG Bearing

SB 200

KZ SERIES :SB201, SB201-8, SB204, SB205-13, SB206

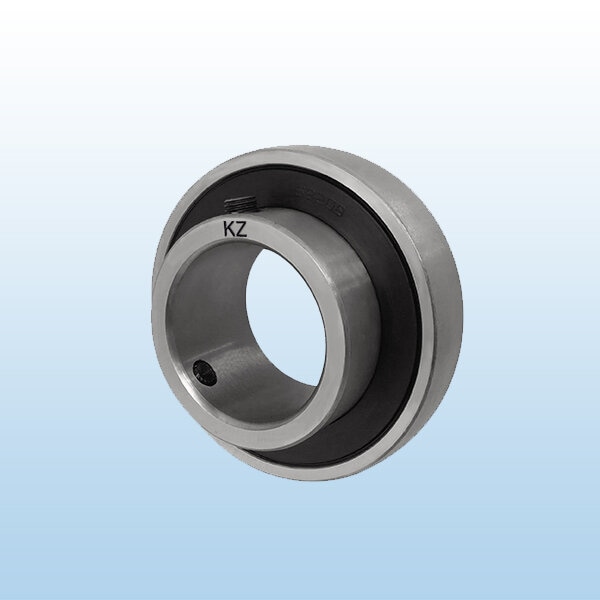

SB 200

The SB 200 Series Stainless steel bearings not only have the characteristics of the ordinary bearings: Low vibration, low noise, high precision rotating, lower friction torque, and high speed running but also have a special usage function. The range of applications is wide:

  • It is an acid-proof and alkali-proof
  • It can work in corrosion mediums such as seawater, river aqua, distilled water, sparse nitric acid, maritime climate, steam, and so on.
  • It can work in the high or low-temperature environment

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send Query WhatsApp Us
Bearing Number Inner Diameter (d) MM Outer Diameter (D) MM Width (B) MM Width C s s1 ds G F Dynamic Load Capacity Static Load Capacity Weight (KG)
SB201 12 40 22 12 6 16 M5X0.8 4.5 3.4 9600 4600 0.1
SB201-8 1/2 1.5748 0.8661 0.4724 0.236 0.63 10-32UNF 0.177 0.134 9600 4600 0.1
SB202 15 40 22 12 6 16 M5X0.8 4.5 3.4 9600 4600 0.1
SB202-9 9/16 1.5748 0.8661 0.4724 0.236 0.63 10-32UNF 0.177 0.134 9600 4600 0.1
SB202-10 5/8 1.5748 0.8661 0.4724 0.236 0.63 10-32UNF 0.177 0.134 9600 4600 0.1
SB203 17 40 22 12 6 16 M5X0.8 4.5 3.4 9600 4600 0.09
SB203-11 11/16 1.5748 0.8661 0.4724 0.236 0.63 10-32UNF 0.177 0.134 9600 4600 0.09
SB204 20 47 25 14 7 18 M6X1 4.5 4.2 12800 6600 0.13
SB204-12 3/4 1.8504 0.9843 0.5512 0.276 0.709 1/4-28UNF 0.177 0.165 12800 6600 0.14
SB205 25 52 27 15 7.5 19.5 M6X1 5.5 4.3 14000 7850 0.16
SB205-13 13/16 2.0472 1.063 0.5906 0.295 0.768 1/4-28UNF 0.217 0.169 14000 7850 0.19
SB205-14 7/8 2.0472 1.063 0.5906 0.295 0.768 1/4-28UNF 0.217 0.169 14000 7850 0.18
SB205-15 15/16 2.0472 1.063 0.5906 0.295 0.768 1/4-28UNF 0.217 0.169 14000 7850 0.17
SB205-16 1 2.0472 1.063 0.5906 0.295 0.768 1/4-28UNF 0.217 0.169 14000 7850 0.16
SB206 30 62 30 16 8 22 M6X1 6 5 19450 11250 0.25
SB206-17 1-1/16 2.4409 1.1811 0.6299 0.315 0.866 1/4-28UNF 0.236 0.197 19450 11250 0.28
SB206-18 1-1/8 2.4409 1.1811 0.6299 0.315 0.866 1/4-28UNF 0.236 0.197 19450 11250 0.26
SB206-19 1-3/16 2.4409 1.1811 0.6299 0.315 0.866 1/4-28UNF 0.236 0.197 19450 11250 0.25
SB206-20 1-1/4 2.4409 1.1811 0.6299 0.315 0.866 1/4-28UNF 0.236 0.197 19450 11250 0.24
SB207 35 72 32 17 8.5 23.5 M8X1 6.5 5.6 25700 15200 0.36
SB207-20 1-1/4 2.8346 1.2598 0.6693 0.335 0.925 5/16-24UNF 0.256 0.22 25700 15200 0.41
SB207-21 1-5/16 2.8346 1.2598 0.6693 0.335 0.925 5/16-24UNF 0.256 0.22 25700 15200 0.39
SB207-22 1-3/8 2.8346 1.2598 0.6693 0.335 0.925 5/16-24UNF 0.256 0.22 25700 15200 0.36
SB207-23 1-7/16 2.8346 1.2598 0.6693 0.335 0.925 5/16-24UNF 0.256 0.22 25700 15200 0.35
SB208 40 80 34 18 9 25 M8X1 7 5.9 29500 18100 0.45
SB208-24 1-1/2 3.1496 1.3386 0.7087 0.354 0.984 5/16-24UNF 0.276 0.232 29500 18100 0.43
SB208-25 1-9/16 3.1496 1.3386 0.7087 0.354 0.984 5/16-24UNF 0.276 0.232 29500 18100 0.45
SB209 45 85 41.2 19 10.2 31 M8X1 8.2 6.1 32700 20900 0.54
SB209-26 1-5/8 3.3465 1.622 0.748 0.402 1.22 5/16-24UNF 0.323 0.24 32700 20900 0.54
SB209-27 1-11/16 3.3465 1.622 0.748 0.402 1.22 5/16-24UNF 0.323 0.24 32700 20900 0.54
SB209-28 1-3/4 3.3465 1.622 0.748 0.402 1.22 5/16-24UNF 0.323 0.24 32700 20900 0.54
SB210 50 90 43.5 20 10.9 32.6 M10X1 9.2 6.5 35000 23200 0.62
SB210-29 1-13/16 3.5433 1.7126 0.7874 0.429 1.283 3/8-24UNF 0.362 0.256 35000 23200 0.62
SB210-30 1-7/8 3.5433 1.7126 0.7874 0.429 1.283 3/8-24UNF 0.362 0.256 35000 23200 0.62
SB210-31 1-15/16 3.5433 1.7126 0.7874 0.429 1.283 3/8-24UNF 0.362 0.256 35000 23200 0.62
SB210-32 2 3.5433 1.7126 0.7874 0.429 1.283 3/8-24UNF 0.362 0.256 35000 23200 0.62
SB211 55 100 45.3 21 11.8 33.5 M10X1 9.8 7 43300 29200 0.81
SB211-32 2 3.937 1.7835 0.8268 0.465 1.319 3/8-24UNF 0.386 0.276 43300 29200 0.81
SB211-33 2-1/16 3.937 1.7835 0.8268 0.465 1.319 3/8-24UNF 0.386 0.276 43300 29200 0.81
SB211-34 2-1/8 3.937 1.7835 0.8268 0.465 1.319 3/8-24UNF 0.386 0.276 43300 29200 0.81
SB211-35 2-3/16 3.937 1.7835 0.8268 0.465 1.319 3/8-24UNF 0.386 0.276 43300 29200 0.81
SB212 60 110 53.7 22 14.9 38.8 M10X1 9.8 7.4 47700 32800 1.14
SB212-36 2-1/4 4.3307 2.1142 0.8661 0.587 1.528 3/8-24UNF 0.386 0.291 47700 32800 1.14
SB212-37 2-5/16 4.3307 2.1142 0.8661 0.587 1.528 3/8-24UNF 0.386 0.291 47700 32800 1.14
SB212-38 2-3/8 4.3307 2.1142 0.8661 0.587 1.528 3/8-24UNF 0.386 0.291 47700 32800 1.14
SB212-39 2-7/16 4.3307 2.1142 0.8661 0.587 1.528 3/8-24UNF 0.386 0.291 47700 32800 1.14
