H 300 H310

Technical Details

Bore Diameter (mm) d	Outer Diameter (mm) D	Width (mm) B	Weight (Kg)
			0.302

KZ SERIES : H305, H307, H310, H315, H318, H322

This series of metric adapter assemblies accommodate standard small-bore bearings. They are the most commonly used method for locating tapered bore balls or roller bearings onto a cylindrical shaft. This series of adapters are used with 223 and 232 series spherical roller bearings.

Features and benefits H310

Heavy-duty positive locking method for industrial applications.
Easy to install at any position on a straight shaft without the need for the additional locating device.
Common techniques and design allow simple installation and removal.
Standard Locknut sets the industry locknut standard

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send query Buy Now

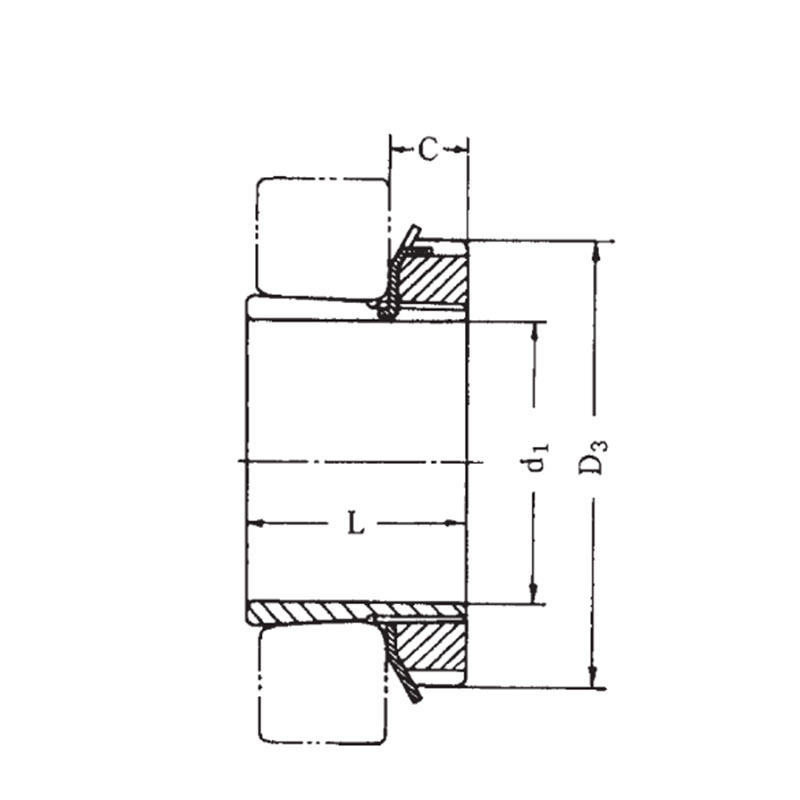

Bearing Number	H (MM)	HE	HS	HA	L (MM)	D3	C (MM)	HE	HS	HA	Weight (KG)
H310	45	1.75		1.6875	42	70	12	10	-	10	0.302
H311	50	2	1.875	1 15/16	45	75	12	HE 311	HS 311	HA 311	0.345
H312	55		2.125	-	47	80	13	-	12	-	0.393
H313	60	2.25	2.375	2 3/16	50	85	14	13	13	13	0.459
H314	60			-	52	92	14	-	-	-	0.723
H315	65	2.5	2.625	2 7/ 16	55	98	15	HE 315	HS 315	HA 315	0.83
H316	70	2.75		2 11/16	59	105	17	16	-	16	1.03
H317	75	3	2.875	2 15/16	63	110	18	HE 317	HE 317	HE 317	1.18
H318	80		3.125	-	65	120	18	-	18	-	1.37
H319	85			-	68	125	19	19	-	-	1.56
H320	90	3.5		-	71	130	20	HE 320	-	-	1.69
H321	95			-	74	140	20	-	-	-	1.93
H322	100	4		-	77	145	21	22	-	-
