  • H 3000 | KG Bearing

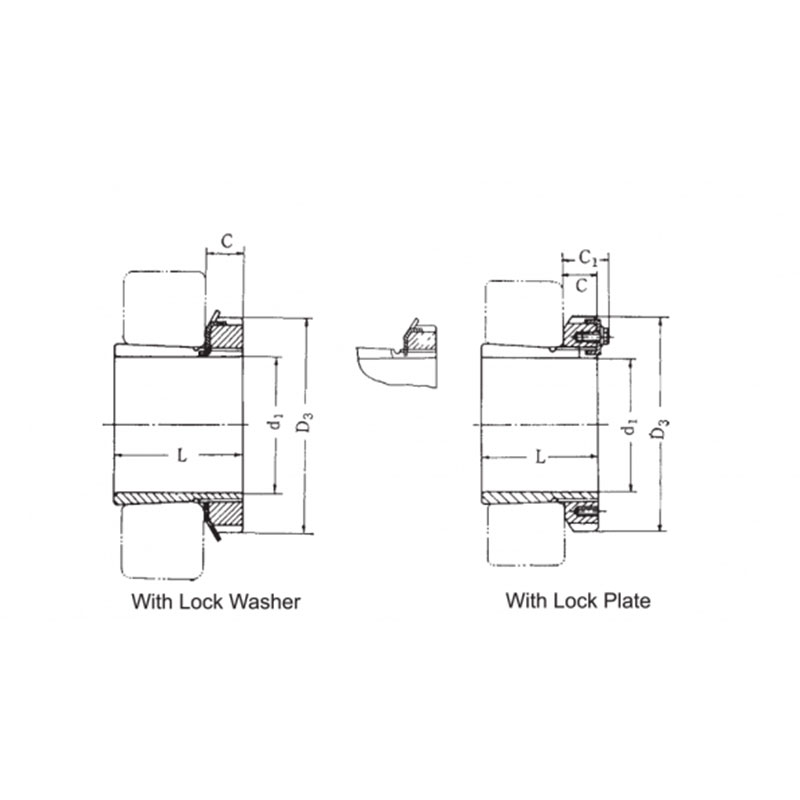

  • H 3000 Line Drawing | KG Bearing

H 3000 H3076

Technical Details

Bore Diameter (mm) d Outer Diameter (mm) D Width (mm) B Weight (Kg)
35.8

KZ SERIES : H3024, H3030, H3038, H3052, H3060, H3072, H3084, H3096

Rolling element bearings H3076 are widely used in industries such as machine tools, automobiles, electric motors and generators, aircraft turbines, and ships. Tapered bore bearings are the most common type of rolling-element bearing. KG Bearing H3000 series adapter sleeve is a bearing that is used to locate a rolling element bearing with a tapered bore on a smooth or stepped cylindrical shaft.

Applications and industry: AGRICULTUREAUTOMOTIVECEMENT INDUSTRYCRUSHER INDUSTRYHEAVY MACHINERY EQUIPMENTSHOME APPLIANCESMINING SECTORMETAL INDUSTRYFLUID MACHINERYTEXTILE INDUSTRY

Send query Buy Now
Bearing Number H (MM) HE L (MM) D3 C (MM) C1 (MM) HE Weight (KG)
H3076 360 - 193 450 48 62 - 35.8
H3080 380 210 470 52 66 - 41.5
H3084 400 212 490 52 66 - 43.6
H3088 410 - 228 520 60 77 - 65.5
H3092 430 - 234 540 60 77 - 69.4
H3096 450 - 237 560 60 77 - 73.5
H30/500 470 - 247 580 68 85 - 82.0
