PHSA PHSA5

Technical Details

Bore Diameter (mm) d	Outer Diameter (mm) D	Width (mm) B	Weight (Kg)
5		8	0.017

KZ SERIES : PHSA5, PHSA8, PHSA10, PHSA12, PHSA20

PHSA PHSA5 has integrated spherical bushing with a sliding spherical surface that can support a large radial load and a bidirectional axial load at the same time.

They are designed for slow swinging movement.

PHSA rod ends have either a female thread in the body or a male thread on the body, and they can be easily assembled onto machines.

These bushings are classified by sliding surface types: Insert type, die-cast type, and maintenance-free type.

Compact self-aligning spherical bushings with the body
Female thread in the body or a male thread on the body
Design with an outer ring made of special copper alloy or economical design of the outer ring
Maintenance-free types

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send query Buy Now

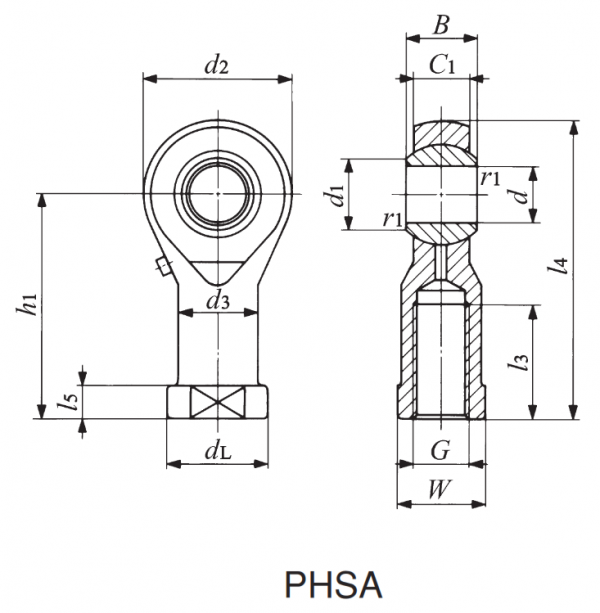

Bearing Number	Inner Diameter (d) MM	Width (B) MM	d1	Inch	Ball Diameter (MM)	Thread G	r 1 min	w	C1 (MM)	d3	H1	d2	Static Load Capacity	Weight (KG)
PHSA5	5	8	7.7	7/16	11.112	M 5×0.8	0.2	9	6	9	27	17	5 470	0.017
PHSA6	6	9	9	1/2	12.7	M 6×1	0.2	11	6.75	10	30	19.5	6 760	0.025
PHSA8	8	12	10.4	5/8	15.875	M 8×1.25	0.2	14	9	12.5	36	24	10 200	0.045
PHSA10	10	14	12.9	3/4	19.05	M10×1.5	0.2	17	10.5	15	43	28	13 100	0.07
PHSA12	12	16	15.4	7/8	22.225	M12×1.75	0.2	19	12	17.5	50	32	16 400	0.105
PHSA14	14	19	16.9	1	25.4	M14×2	0.3	22	13.5	20	57	36	20 000	0.155
PHSA16	16	21	19.4	1 1/8	28.575	M16×2	0.3	22	15	22	64	40	23 900	0.19
PHSA18	18	23	21.9	1 1/4	31.75	M18×1.5	0.3	27	16.5	25	71	45	28 800	0.29
PHSA20	20	25	24.4	1 3/8	34.925	M20×1.5	0.3	30	18	27.5	77	49	33 400	0.4
PHSA22	22	28	25.8	1 1/2	38.1	M22×1.5	0.3	32	20	30	84	54	40 400	0.5
