SA 200 SA201-8

Technical Details

Bore Diameter (mm) d	Outer Diameter (mm) D	Width (mm) B	Weight (Kg)
1/2	1.5748	1.126	0.12

KZ SERIES :SA201, SA201-8, SA206, SA207-20, SA210-32

SA 200 SA201-8 insert bearing is self-aligning for standard load capacity. The standard lubrication feature has a drilled hole in groove on locking collar side and drilled oil hole opposite the collar to make it interchangeable with all manufacturers. SA200 Insert Bearings can also be a replacement bearing for many Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4-Bolt Flanges, and Take-up units. It can also be cost-efficient for replacing the insert bearing instead of replacing the whole unit which can be costly.

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send query Buy Now

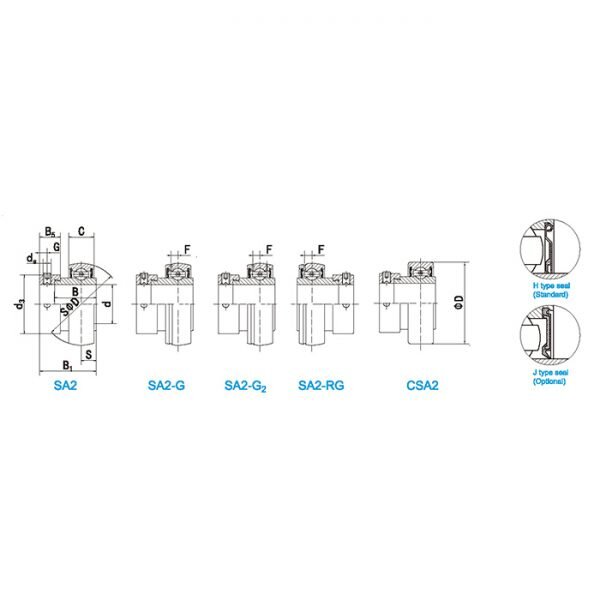

Bearing Number	Inner Diameter (d) MM	Outer Diameter (D) MM	Width (B) MM	Dimension-B1 (MM)	C	ds	G	F	BS	d3	S	Dynamic Load Capacity	Static Load Capacity	Weight (KG)
SA201-8	1/2	1.5748	1.126	0.752	0.4724	1/4-28UNF	0.189	0.134	0.531	1.126	0.256	9600	4600	0.12
SA202	15	40	28.6	19.1	12	M6X1	4.8	3.4	13.5	28.6	6.5	9600	4600	0.1
SA202-9	9/16	1.5748	1.126	0.752	0.4724	1/4-28UNF	0.189	0.134	0.531	1.126	0.256	9600	4600	0.1
SA202-10	5/8	1.5748	1.126	0.752	0.4724	1/4-28UNF	0.189	0.134	0.531	1.126	0.256	9600	4600	0.1
SA203	17	40	28.6	19.1	12	M6X1	4.8	3.4	13.5	28.6	6.5	9600	4600	0.09
SA203-11	11/16	1.5748	1.126	0.752	0.4724	1/4-28UNF	0.189	0.134	0.531	1.126	0.256	9600	4600	0.09
SA204	20	47	31	21.5	14	M6X1	4.8	4.2	13.5	33.3	7.5	12800	6600	0.16
SA204-12	3/4	1.8504	1.22	0.8465	0.5512	1/4-28UNF	0.189	0.165	0.531	1.311	0.295	12800	6600	0.16
SA205	25	52	31	21.5	15	M6X1	4.8	4.3	13.5	38.1	7.5	14000	7850	0.2
SA205-13	13/16	2.0472	1.22	0.8465	0.5906	1/4-28UNF	0.189	0.169	0.531	1.5	0.295	14000	7850	0.22
SA205-14	7/8	2.0472	1.22	0.8465	0.5906	1/4-28UNF	0.189	0.169	0.531	1.5	0.295	14000	7850	0.21
SA205-15	15/16	2.0472	1.22	0.8465	0.5906	1/4-28UNF	0.189	0.169	0.531	1.5	0.295	14000	7850	0.21
SA205-16	1	2.0472	1.22	0.8465	0.5906	1/4-28UNF	0.189	0.169	0.531	1.5	0.295	14000	7850	0.2
SA206	30	62	35.7	23.8	16	M8X1	6	5	15.9	44.5	9	19450	11250	0.3
SA206-17	1-1/16	2.4409	1.406	0.937	0.6299	5/16-24UNF	0.236	0.197	0.626	1.752	0.354	19450	11250	0.32
SA206-18	1-1/8	2.4409	1.406	0.937	0.6299	5/16-24UNF	0.236	0.197	0.626	1.752	0.354	19450	11250	0.31
SA206-19	1-3/16	2.4409	1.406	0.937	0.6299	5/16-24UNF	0.236	0.197	0.626	1.752	0.354	19450	11250	0.3
SA206-20	1-1/4	2.4409	1.406	0.937	0.6299	5/16-24UNF	0.236	0.197	0.626	1.752	0.354	19450	11250	0.29
SA207	35	72	38.9	25.4	17	M8X1	6.8	5.6	17.5	55.6	9.5	25700	15200	0.42
SA207-20	1-1/4	2.8346	1.531	1	0.6693	5/16-24UNF	0.268	0.22	0.689	2.189	0.374	25700	15200	0.46
SA207-21	1-5/16	2.8346	1.531	1	0.6693	5/16-24UNF	0.268	0.22	0.689	2.189	0.374	25700	15200	0.43
SA207-22	1-3/8	2.8346	1.531	1	0.6693	5/16-24UNF	0.268	0.22	0.689	2.189	0.374	25700	15200	0.42
SA207-23	1-7/16	2.8346	1.531	1	0.6693	5/16-24UNF	0.268	0.22	0.689	2.189	0.374	25700	15200	0.41
SA208	40	80	43.7	30.2	18	M8X1	6.8	5.9	18.3	60.3	11	29500	18100	0.6
SA208-24	1-1/2	3.1496	1.721	1.189	0.7087	5/16-24UNF	0.268	0.232	0.72	2.374	0.433	29500	18100	0.58
SA208-25	1-9/16	3.1496	1.721	1.189	0.7087	5/16-24UNF	0.268	0.232	0.72	2.374	0.433	29500	18100	0.6
SA209	45	85	43.7	30.2	19	M8X1	6.8	6.1	18.3	63.5	11	32700	20900	0.64
SA209-26	1-5/8	3.3465	1.721	1.189	0.748	5/16-24UNF	0.268	0.24	0.72	2.5	0.433	32700	20900	0.64
SA209-27	1-11/16	3.3465	1.721	1.189	0.748	5/16-24UNF	0.268	0.24	0.72	2.5	0.433	32700	20900	0.64
SA209-28	1-3/4	3.3465	1.721	1.189	0.748	5/16-24UNF	0.268	0.24	0.72	2.5	0.433	32700	20900	0.64
SA210	50	90	43.7	30.2	20	M8X1	6.8	6.5	18.3	69.9	11	35000	23200	0.72
SA210-29	1-13/16	3.5433	1.721	1.189	0.7874	5/16-24UNF	0.268	0.265	0.72	2.752	0.433	35000	23200	0.72
SA210-30	1-7/8	3.5433	1.721	1.189	0.7874	5/16-24UNF	0.268	0.265	0.72	2.752	0.433	35000	23200	0.72
SA210-31	1-15/16	3.5433	1.721	1.189	0.7874	5/16-24UNF	0.268	0.265	0.72	2.752	0.433	35000	23200	0.72
SA210-32		3.5433	1.721	1.189	0.7874	5/16-24UNF	0.268	0.265	0.72	2.752	0.433	35000	23200	0.72
SA211	55	100	48.4	32.5	21	M10X1	8	7	20.7	76.2	12	43500	29200	1
SA211-32	2	3.937	1.906	1.2795	0.8268	3/8-24UNF	0.315	0.276	0.815	3	0.472	43500	29200	1
SA211-33	2-1/16	3.937	1.906	1.2795	0.8268	3/8-24UNF	0.315	0.276	0.815	3	0.472	43500	29200	1
SA211-34	2-1/8	3.937	1.906	1.2795	0.8268	3/8-24UNF	0.315	0.276	0.815	3	0.472	43500	29200	1
SA211-35	2-3/16	3.937	1.906	1.2795	0.8268	3/8-24UNF	0.315	0.276	0.815	3	0.472	43500	29200	1
SA212	60	110	53.1	37.2	22	M10X1	8	7.4	22.3	84.2	13.5	47700	32900	1.34
SA212-36	2-1/4	4.3307	2.091	1.4646	0.8661	3/8-24UNF	0.315	0.291	0.878	3.315	0.532	47700	32900	1.34
SA212-37	2-5/16	4.3307	2.091	1.4646	0.8661	3/8-24UNF	0.315	0.291	0.878	3.315	0.532	47700	32900	1.34
SA212-38	2-3/8	4.3307	2.091	1.4646	0.8661	3/8-24UNF	0.315	0.291	0.878	3.315	0.532	47700	32900	1.34
SA212-39	2-7/16	4.3307	2.091	1.4646	0.8661	3/8-24UNF	0.315	0.291	0.878	3.315	0.532	47700	32900	1.34
