PHSA

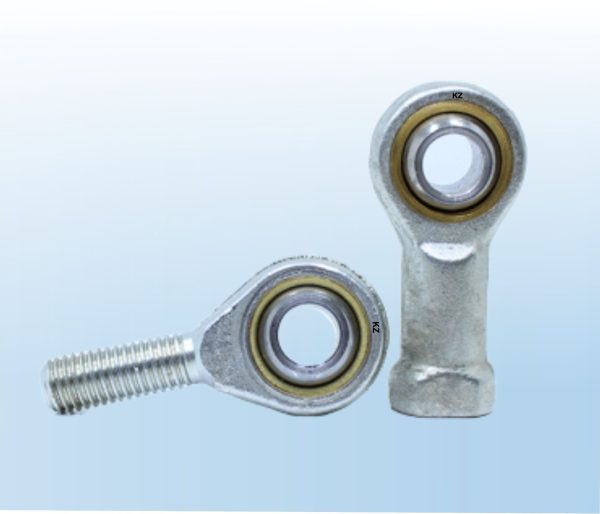

PHSA has integrated spherical bushing with a sliding spherical surface that can support a large radial load and a bidirectional axial load at the same time.
They are designed for slow swinging movement.
PHSA rod ends have either a female thread in the body or a male thread on the body, and they can be easily assembled onto machines.
These bushings are classified by sliding surface types: Insert type, die-cast type, and maintenance-free type.
- Compact self-aligning spherical bushings with the body
- Female thread in the body or a male thread on the body
- Design with an outer ring made of special copper alloy or economical design of the outer ring
- Maintenance-free types
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

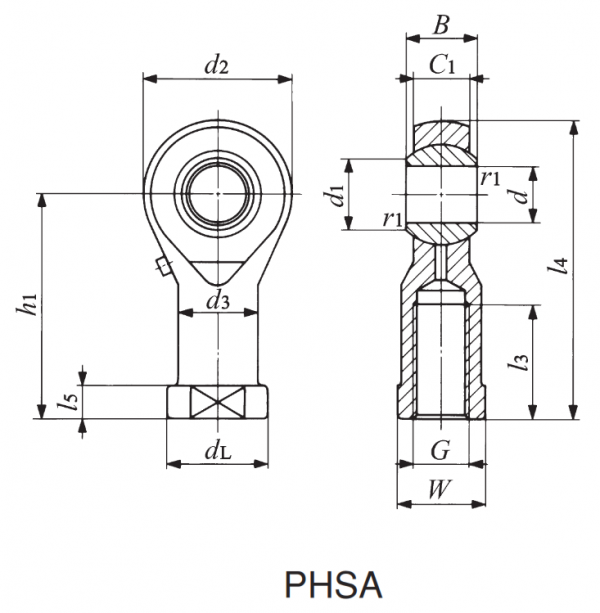

| Bearing Number | Inner Diameter (d) MM | Width (B) MM | d1 | Inch | Ball Diameter (MM) | Thread G | r 1 min | w | C1 (MM) | d3 | H1 | d2 | Static Load Capacity | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PHSA5 | 5 | 8 | 7.7 | 7/16 | 11.112 | M 5×0.8 | 0.2 | 9 | 6 | 9 | 27 | 17 | 5 470 | 0.017 |
| PHSA6 | 6 | 9 | 9 | 1/2 | 12.7 | M 6×1 | 0.2 | 11 | 6.75 | 10 | 30 | 19.5 | 6 760 | 0.025 |
| PHSA8 | 8 | 12 | 10.4 | 5/8 | 15.875 | M 8×1.25 | 0.2 | 14 | 9 | 12.5 | 36 | 24 | 10 200 | 0.045 |
| PHSA10 | 10 | 14 | 12.9 | 3/4 | 19.05 | M10×1.5 | 0.2 | 17 | 10.5 | 15 | 43 | 28 | 13 100 | 0.07 |
| PHSA12 | 12 | 16 | 15.4 | 7/8 | 22.225 | M12×1.75 | 0.2 | 19 | 12 | 17.5 | 50 | 32 | 16 400 | 0.105 |
| PHSA14 | 14 | 19 | 16.9 | 1 | 25.4 | M14×2 | 0.3 | 22 | 13.5 | 20 | 57 | 36 | 20 000 | 0.155 |
| PHSA16 | 16 | 21 | 19.4 | 1 1/8 | 28.575 | M16×2 | 0.3 | 22 | 15 | 22 | 64 | 40 | 23 900 | 0.19 |
| PHSA18 | 18 | 23 | 21.9 | 1 1/4 | 31.75 | M18×1.5 | 0.3 | 27 | 16.5 | 25 | 71 | 45 | 28 800 | 0.29 |
| PHSA20 | 20 | 25 | 24.4 | 1 3/8 | 34.925 | M20×1.5 | 0.3 | 30 | 18 | 27.5 | 77 | 49 | 33 400 | 0.4 |
| PHSA22 | 22 | 28 | 25.8 | 1 1/2 | 38.1 | M22×1.5 | 0.3 | 32 | 20 | 30 | 84 | 54 | 40 400 | 0.5 |
