PHS

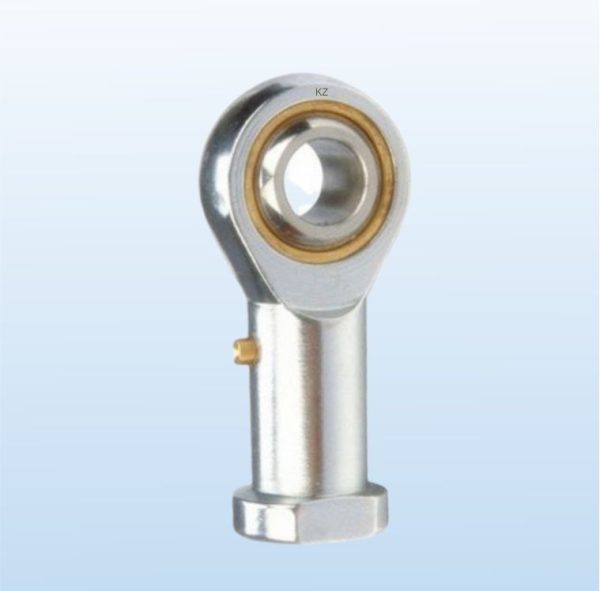

Rod ends consist of an eye-shaped head with an integral shank that forms a housing for a spherical plain bearing. As a rule, rod ends are available with left- or right-hand female (internal) or male (external) threads. By inserting a special steel alloy into a structural carbon steel holder or outer ring with a high-accuracy bearing steel ball as the inner ring, you can obtain smooth and abrasion-resistant, self-centering, rotation, and oscillating motion.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

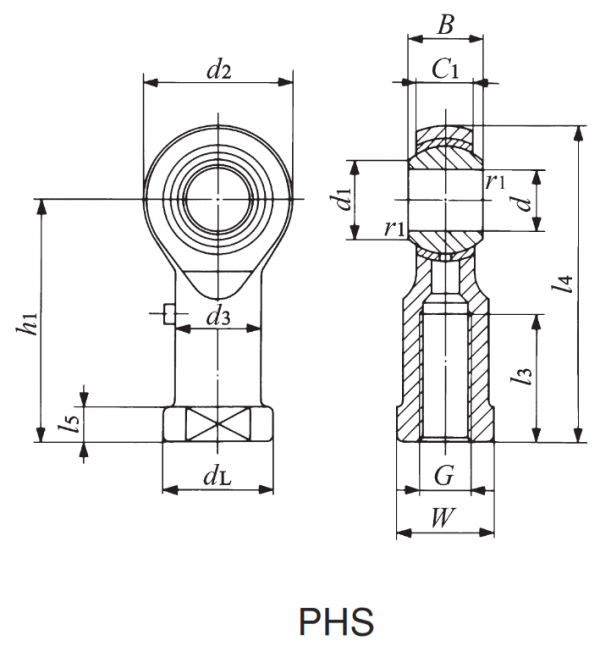

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | d1 | Inch | Ball Diameter (MM) | Thread G | w | C1 (MM) | d3 | H1 | Dynamic Load Capacity | Static Load Capacity | Weight (KG) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PHS3 | 3 | 12 | 6 | 5.2 | 0.2 | 5/16 | 7.938 | M 3×0.5 | 5.5 | 4.5 | 5 | 21 | 1 750 | 3 670 | 0.0057 |
| PHS4 | 4 | 14 | 7 | 6.5 | 0.2 | 3/8 | 9.525 | M 4×0.7 | 8 | 5.3 | 8 | 24 | 2 480 | 4 680 | 0.0119 |
| PHS5 | 5 | 16 | 8 | 7.7 | 0.2 | 7/16 | 11.112 | M 5×0.8 | 9 | 6 | 9 | 27 | 3 270 | 5 730 | 0.0165 |
| PHS6 | 6 | 18 | 9 | 9 | 0.2 | 1/2 | 12.7 | M 6×1 | 11 | 6.75 | 10 | 30 | 4 200 | 6 910 | 0.025 |
| PHS8 | 8 | 22 | 12 | 10.4 | 0.2 | 5/8 | 15.875 | M 8×1.25 | 14 | 9 | 12.5 | 36 | 7 010 | 10 200 | 0.043 |
| PHS10 | 10 | 26 | 14 | 12.9 | 0.2 | 3/4 | 19.05 | M10×1.5 | 17 | 10.5 | 15 | 43 | 9 810 | 13 300 | 0.072 |
| PHS12 | 12 | 30 | 16 | 15.4 | 0.2 | 7/8 | 22.225 | M12×1.75 | 19 | 12 | 17.5 | 50 | 13 100 | 16 900 | 0.107 |
| PHS14 | 14 | 34 | 19 | 16.9 | 0.2 | 1 | 25.4 | M14×2 | 22 | 13.5 | 20 | 57 | 16 800 | 20 900 | 0.16 |
| PHS16 | 16 | 38 | 21 | 19.4 | 0.2 | 1.125 | 28.575 | M16×2 | 22 | 15 | 22 | 64 | 21 000 | 25 400 | 0.21 |
| PHS18 | 18 | 42 | 23 | 21.9 | 0.2 | 1.25 | 31.75 | M18×1.5 | 27 | 16.5 | 25 | 71 | 25 700 | 30 200 | 0.295 |
| PHS20 | 20 | 46 | 25 | 24.4 | 0.2 | 1.375 | 34.925 | M20×1.5 | 30 | 18 | 27.5 | 77 | 30 800 | 35 500 | 0.38 |
| PHS22 | 22 | 50 | 28 | 25.8 | 0.2 | 1.5 | 38.1 | M22×1.5 | 32 | 20 | 30 | 84 | 37 400 | 41 700 | 0.49 |
| PHS25 | 25 | 60 | 31 | 29.6 | 0.6 | 1.6875 | 42.862 | M24×2 | 36 | 22 | 33.5 | 94 | 46 200 | 72 700 | 0.75 |
| PHS28 | 28 | 66 | 35 | 32.3 | 0.6 | 1.875 | 47.625 | M27×2 | 41 | 25 | 37 | 103 | 58 400 | 87 000 | 0.95 |
| PHS30 | 30 | 70 | 37 | 34.8 | 0.6 | 2 | 50.8 | M30×2 | 41 | 25 | 40 | 110 | 62 300 | 92 200 | 1.13 |
