UCFA UCFA201

Technical Details

Bore Diameter (mm) d	Outer Diameter (mm) D	Width (mm) B	Weight (Kg)
12		60	0.46

KZ SERIES : UCFA 201

We are the trusted manufacturer of high-quality UCFA Type UCFA201 Bearings. These are manufactured with premium-grade raw components under the surveillance of advanced technologies in order to provide flawless functioning. It is highly resistant to corrosion and allows smooth operations. UCFA Type Bearings are easy to install and need no regular maintenance. It is abrasion and waterproof. Offered bearings are devoted to serving a longer service life. Customers can avail of this incredible product from us in various specifications at cost-efficient rates.

Available in metric and inch sizes.

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send query Buy Now

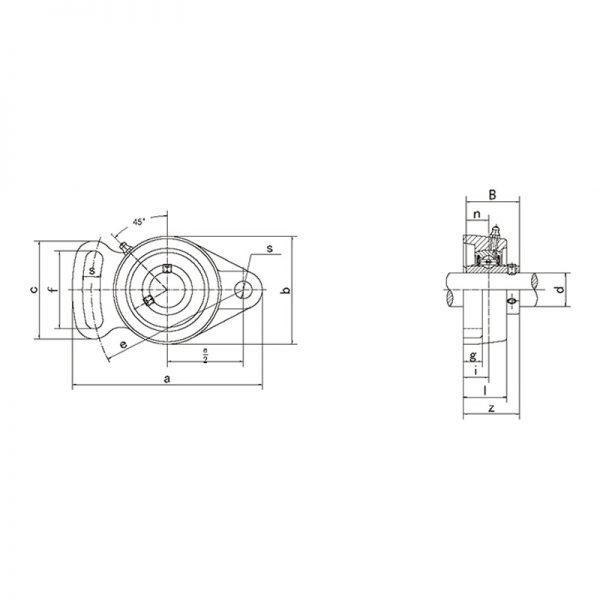

Bearing Number	Inner Diameter (d) MM	Width (B) MM	B Drawing	a	l	s	g	e	i	z	n	Bolt Size (MM)	f	c	Weight (KG)	Housing No.
UCFA201	12	60	31	98	25.5	10	12	78	15	33.3	12.7	M8	40	50	0.46	FA201
UCFA201-8	1/2	2-3/8	1.2205	3-55/64	1	25/64	15/32	3-5/64	19/32	1-5/16	0.5	5/16	1-37/64	1-31/32	0.45	FA201
UCFA202	15	2-3/8	1.2205	3-55/64	1	25/64	15/32	3-5/64	19/32	1-5/16	0.5	5/16	1-37/64	1-31/32	0.45	FA202
UCFA202-9	9/16	2-3/8	1.2205	3-55/64	1	25/64	15/32	3-5/64	19/32	1-5/16	0.5	5/16	1-37/64	1-31/32	0.45	FA202
UCFA202-10	5/8	2-3/8	1.2205	3-55/64	1	25/64	15/32	3-5/64	19/32	1-5/16	0.5	5/16	1-37/64	1-31/32	0.45	FA202
UCFA203	17	2-3/8	1.2205	3-55/64	1	25/64	15/32	3-5/64	19/32	1-5/16	0.5	5/16	1-37/64	1-31/32	0.44	FA203
UCFA203-11	11/16	2-3/8	1.2205	3-55/64	1	25/64	15/32	3-5/64	19/32	1-5/16	0.5	5/16	1-37/64	1-31/32	0.43	FA203
UCFA204	20	2-3/8	1.2205	3-55/64	1	25/64	15/32	3-5/64	19/32	1-5/16	0.5	5/16	1-37/64	1-31/32	0.42	FA204
UCFA204-12	3/4	2-3/8	1.2205	3-55/64	1	25/64	15/32	3-5/64	19/32	1-5/16	0.5	5/16	1-37/64	1-31/32	0.42	FA204
UCFA205	25	70	34.1	124	27	13	14	98	16	35.8	14.3	M10	51	65	0.65	FA205
UCFA205-13	13/16	2-3/4	1.3425	4-7/8	1-1/16	33/64	35/64	3-55/64	5/8	1-13/32	0.563	3/8	2-1/64	2-9/16	0.68	FA205
UCFA205-14	7/8	2-3/4	1.3425	4-7/8	1-1/16	33/64	35/64	3-55/64	5/8	1-13/32	0.563	3/8	2-1/64	2-9/16	0.67	FA205
UCFA205-15	15/16	2-3/4	1.3425	4-7/8	1-1/16	33/64	35/64	3-55/64	5/8	1-13/32	0.563	3/8	2-1/64	2-9/16	0.65	FA205
UCFA205-16	1	2-3/4	1.3425	4-7/8	1-1/16	33/64	35/64	3-55/64	5/8	1-13/32	0.563	3/8	2-1/64	2-9/16	0.64	FA205
UCFA206	30	83	38.1	141	31	13	14	115	18	40.2	15.9	M10	58	72	0.95	FA206
UCFA206-17	1-1/16	3-17/64	1.5	5-35/64	1-7/32	33/64	35/64	4-17/32	45/64	1-19/32	0.626	3/8	2-9/32	2-27/32	0.98	FA206
UCFA206-18	1-1/8	3-17/64	1.5	5-35/64	1-7/32	33/64	35/64	4-17/32	45/64	1-19/32	0.626	3/8	2-9/32	2-27/32	0.97	FA206
UCFA206-19	1-3/16	3-17/64	1.5	5-35/64	1-7/32	33/64	35/64	4-17/32	45/64	1-19/32	0.626	3/8	2-9/32	2-27/32	0.95	FA206
UCFA206-20	1-1/4	3-17/64	1.5	5-35/64	1-7/32	33/64	35/64	4-17/32	45/64	1-19/32	0.626	3/8	2-9/32	2-27/32	0.94	FA206
UCFA207	35	96	42.9	155	34	15	16	128	19	44.4	17.5	M12	66	82	1.33	FA207
UCFA207-20	1-1/4	3-25/32	1.689	6-7/64	1-11/32	19/32	5/8	5-3/64	3/4	1-3/4	0.689	7/16	2-19/32	3-15/64	1.4	FA207
UCFA207-21	1-5/16	3-25/32	1.689	6-7/64	1-11/32	19/32	5/8	5-3/64	3/4	1-3/4	0.689	7/16	2-19/32	3-15/64	1.37	FA207
UCFA207-22	1-3/8	3-25/32	1.689	6-7/64	1-11/32	19/32	5/8	5-3/64	3/4	1-3/4	0.689	7/16	2-19/32	3-15/64	1.34	FA207
UCFA207-23	1-7/16	3-25/32	1.689	6-7/64	1-11/32	19/32	5/8	5-3/64	3/4	1-3/4	0.689	7/16	2-19/32	3-15/64	1.31	FA207
UCFA208	40	105	49.2	171	38	15	16	142	21	51.2	19	M12	71	87	1.73	FA208
UCFA208-24	1-1/2	4-9/64	1.937	6-53/64	1-1/2	19/32	5/8	5-19/32	53/64	2-1/64	0.748	7/16	2-51/64	3-27/64	1.77	FA208
UCFA208-25	1-9/16	4-9/64	1.937	6-53/64	1-1/2	19/32	5/8	5-19/32	53/64	2-1/64	0.748	7/16	2-51/64	3-27/64	1.74	FA208
UCFA209	45	111	49.2	179	40	17	18	146	22	52.2	19	M14	72	90	1.98	FA209
UCFA209-26	1-5/8	4-3/8	1.937	7-3/64	1-37/64	43/64	45/64	5-3/4	55/64	2-1/16	0.748	1/2	2-53/64	3-35/64	2.08	FA209
UCFA209-27	1-11/16	4-3/8	1.937	7-3/64	1-37/64	43/64	45/64	5-3/4	55/64	2-1/16	0.748	1/2	2-53/64	3-35/64	2.04	FA209
UCFA209-28	1-3/4	4-3/8	1.937	7-3/64	1-37/64	43/64	45/64	5-3/4	55/64	2-1/16	0.748	1/2	2-53/64	3-35/64	2	FA209
UCFA210	50	116	51.6	189	40	17	18	155	22	54.6	19	M14	76	94	2.12	FA210
UCFA210-29	1-13/16	4-9/16	2.0315	7-7/16	1-37/64	43/64	45/64	6-7/64	55/64	2-5/32	0.748	1/2	3	3-45/64	2.24	FA210
UCFA210-30	1-7/8	4-9/16	2.0315	7-7/16	1-37/64	43/64	45/64	6-7/64	55/64	2-5/32	0.748	1/2	3	3-45/64	2.19	FA210
UCFA210-31	1-15/16	4-9/16	2.0315	7-7/16	1-37/64	43/64	45/64	6-7/64	55/64	2-5/32	0.748	1/2	3	3-45/64	2.14	FA210
UCFA210-32	2	4-9/16	2.0315	7-7/16	1-37/64	43/64	45/64	6-7/64	55/64	2-5/32	0.748	1/2	3	3-45/64	2.1	FA210
UCFA211	55	133	55.6	216	44	17	20	182	25	58.4	22.2	M14	86	104	3.11	FA211
UCFA211-32	2	5-51/64	2.189	8-1/2	1-47/64	43/64	25/32	7-11/64	63/64	2-5/16	0.874	1/2	3-25/64	4-3/32	3.26	FA211
UCFA211-33	2-1/16	5-51/64	2.189	8-1/2	1-47/64	43/64	25/32	7-11/64	63/64	2-5/16	0.874	1/2	3-25/64	4-3/32	3.2	FA211
UCFA211-34	2-1/8	5-51/64	2.189	8-1/2	1-47/64	43/64	25/32	7-11/64	63/64	2-5/16	0.874	1/2	3-25/64	4-3/32	3.16	FA211
UCFA211-35	2-3/16	5-51/64	2.189	8-1/2	1-47/64	43/64	25/32	7-11/64	63/64	2-5/16	0.874	1/2	3-25/64	4-3/32	3.09	FA211
UCFA212	60	140	65.1	240	48	19	20	202	29	68.7	25.4	M16	100	118	3.76	FA212
UCFA212-36	2-1/4	5-1/2	2.563	9-29/64	1-7/8	3/4	25/32	7-61/64	1-9/64	2-23/32	1	5/8	3-15/16	4-41/64	3.89	FA212
UCFA212-37	2-5/16	5-1/2	2.563	9-29/64	1-7/8	3/4	25/32	7-61/64	1-9/64	2-23/32	1	5/8	3-15/16	4-41/64	3.81	FA212
UCFA212-38	2-3/8	5-1/2	2.563	9-29/64	1-7/8	3/4	25/32	7-61/64	1-9/64	2-23/32	1	5/8	3-15/16	4-41/64	3.74	FA212
UCFA212-39	2-7/16	5-1/2	2.563	9-29/64	1-7/8	3/4	25/32	7-61/64	1-9/64	2-23/32	1	5/8	3-15/16	4-41/64	3.67	FA212
UCFA213	65	155	65.1	250	50	19	20	210	30	69.7	25.4	M16	102	122	4.7	FA213
UCFA213-40	2-1/2	6-3/32	2.563	9-27/32	1-31/32	3/4	25/32	8-17/64	1-3/16	2-3/4	1	5/8	4-1/64	4-51/64	4.79	FA213
UCFA213-41	2-9/16	6-3/32	2.563	9-27/32	1-31/32	3/4	25/32	8-17/64	1-3/16	2-3/4	1	5/8	4-1/64	4-51/64	4.7	FA213
