SBPFL SBPFL201-8
Technical Details
| Bore Diameter (mm) d | Outer Diameter (mm) D | Width (mm) B | Weight (Kg) |
|---|---|---|---|
| 1/2 | 0.8661 | 0.18 |
KZ SERIES :SBPFL 201, SBPFL 201-8, SBPFL 205, SBPFL 205-13, SBPFL 208-25 ,SBPFL206
SBPFL201-8 Lightweight diamond flanged unit for light loads made from the combination of a lightweight bearing and a press machined steel plate bearing box.
- Recommended for light applications
- 2- Bolt
- Set Screw Type
- Pressed Steel
- Comes with a pre-mounted Insert Bearing
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

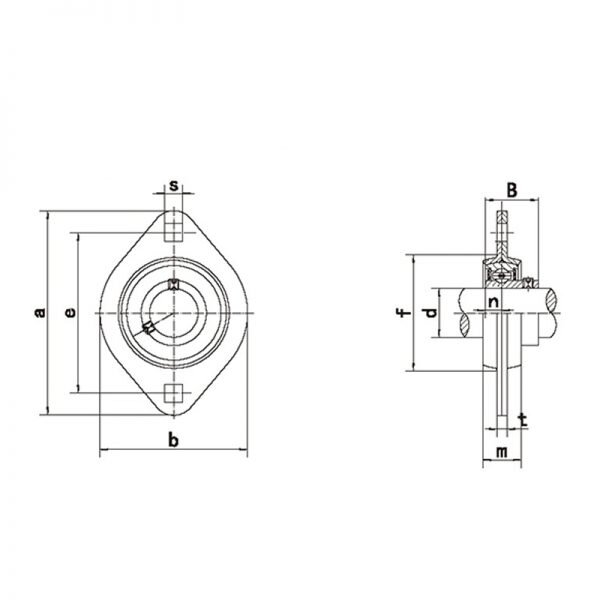

| Bearing Number | Inner Diameter (d) MM | Width (B) MM | B Drawing | a | e | n | Bolt Size (MM) | t | F Min | S | Moment (MM) | Weight (KG) | Housing No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBPFL201-8 | 1/2 | 0.8661 | 2-21/64 | 3-3/16 | 2-1/2 | 0.2362 | 1/4 | 0.157 | 1-59/64 | 9/32 | 9/16 | 0.18 | PFL204 |
| SBPFL202 | 15 | 0.8661 | 2-21/64 | 3-3/16 | 2-1/2 | 0.2362 | 1/4 | 0.157 | 1-59/64 | 9/32 | 9/16 | 0.18 | PFL204 |
| SBPFL202-9 | 9/16 | 0.8661 | 2-21/64 | 3-3/16 | 2-1/2 | 0.2362 | 1/4 | 0.157 | 1-59/64 | 9/32 | 9/16 | 0.18 | PFL204 |
| SBPFL202-10 | 5/8 | 0.8661 | 2-21/64 | 3-3/16 | 2-1/2 | 0.2362 | 1/4 | 0.157 | 1-59/64 | 9/32 | 9/16 | 0.18 | PFL204 |
| SBPFL203 | 17 | 0.8661 | 2-21/64 | 3-3/16 | 2-1/2 | 0.2362 | 1/4 | 0.157 | 1-59/64 | 9/32 | 9/16 | 0.18 | PFL204 |
| SBPFL203-11 | 11/16 | 0.8661 | 2-21/64 | 3-3/16 | 2-1/2 | 0.2362 | 1/4 | 0.157 | 1-59/64 | 9/32 | 9/16 | 0.18 | PFL204 |
| SBPFL204 | 20 | 25 | 67 | 90 | 71.5 | 7 | M8 | 4 | 56 | 9 | 16 | 0.22 | PFL204 |
| SBPFL204-12 | 3/4 | 0.9843 | 2-41/64 | 3-35/64 | 2-13/16 | 0.2756 | 5/16 | 0.157 | 2-13/64 | 23/64 | 5/8 | 0.22 | PFL204 |
| SBPFL205 | 25 | 27 | 71 | 95 | 76 | 7.5 | M8 | 4 | 60 | 9 | 18 | 0.25 | PFL205 |
| SBPFL205-13 | 13/16 | 1.063 | 2-51/64 | 3-3/4 | 2-63/64 | 0.2953 | 5/16 | 0.157 | 2-23/64 | 23/64 | 23/32 | 0.25 | PFL205 |
| SBPFL205-14 | 7/8 | 1.063 | 2-51/64 | 3-3/4 | 2-63/64 | 0.2953 | 5/16 | 0.157 | 2-23/64 | 23/64 | 23/32 | 0.25 | PFL205 |
| SBPFL205-15 | 15/16 | 1.063 | 2-51/64 | 3-3/4 | 2-63/64 | 0.2953 | 5/16 | 0.157 | 2-23/64 | 23/64 | 23/32 | 0.25 | PFL205 |
| SBPFL205-16 | 1 | 1.063 | 2-51/64 | 3-3/4 | 2-63/64 | 0.2953 | 5/16 | 0.157 | 2-23/64 | 23/64 | 23/32 | 0.25 | PFL205 |
| SBPFL206 | 30 | 30 | 84 | 113 | 90.5 | 8 | M10 | 5.2 | 71 | 11 | 18 | 0.4 | PFL206 |
| SBPFL206-17 | 1-1/16 | 1.1811 | 3-5/16 | 4-7/16 | 3-9/16 | 0.315 | 3/8 | 0.205 | 2-51/64 | 7/16 | 23/32 | 0.4 | PFL206 |
| SBPFL206-18 | 1-1/8 | 1.1811 | 3-5/16 | 4-7/16 | 3-9/16 | 0.315 | 3/8 | 0.205 | 2-51/64 | 7/16 | 23/32 | 0.4 | PFL206 |
| SBPFL206-19 | 1-3/16 | 1.1811 | 3-5/16 | 4-7/16 | 3-9/16 | 0.315 | 3/8 | 0.205 | 2-51/64 | 7/16 | 23/32 | 0.4 | PFL206 |
| SBPFL206-20 | 1-1/4 | 1.1811 | 3-5/16 | 4-7/16 | 3-9/16 | 0.315 | 3/8 | 0.205 | 2-51/64 | 7/16 | 23/32 | 0.4 | PFL206 |
| SBPFL207 | 35 | 32 | 94 | 122 | 100 | 8.5 | M10 | 5.2 | 81 | 11 | 20 | 0.53 | PFL207 |
| SBPFL207-20 | 1-1/4 | 1.2598 | 3-45/64 | 4-13/16 | 3-15/16 | 0.3346 | 3/8 | 0.205 | 3-3/16 | 7/16 | 25/32 | 0.53 | PFL207 |
| SBPFL207-21 | 1-5/16 | 1.2598 | 3-45/64 | 4-13/16 | 3-15/16 | 0.3346 | 3/8 | 0.205 | 3-3/16 | 7/16 | 25/32 | 0.53 | PFL207 |
| SBPFL207-22 | 1-3/8 | 1.2598 | 3-45/64 | 4-13/16 | 3-15/16 | 0.3346 | 3/8 | 0.205 | 3-3/16 | 7/16 | 25/32 | 0.53 | PFL207 |
| SBPFL207-23 | 1-7/16 | 1.2598 | 3-45/64 | 4-13/16 | 3-15/16 | 0.3346 | 3/8 | 0.205 | 3-3/16 | 7/16 | 25/32 | 0.53 | PFL207 |
| SBPFL208 | 40 | 34 | 100 | 148 | 119 | 9 | M12 | 6.8 | 91 | 13.5 | 21 | 0.75 | PFL208 |
| SBPFL208-24 | 1-1/2 | 1.3386 | 3-15/16 | 5-13/16 | 4-11/16 | 0.3543 | 1/2 | 0.268 | 3-37/64 | 17/32 | 13/16 | 0.75 | PFL208 |
| SBPFL208-25 | 1-9/16 | 1.3386 | 3-15/16 | 5-13/16 | 4-11/16 | 0.3543 | 1/2 | 0.268 | 3-37/64 | 17/32 | 13/16 | 0.75 | PFL208 |
