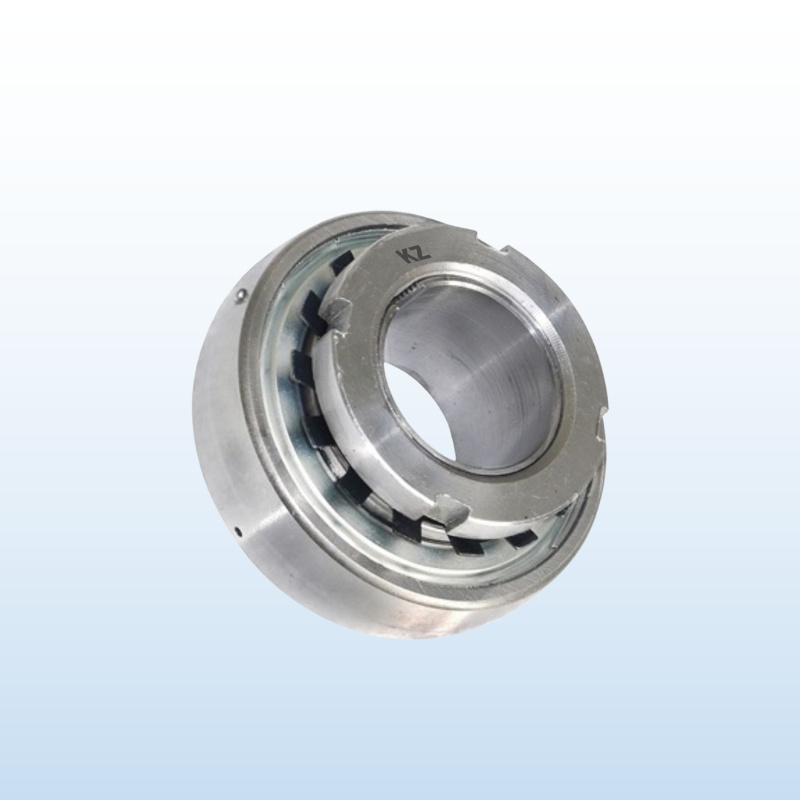

Agriculture Ball bearing with Adapter sleeves (harrow disc)
Agriculture bearings with adapter sleeves for harrow discs are used in tillage equipment, specifically in disc harrows. These bearings are placed in the disc assembly, where they support the rotation of the harrow discs, ensuring smooth operation and durability during soil cultivation and preparation. They help maintain alignment and reduce friction, allowing the discs to cut through soil effectively.
KZ Series: 1680204, 1680205, 1680206, 1680207
Category: Agriculture Ball bearing with Adapter sleeves (harrow disc)/ Agriculture Bearing
Quality: ABEC 1, ABEC 2.
Application and industry: disc harrows, seeders, harvesters, and rice transplanters.

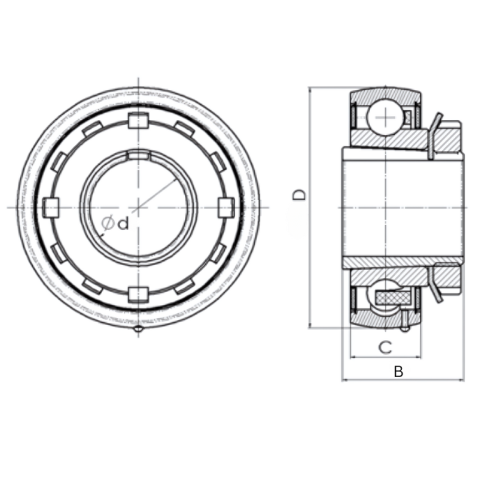

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | Basic Load Rating (N) Dyn. C | Basic Load Rating (N) Stat. C0 | LIMITTING SPEED ( R/MIN ) LUBRICATION Grease | LIMITTING SPEED ( R/MIN ) LUBRICATION Oil | Weight (KG) |
|---|---|---|---|---|---|---|---|---|
| 1680204 | 20 | 52 | 29 | 0.23 | ||||
| 1680205 | 25 | 62 | 31 | 0.34 | ||||
| 1680206 | 30 | 72 | 35 | 0.48 | ||||
| 1680207 | 35 | 80 | 36 | 0.617 | ||||
| 1680208 | 40 | 85 | 39 | 0.655 | ||||
| 1680209 | 50 | 90 | 42 | 0.748 | ||||
| 1680210 | 50 | 100 | 46 | 1.16 | ||||

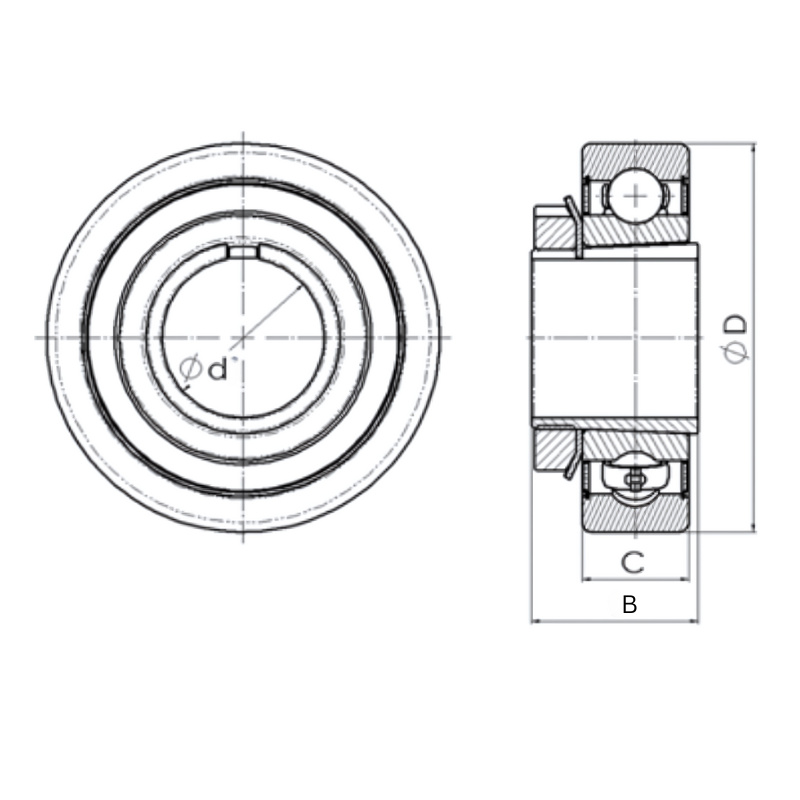

| 380708 | 40 | 85 | 35 | 0.69 |
