DAC Wheel Bearings

KZ SERIES :DAC205000206, DAC25520037, DAC25520043, DAC25550045, DAC25620048

DAC Wheel Bearings

SEALS/SHIELDS : ZZ, 2RS

MATERIAL : Chrome Steel SAE52100/100Cr6/GCr15

QUALITY : ABEC 1, ABEC3

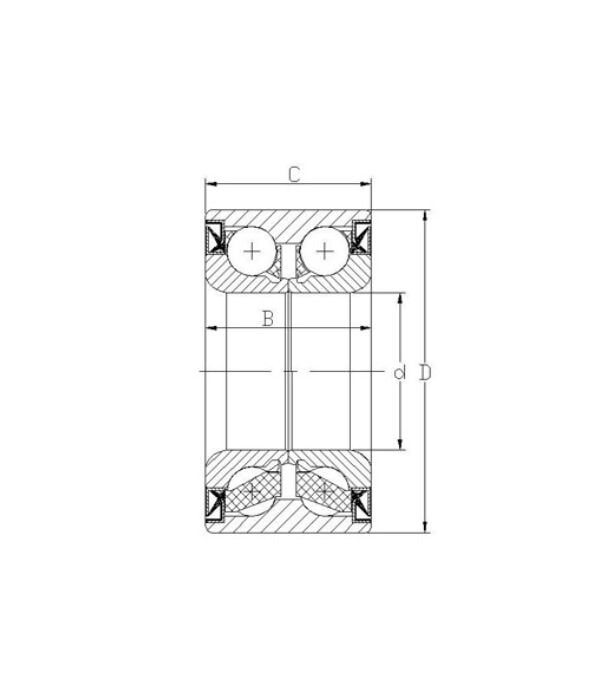

DAC wheel bearings is a double row angular contact ball bearing incorporating an integral outer ring and two separable inner rings, which is available either with seals or without seals. DAC wheel bearings are used in automotive axles at the hub used for load-bearing and rotating parts to provide accurate guidance, both axial load and radial load, a car load and rotational important part. According to the type of rolling elements, it is divided into angular contact ball bearings and angular contact roller bearings. DAC wheel bearings have been designed with axial play in mind, so no clearance adjustment is required for installation.

Applications and industry: AUTOMOTIVE

Send Query WhatsApp Us
Bearing Number Inner Diameter (d) MM Outer Diameter (D) MM Height H2 Basic Load Rating (N) Stat. C0 Weight (KG)
DAC20420030/29 20 42 30 29 0.18
DAC205000206 20 50 20.6 20.6 0.17
DAC255200206 25 52 20.6
DAC25520037 25 52 37 37 0.31
DAC25520040 25 52 40 40 0.35
DAC25520042 25 52 42 42 0.36
DAC25520043 25 52 43 43 0.36
DAC25520045/43 25 52 45 43 0.35
DAC25550043 25 55 43 43 0.41
DAC25550045 25 55 45 45 0.46
DAC255600206/29 25 56 20.6 29 0.28
DAC25560032 25 56 32 32 0.34
DAC25600029/206 25 60 29 20.6 0.33
DAC25600045 25 60 45 45 0.33
DAC25620028/17 25 62 28 17 0.19
DAC25620048 25 62 48 48 0.33
DAC25720043 25 72 43 43 0.88
DAC27520045/43 27 52 45 43 0.35
DAC27520050 27 52 50 50 0.38
DAC27530043 27 53 43 43 0.5
DAC27600050 27 60 50 50 0.56
DAC28580042 28 58 42 42 0.47
DAC28580044 28 58 44 44 0.47
DAC28610042 28 61 42 42 0.56
DAC29530037 29 53 37 37 0.35
DAC30550026 30 55 26 26 0.32
DAC30550032 30 55 32 32 0.29
DAC30580042 30 58 42 42 0.4
DAC30600037 30 60 37 37 0.42
DAC30600337 30 60.03 37
DAC30600043/37 30 60 43 37 0.12
DAC30620038 30 62 38 38 0.52
DAC30630042 30 63 42 42 0.57
DAC30630342 30 63.03 42 42 0.56
DAC30640042 30 64 42 42 0.49
DAC30670024 30 67 24 24 0.34
DAC30680045 30 68 45 45 0.73
DAC32700038 32 70 38 38 0.62
DAC32720034 32 72 34 34 0.6
DAC32720045 32 72 45 45 0.6
DAC32720345 32 72.03 45 45 0.6
DAC32730054 32 73 54 54 0.98
DAC34620037 34 62 37
DAC34640034 34 64 34 34 0.43
DAC34640037 34 64 37 37 0.47
DAC34660037 34 66 37 37 0.5
DAC34670037 34 67 37 37 0.44
DAC34680037 34 68 38 37 0.55
DAC356180040 35 61.8 40 40 0.43
DAC35620031 35 62 31 31 0.35
DAC35620040 35 62 40 40 0.45
DAC35640037 35 64 37 37 0.41
DAC35650035 35 65 35 35 0.4
DAC35650037 35 65 37 37 0.51
DAC35660032 35 66 32 32 0.42
DAC35660033 35 66 33 33 0.43
DAC35660037 35 66 37 37 0.48
DAC35670042 35 67 42 42 0.45
DAC35680037 35 68 37
DAC35680045 35 68 45 45 0.52
DAC35680233/30 35 68.02 33 30 0.47
DAC35720027 35 72 27 27 0.43
DAC35720228 35 72.02 28 28 0.49
DAC35720033 34.99 72 33 33 0.58
DAC35720233/31 34.99 72.02 33
DAC35720433 34.99 72.04 33 33 0.58
DAC35720034 34.99 72 34
DAC35720434 34.99 72.04 34 34 0.58
DAC35720045 34.99 72 45
DAC35740030 34.99 74 30 30 0.49
DAC35760054 34.99 76 54 54 0.95
DAC35770042 34.99 77 42 42 0.86
DAC35800026/21 34.99 80 26 21 0.86
DAC36640042 36 64 42 42 0.46
DAC36680033 36 68 33 33 0.47
DAC36720033/28 36 72 33 28 0.46
DAC36720034 36 72 34 34 0.57
DAC36720042 36 72 42 42 0.72
DAC36760029/27 36 76 29.2 27 0.55
DAC37680045 37 68 45 45 0.72
DAC37720033 37 72 33 33 0.5
DAC37720233 37 72.02 33 33 0.5
DAC37720037 37 72 37
DAC37720237 37 72.02 37 37 0.59
DAC37720437 37 72.04 37 37 0.59
DAC37720052/45 37 72 52 45 0.7
DAC37740045 37 74 45 45 0.79
DAC38640036/33 38 64 36 33 0.43
DAC38650050 38 65 50 50 0.56
DAC38650052/48 38 65 52 48 0.49
DAC38680037 38 68 37 37 0.54
DAC38700037 38 70 37 37 0.56
DAC38700038 38 70 38 38 0.57
DAC38700040 38 70 40 40 0.58
DAC38710033/30 38 71 33 30 0.5
DAC38710039 38 71 39 39 0.62
DAC38720034 38 72 34 34 0.54
DAC38720036/33 38 72 36 33 0.62
DAC38720236/33 38 72.02 36
DAC38720040 38 72 40 40 0.63
DAC38730040 38 73 40 40 0.67
DAC38740036/33 38 74 36 33 0.6
DAC38740236/33 38 74.02 36 33 0.59
DAC38740040 38 74 40 40 0.69
DAC38740050 38 74 50 50 0.85
DAC38740450 38 74.04 50 50 0.85
DAC38800036/33 38 80 36 33 0.79
DAC381700037 38.1 70 37
DAC39680037 39 68 37
DAC39680637 39 68.06 37 37 0.48
DAC39680737 39 68.07 37 37 0.48
DAC39680837 39 68.08 37 37 0.48
DAC39720037 39 72 37 37 0.6
DAC39720637 39 72.06 37 37 0.6
DAC39740034 39 74 34 34 0.6
DAC39740036/34 39 74 36 34 0.6
DAC39740038 39 74 38 38 0.65
DAC39740039 39 74 39 39 0.66
DAC39/41750037 75 37 37 0.62
DAC40680037 40 68 37 37 0.62
DAC40680042 40 68 42 42 0.51
DAC40700043 40 70 43 43 0.63
DAC40720036 40 72 36 36 0.54
DAC40720037 40 72 37 37 0.55
DAC40720637 40 72.06 37 37 0.55
DAC40730055 40 73 55 55 0.58
DAC40740036/34 40 74 36 34 0.58
DAC40740036 40 74 36 36 0.62
DAC40740040 40 74 40 40 0.66
DAC40740042 40 74 42 42 0.71
DAC40750037 40 75 37 37 0.62
DAC40760033/28 40 76 33 28 0.54
DAC40760041/38 40 76 41 38 0.7
DAC40800036/34 40 80 36 34 0.74
DAC408000302 40 80 30.2 30.2 0.68
DAC40800031 40 80 31 31 0.65
DAC408000381 40 80 38.1 38.1 0.8
DAC40800036 40 80 36 36 0.74
DAC40800040 40 80 40 40 0.86
DAC40800045/44 40 80 45 44 0.89
DAC40820040 40 82 40 40 0.8
DAC408402538 40 84.025 38 38 0.97
DAC40840034 40 84 34 34 0.94
DAC40840038 40 84 38 38 0.96
DAC40840040 40 84 40 40 0.98
DAC401080032/17 40 108 32 17 1.04
DAC41680040/35 41 68 40 35 1.06
DAC42720038 42 72 38 38 0.56
DAC42720038/35 42 72 38 35 0.52
DAC42750037 42 75 37
DAC42760033 42 76 33 33 0.65
DAC42760038/35 42 76 38 35 0.62
DAC42760039 42 76 39 39 0.62
DAC42760038 42 76 38 38 0.56
DAC42760037/35 42 76 37 35 0.56
DAC42760040/37 42 76 40 37 0.64
DAC42770039 42 77 39 39 0.65
DAC42780038 42 78 38 38 0.7
DAC42780040 42 78 40 40 0.66
DAC42780041/38 42 78 41
DAC42780045 42 78 45 0.76
DAC428000302 42 80 30.2 30.2 0.78
DAC42800036/34 42 80 36 34 0.81
DAC42800037 42 80 37 37 0.7
DAC42800038 42 80 38 38 0.75
DAC42800042 42 80 42 42 0.81
DAC42800342 42 80.03 42 42 0.82
DAC42800045 42 80 45 45 0.86
DAC42800045 42 80 42 45 0.86
DAC42820036 42 82 36
DAC42820037 42 82 37 37 0.79
DAC42840036 42 84 36 36 0.84
DAC42840037 42 84 37 37 0.91
DAC42840039 42 84 39 39 0.93
DAC4284030039 42 84.03 39 39 0.93
DAC43600050/45 43 60 50 45 0.86
DAC43760043 43 76 43 43 0.71
DAC43770042/38 43 77 42 38 0.64
DAC43790041/38 43 79 41 38 0.9
DAC43790045 43 79 45 45 0.84
DAC43800038 43 80 38 38 0.75
DAC43800040 43 80 40 40 1.15
DAC43800050/45 43 80 50 45 0.96
DAC43820045 43 82 45 45 0.96
DAC43840044 84 44 44 0.85
DAC43850037 43 85 37 37 0.8
DAC43/45820037 82 37 37 0.76
DAC43/45008537 85 37 37 0.8
DAC44825037 44 82.5 37 37 0.73
DAC44840042/40 44 84 42 40 0.9
DAC44850023 44 85 23 23 0.54
DAC45800045 45 80 45 45 0.8
DAC45800045/44 45 80 45 44 0.95
DAC45820037 45 82 45 37 0.76
DAC45830045 45 83 45 45 0.6
DAC45840039 45 84 39 39 0.85
DAC45840041/39 45 84 41 39 0.85
DAC45840042/40 45 84 42
DAC45840042 45 84 42 42 0.9
DAC45840045 45 84 45 45 0.98
DAC45840053 45 84 53 53 0.99
DAC458500302 45 85 30.2 30.2 0.63
DAC45850041 45 85 41 41 0.89
DAC45850048/43 45 85 48 43 1
DAC45850051 45 85 51 51 1
DAC45880039 45 88 39 39 0.9
DAC45880045 45 88 45 45 1.15
DAC47810053 47 81 53 53 0.95
DAC47850045 47 85 45 45 0.9
DAC47880055 47 88 55 55 1.5
DAC48820037/33 48 82 37 33 0.82
DAC48890042 48 89 42 42 0.91
DAC48890044/42 48 89 44 42 1.07
DAC49840043 49 84 43 43 0.84
DAC49840048 49 84 48 48 0.89
DAC49840050 49 84 50 50 1
DAC49880046 49 88 46 46 1.05
DAC49900045 49 90 45 45 1.12
DAC50900034 50 90 34 34 0.83
DAC50900040 50 90 40 40 0.98
DAC54960051 54 96 51 51 1.1
DAC55900060 55 90 60 60 1.5
DAC56880040/35 55 88 40 35 1.5
DAC55900052/40 55 90 52 40 1.04
DAC55900054/39 55 90 54 39 1
DAC55900060 55 90 60 60 1.5
