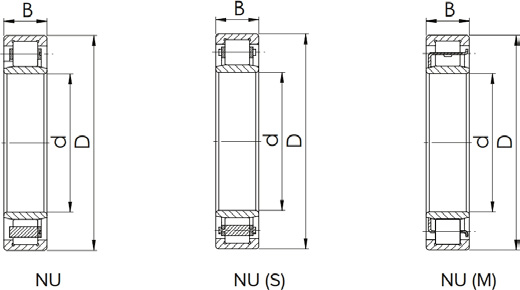

  • NU Series Line Drawing | KG Bearing

NU Series

KZ SERIES : NU1006, NU202, NU2203, NU2304, NU303, NU406.

Cylindrical Roller Bearing

The NU Series bearings carry radial load only and can accommodate both expansion and contraction. The relative axial displacement of one ring to the other occurs with minimum friction while the bearing is rotating. Type RIU and RU bearings may be used in one or two positions for shaft support if other means of axial location are provided. The outer ring has two integral ribs while the inner ring has a cylindrical outer diameter without ribs.

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

SERIES : NU1006, NU202, NU2203, NU2304, NU303, NU406,

Send Query WhatsApp Us
Bearing Number Inner Diameter (d) MM Outer Diameter (D) MM Width (B) MM Basic Load Rating (N) Dyn. C Basic Load Rating (N) Stat. C0 LIMITTING SPEED ( R/MIN ) LUBRICATION Grease LIMITTING SPEED ( R/MIN ) LUBRICATION Oil Weight (KG)
NU1006 30 55 13 18700 18400 13000 15000 0.12
NU1007 35 62 14 22600 23200 11000 13000 0.18
NU1008 40 68 15 24900 25700 10000 12000 0.22
NU1009 45 75 16 31000 33800 9200 11000 0.29
NU1010 50 80 16 33600 36800 8400 9900 0.31
NU1011 55 90 18 37400 43800 7600 8900 0.45
NU1012 60 95 18 42100 50000 7000 8300 0.48
NU1013 65 100 18 43300 52900 6600 7800 0.51
NU1014 70 110 20 57900 70400 6100 7200 0.7
NU1015 75 115 20 63600 78100 5700 6800 0.74
NU1016 80 125 22 69300 86400 5300 6300 1
NU1017 85 130 22 71400 91200 5100 6000 1.04
NU1018 90 140 24 84700 109000 4700 5600 1.34
NU1019 95 145 24 87200 115000 4600 5300 1.4
NU1020 100 150 24 91000 120000 4300 5100 1.46
NU1021 105 160 26 108000 149000 4100 4800 1.85
NU1022 110 170 28 134000 171000 3900 4500 2.31
NU1024 120 180 28 137000 181000 3500 4200 2.47
NU1026 130 200 33 171000 238000 3200 3800 3.77
NU1028 140 210 33 175000 250000 3000 3600 4
NU1030 150 225 35 201000 281000 2800 3300 4.83
NU1032 160 240 38 236000 330000 2600 3000 5.93
NU1034 170 260 42 276000 400000 2400 2800 7.9
NU1036 180 280 46 356000 503000 2200 2600 10.5
NU1038 190 290 46 366000 530000 2100 2500 10.9
NU1040 200 310 51 388000 582000 1900 2300 14.1
NU1044 220 340 56 507000 748000 1700 2000 18.5
NU202 15 35 11 12700 10400 19000 22000 0.05
NU203 17 40 12 17600 14600 17000 20000 0.07
NU204 20 47 14 25700 22600 15000 18000 0.11
NU205 25 52 15 29300 27700 13000 15000 0.14
NU206 30 62 16 39100 37400 11000 13000 0.21
NU207 35 72 17 50200 50200 9300 11000 0.31
NU208 40 80 18 55700 55400 8300 9900 0.38
NU209 45 85 19 63100 66400 7600 9200 0.44
NU210 50 90 20 66100 71900 7100 8500 0.5
NU211 55 100 21 86400 98700 6400 7700 0.65
NU212 60 110 22 97700 107000 5800 6900 0.83
NU213 65 120 23 108000 119000 5300 6400 1.05
NU214 70 125 24 119000 137000 5000 6000 1.16
NU215 75 130 25 130000 156000 4800 5700 1.29
NU216 80 140 26 139000 167000 4400 5300 1.56
NU217 85 150 28 167000 199000 4200 5000 1.94
NU218 90 160 30 182000 217000 3900 4700 2.38
NU219 95 170 32 221000 265000 3700 4400 2.92
NU220 100 180 34 250000 306000 3500 4200 3.52
NU221 105 190 36 201000 241000 3300 3900 4
NU222 110 200 38 293000 365000 3100 3700 4.9
NU224 120 215 40 336000 421000 2800 3400 5.85
NU226 130 230 40 364000 453000 2600 3200 6.6
NU228 140 250 42 392000 514000 2400 2900 8.5
NU230 150 270 45 448000 594000 2200 2600 10.7
NU232 160 290 48 498000 666000 2000 2400 14.8
NU234 170 310 52 603000 802000 1900 2000 18.6
NU236 180 320 52 626000 852000 1800 2100 19.3
NU238 190 340 55 694000 954000 1700 2000 23.3
NU240 200 360 58 766000 1060000 1600 1900 27.2
NU244 220 400 65 766000 1080000 1400 1700 38.5
NU2203 17 40 16 24000 22000 16000 18500 0.09
NU2204 20 47 18 30600 28300 13000 18000 0.15
NU2205 25 52 18 34900 34600 12000 15000 0.17
NU2206 30 62 20 48900 49800 9700 13000 0.26
NU2207 35 72 23 61600 65300 8300 11000 0.4
NU2208 40 80 23 72300 77600 7400 9900 0.49
NU2209 45 85 23 76100 84600 6900 9200 0.54
NU2210 50 90 23 79700 91500 6400 8500 0.58
NU2211 55 100 25 101000 122000 5800 7700 0.81
NU2212 60 110 28 131000 157000 5200 6900 1.1
NU2213 65 120 31 149000 181000 4800 6400 1.45
NU2214 70 125 31 156000 194000 4500 6000 1.53
NU2215 75 130 31 162000 207000 4300 5700 1.61
NU2216 80 140 33 186000 243000 4000 5300 2.03
NU2217 85 150 36 218000 279000 3700 5000 2.53
NU2218 90 160 40 242000 314000 3500 4700 3.21
NU2219 95 170 43 287000 371000 3300 4400 3.93
NU2220 100 180 46 334000 444000 3100 4200 4.82
NU2222 110 200 53 384000 517000 2800 3700 6.93
NU2224 120 215 58 452000 619000 2600 3400 8.56
NU2226 130 230 64 530000 737000 2400 3200 11.2
NU2228 140 250 68 572000 835000 2200 2900 14.3
NU2230 150 270 73 662000 982000 2000 2600 18.7
NU2232 160 290 80 809000 1190000 1800 2400 26.6
NU2234 170 310 86 967000 1410000 1700 2200 29.2
NU2236 180 320 86 1010000 1510000 1600 2100 30.4
NU2238 190 340 92 1100000 1670000 1500 2000 37
NU2240 200 360 98 1220000 1870000 1400 1900 44.4
NU2244 220 400 108 1130000 1810000 1200 1700 60.9
NU2304 20 52 21 42000 38800 11000 16000 0.21
NU2305 25 62 24 57000 56100 9100 14000 0.35
NU2306 30 72 27 74600 77600 7800 12000 0.53
NU2307 35 80 31 93100 101000 6900 10000 0.73
NU2308 40 90 33 114000 122000 6100 9100 0.96
NU2309 45 100 36 137000 153000 5400 8200 1.32
NU2310 50 110 40 163000 187000 4900 7400 1.76
NU2311 55 120 43 201000 233000 4500 6700 2.25
NU2312 60 130 46 223000 262000 4100 6200 2.81
NU2313 65 140 48 251000 287000 3800 5700 3.36
NU2314 70 150 51 275000 323000 3600 5300 4.08
NU2315 75 160 55 329000 395000 3300 5000 5
NU2316 80 170 58 361000 431000 3100 4700 5.95
NU2317 85 180 60 394000 485000 2900 4400 6.98
NU2318 90 190 64 437000 534000 2800 4100 8.12
NU2319 95 200 67 394000 469000 2600 4000 9.39
NU2320 100 215 73 570000 717000 2400 3600 12.1
NU2322 110 240 80 680000 880000 22 3400 18.9
NU2324 120 260 86 793000 1030000 2000 3000 23.1
NU2326 130 280 93 920000 1230000 1800 2700 29.1
NU2328 140 300 102 1020000 1380000 1700 2500 36.8
NU2330 150 320 108 1180000 1600000 1500 2300 44.7
NU2332 160 340 114 1310000 1820000 1400 2100 53.1
NU2334 170 360 120 1220000 1750000 1300 2000 62.6
NU2336 180 380 126 1350000 1940000 1300 1900 73
NU303 17 47 14 25500 21200 14000 17000 0.15
NU304 20 52 15 31500 26900 12000 16000 0.15
NU305 25 62 17 41600 37400 10000 14000 0.24
NU306 30 72 19 53100 50200 8700 12000 0.36
NU307 35 80 21 66600 65400 7700 10000 0.48
NU308 40 90 23 83100 81500 6800 9100 0.66
NU309 45 100 25 97400 98300 6100 8200 0.91
NU310 50 110 27 110000 113000 5500 7400 1.15
NU311 55 120 29 137000 143000 5100 6700 1.5
NU312 60 130 31 150000 157000 4600 6200 1.87
NU313 65 140 33 181000 191000 4300 5700 2.31
NU314 70 150 35 205000 222000 4000 5300 2.81
NU315 75 160 37 240000 263000 3700 5000 3.37
NU316 80 170 39 259000 282000 3500 4700 4
NU317 85 180 41 291000 330000 3300 4400 4.8
NU318 90 190 43 316000 355000 3100 4100 5.47
NU319 95 200 45 334000 387000 2900 3900 6.42
NU320 100 215 47 379000 424000 2700 3600 7.75
NU321 105 225 49 440000 500000 2600 3500 8.76
NU322 110 240 50 451000 525000 2400 3200 10.7
NU324 120 260 55 528000 610000 2200 3000 13.4
NU326 130 280 58 616000 736000 2000 2700 16.7
NU328 140 300 62 663000 797000 1900 2500 20.4
NU330 150 320 65 757000 922000 1700 2300 27
NU332 160 340 68 857000 1050000 1600 2100 32
NU334 170 361 73 809000 1010000 1500 2000 38.6
NU336 180 380 75 917000 1150000 1400 1900 42.6
NU406 30 90 23 62800 55000 7600 10000 0.753
NU407 35 100 25 75200 68900 6600 8800 1.02
NU408 40 110 27 97100 89100 6000 8000 1.3
NU409 45 120 29 115000 112000 5400 7200 1.64
NU410 50 130 31 139000 136000 4900 6600 2.01
NU411 55 140 33 142000 138000 4600 6100 2.51
NU412 60 150 35 178000 184000 4200 5700 3.02
NU413 65 160 37 198000 203000 4000 5300 3.58
NU414 70 180 42 246000 257000 3500 4700 5.26
NU415 75 190 45 265000 274000 3300 4400 6.25
NU416 80 200 48 302000 315000 3100 4200 7.28
NU417 85 210 52 340000 350000 3000 4000 8.68
NU418 90 225 54 374000 400000 2800 3700 10.3
NU419 95 240 55 410000 444000 2600 3400 13.6
NU420 100 250 58 458000 498000 2500 3300 14
NU422 110 280 65 550000 621000 2200 2900 19.9
NU424 120 310 72 690000 770000 1900 2600 28
NU426 130 340 78 771000 876000 1800 2300 36.1
NU428 140 360 82 874000 1020000 1600 2200 46.8
NU430 150 380 85 930000 1120000 1500 2000 53.3
