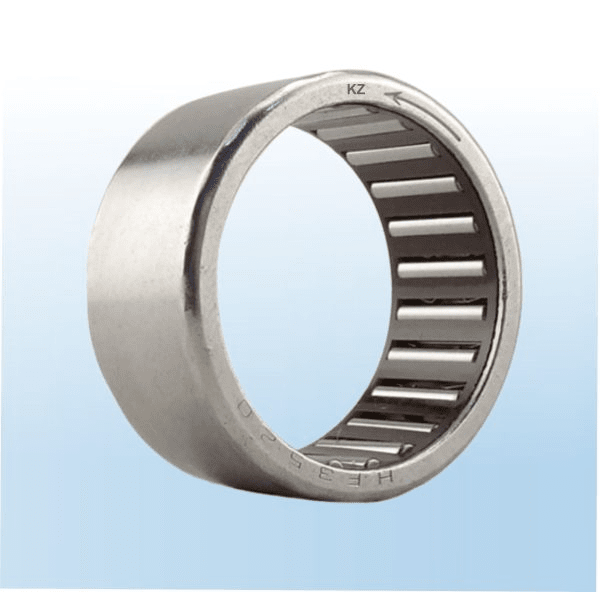

HF Series
HF Series - Drawn cup needle roller clutches are one-way clutches comprising thin-walled, drawn outer rings with a series of ramps on the inside diameter, plastic cages, springs, and needle rollers. They can transmit torques in one direction and are radially compact. The roller clutches are available with and without a bearing assembly.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

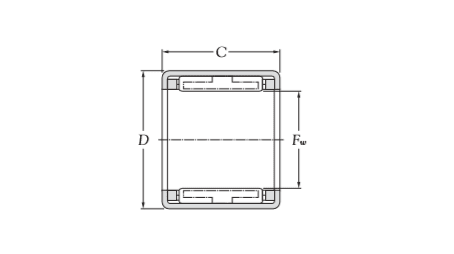

| Bearing Number | Outer Diameter (D) MM | Width C | fw | Moment (MM) | Basic Load Rating (N) Dyn. C | Basic Load Rating (N) Stat. C0 | Weight (KG) |
|---|---|---|---|---|---|---|---|
| HF0409 | 8 | 6 | 4 | 0.34 | 34000 | 14000 | 0.001 |
| HF0612 | 10 | 12 | 6 | 1.76 | 23000 | 13000 | 0.003 |
| HF0812 | 12 | 12 | 8 | 3.15 | 17000 | 11000 | 0.0035 |
| HF1012 | 14 | 12 | 10 | 5.3 | 14000 | 11000 | 0.004 |
| HF1216 | 18 | 16 | 12 | 12.2 | 10000 | 7000 | 0.0105 |
| HF1416 | 20 | 16 | 14 | 17.3 | 9500 | 8000 | 0.013 |
| HF1616 | 22 | 16 | 16 | 20.5 | 8500 | 7500 | 0.014 |
| HF1816 | 24 | 16 | 18 | 24.1 | 7500 | 7500 | 0.0155 |
| HF2016 | 26 | 16 | 20 | 28.5 | 7000 | 6500 | 0.017 |
| HF2520 | 32 | 20 | 25 | 66 | 5500 | 5500 | 0.0309 |
| HF3020 | 37 | 20 | 30 | 90 | 4500 | 4500 | 0.036 |
| HF3520 | 42 | 20 | 35 | 121 | 3900 | 3900 | 0.04 |
| HF3530 | 42 | 30 | 35 | 121 | 3900 | 3900 | 0.058 |
