UCP 300
KZ SERIES : UCP 305

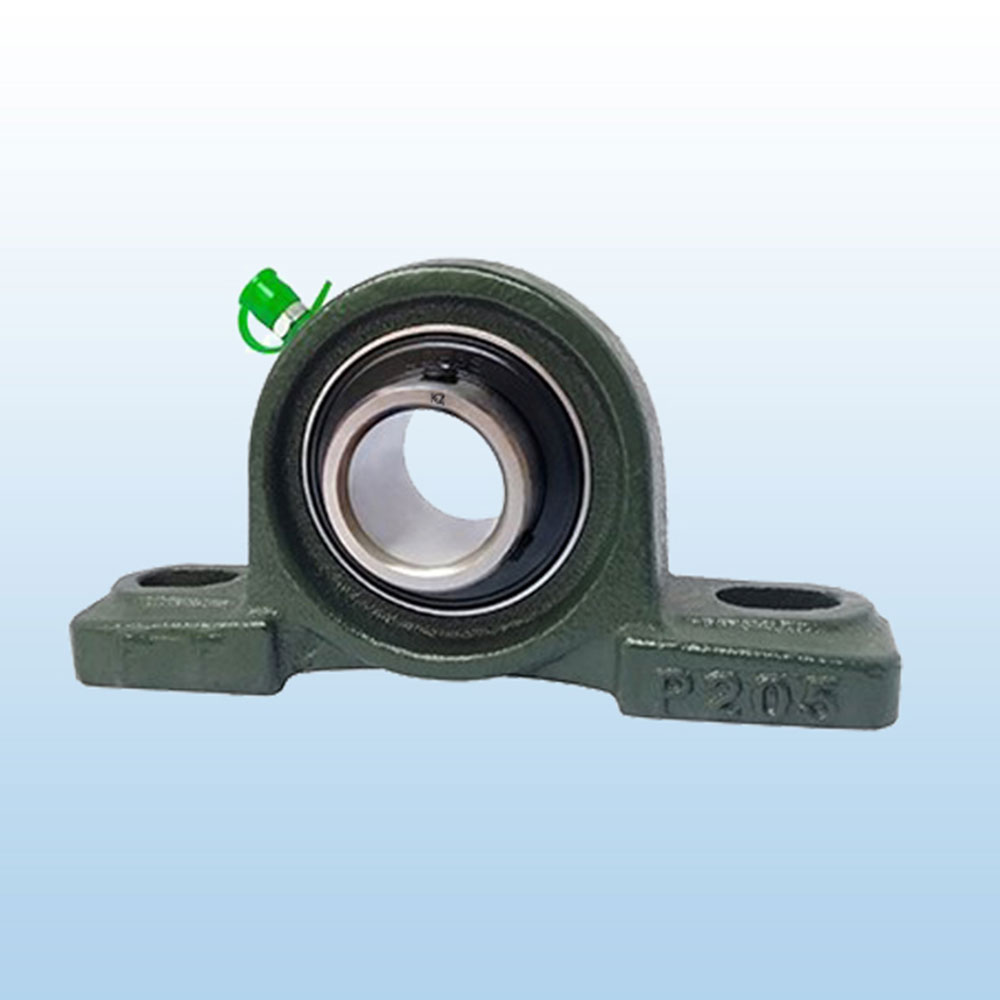

These Bearings are Pillow Block Housing having reinforced ears with Two Slotted holes for fixing and are re-lubricatable. These are slightly heavier than UCP 200 series and can sustain heavier load.
Available in Metric and Inch sizes.

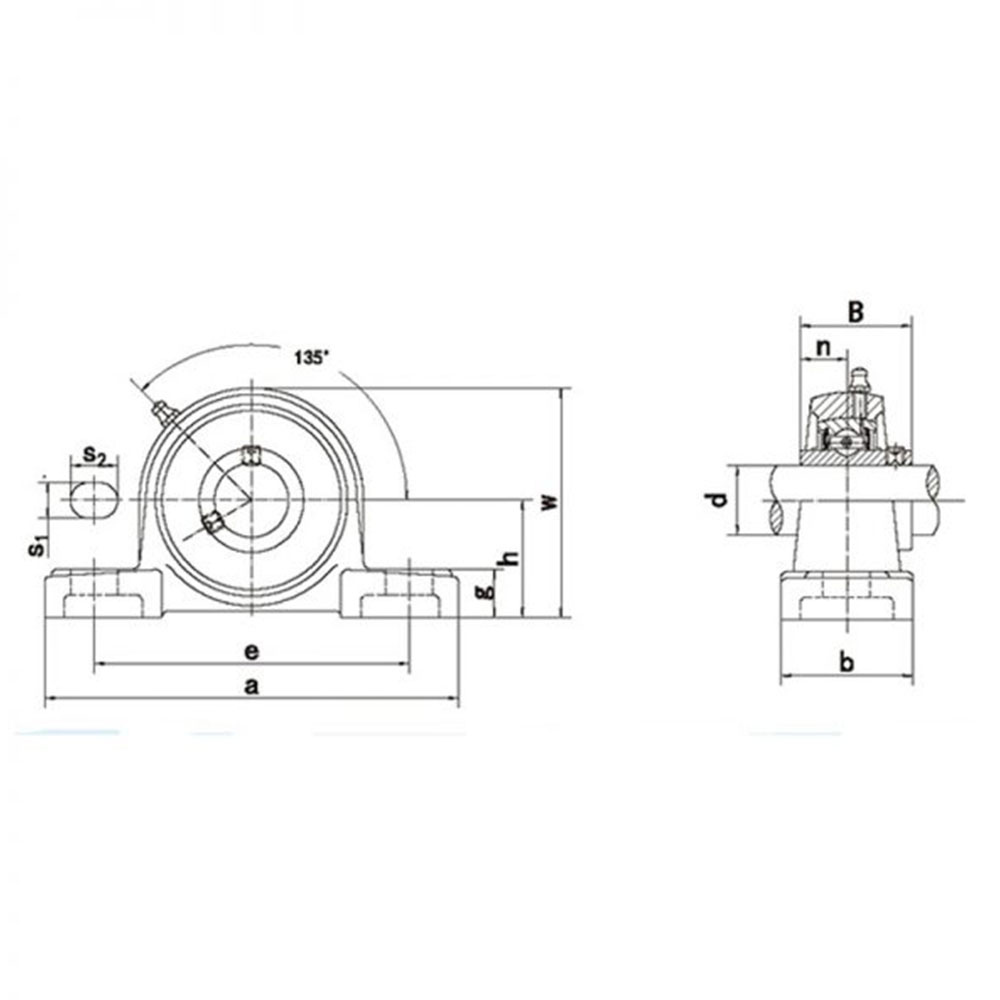

| Bearing Number | Inner Diameter (d) MM | Dimension-B1 (MM) | w | B Drawing | a | g | h | e | n | Bolt Size (MM) | s1 | s2 | Weight (KG) | Housing No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UCP305 | 25 | 38 | 85 | 45 | 175 | 15 | 45 | 132 | 15 | M14 | 17 | 20 | 1.268 | P305 |
| UCP305-13 | 13/16 | 1.4961 | 3-11/32 | 1-25/32 | 6-7/8 | 19/32 | 1-49/64 | 5-3/16 | 0.591 | 1/2 | 43/64 | 25/32 | 1.318 | P305 |
| UCP305-14 | 7/8 | 1.4961 | 3-11/32 | 1-25/32 | 6-7/8 | 19/32 | 1-49/64 | 5-3/16 | 0.591 | 1/2 | 43/64 | 25/32 | 1.298 | P305 |
| UCP305-15 | 15/16 | 1.4961 | 3-11/32 | 1-25/32 | 6-7/8 | 19/32 | 1-49/64 | 5-3/16 | 0.591 | 1/2 | 43/64 | 25/32 | 1.278 | P305 |
| UCP305-16 | 1 | 1.4961 | 3-11/32 | 1-25/32 | 6-7/8 | 19/32 | 1-49/64 | 5-3/16 | 0.591 | 1/2 | 43/64 | 25/32 | 1.268 | P305 |
| UCP306 | 30 | 43 | 95 | 50 | 180 | 18 | 50 | 140 | 17 | M14 | 17 | 20 | 1.732 | P306 |
| UCP306-17 | 1-1/16 | 1.6929 | 3-3/4 | 1-31/32 | 7-3/32 | 23/32 | 1-31/32 | 5-1/2 | 0.669 | 1/2 | 43/64 | 25/32 | 1.786 | P306 |
| UCP306-18 | 1-1/8 | 1.6929 | 3-3/4 | 1-31/32 | 7-3/32 | 23/32 | 1-31/32 | 5-1/2 | 0.669 | 1/2 | 43/64 | 25/32 | 1.756 | P306 |
| UCP306-19 | 1-3/16 | 1.6929 | 3-3/4 | 1-31/32 | 7-3/32 | 23/32 | 1-31/32 | 5-1/2 | 0.669 | 1/2 | 43/64 | 25/32 | 1.736 | P306 |
| UCP307 | 35 | 48 | 106 | 56 | 210 | 20 | 56 | 160 | 19 | M14 | 17 | 25 | 2.383 | P307 |
| UCP307-20 | 1-1/4 | 1.8898 | 4-3/16 | 2-13/64 | 8-9/32 | 25/32 | 1-13/64 | 6-5/16 | 0.748 | 1/2 | 43/64 | 31/32 | 2.439 | P307 |
| UCP307-21 | 1-5/16 | 1.8898 | 4-3/16 | 2-13/64 | 8-9/32 | 25/32 | 1-13/64 | 6-5/16 | 0.748 | 1/2 | 43/64 | 31/32 | 2.409 | P307 |
| UCP307-22 | 1-3/8 | 1.8898 | 4-3/16 | 2-13/64 | 8-9/32 | 25/32 | 1-13/64 | 6-5/16 | 0.748 | 1/2 | 43/64 | 31/32 | 2.379 | P307 |
| UCP307-23 | 1-7/16 | 1.8898 | 4-3/16 | 2-13/64 | 8-9/32 | 25/32 | 1-13/64 | 6-5/16 | 0.748 | 1/2 | 43/64 | 31/32 | 2.349 | P307 |
| UCP308 | 40 | 52 | 116 | 60 | 220 | 22 | 60 | 170 | 19 | M14 | 17 | 27 | 3.075 | P308 |
| UCP308-24 | 1-1/2 | 2.0472 | 4-9/16 | 2-3/8 | 8-21/32 | 7/8 | 2-23/64 | 6-11/16 | 0.748 | 1/2 | 43/64 | 1-11/16 | 3.121 | P308 |
| UCP308-25 | 1-9/16 | 2.0472 | 4-9/16 | 2-3/8 | 8-21/32 | 7/8 | 2-23/64 | 6-11/16 | 0.748 | 1/2 | 43/64 | 1-11/16 | 3.081 | P308 |
| UCP309 | 45 | 57 | 129 | 67 | 245 | 24 | 67 | 190 | 22 | M16 | 20 | 30 | 4.173 | P309 |
| UCP309-26 | 1-5/8 | 2.2441 | 5-3/32 | 2-5/8 | 9-21/32 | 15/16 | 2-41/64 | 7-15/32 | 0.866 | 5/8 | 25/32 | 1-3/16 | 4.268 | P309 |
| UCP309-27 | 1-11/16 | 2.2441 | 5-3/32 | 2-5/8 | 9-21/32 | 15/16 | 2-41/64 | 7-15/32 | 0.866 | 5/8 | 25/32 | 1-3/16 | 4.228 | P309 |
| UCP309-28 | 1-3/4 | 2.2441 | 5-3/32 | 2-5/8 | 9-21/32 | 15/16 | 2-41/64 | 7-15/32 | 0.866 | 5/8 | 25/32 | 1-3/16 | 4.178 | P309 |
| UCP310 | 50 | 61 | 143 | 75 | 275 | 27 | 75 | 212 | 22 | M16 | 20 | 35 | 5.686 | P310 |
| UCP310-29 | 1-13/16 | 2.4016 | 5-5/8 | 2-15/16 | 10-13/16 | 1-1/16 | 2-61/64 | 8-11/32 | 0.866 | 5/8 | 25/32 | 1-3/8 | 6.029 | P310 |
| UCP310-30 | 1-7/8 | 2.4016 | 5-5/8 | 2-15/16 | 10-13/16 | 1-1/16 | 2-61/64 | 8-11/32 | 0.866 | 5/8 | 25/32 | 1-3/8 | 5.779 | P310 |
| UCP310-31 | 1-15/16 | 2.4016 | 5-5/8 | 2-15/16 | 10-13/16 | 1-1/16 | 2-61/64 | 8-11/32 | 0.866 | 5/8 | 25/32 | 1-3/8 | 5.719 | P310 |
| UCP311 | 55 | 66 | 154 | 80 | 310 | 30 | 80 | 236 | 25 | M16 | 20 | 38 | 7.237 | P311 |
| UCP311-32 | 2 | 2.5984 | 6-1/16 | 3-5/32 | 12-7/32 | 1-3/16 | 3-5/32 | 9-9/32 | 0.984 | 5/8 | 25/32 | 1-1/2 | 7.417 | P311 |
| UCP311-33 | 2-1/16 | 2.5984 | 6-1/16 | 3-5/32 | 12-7/32 | 1-3/16 | 3-5/32 | 9-9/32 | 0.984 | 5/8 | 25/32 | 1-1/2 | 7.347 | P311 |
| UCP311-34 | 2-1/8 | 2.5984 | 6-1/16 | 3-5/32 | 12-7/32 | 1-3/16 | 3-5/32 | 9-9/32 | 0.984 | 5/8 | 25/32 | 1-1/2 | 7.287 | P311 |
| UCP311-35 | 2-3/16 | 2.5984 | 6-1/16 | 3-5/32 | 12-7/32 | 1-3/16 | 3-5/32 | 9-9/32 | 0.984 | 5/8 | 25/32 | 1-1/2 | 7.207 | P311 |
| UCP312 | 60 | 71 | 165 | 85 | 330 | 32 | 85 | 250 | 26 | M20 | 25 | 38 | 8.883 | P312 |
| UCP312-36 | 2-1/4 | 2.7953 | 6-1/2 | 3-11/32 | 13 | 1-1/4 | 3-11/32 | 9-27/32 | 1.024 | 3/4 | 31/32 | 1-1/2 | 9.033 | P312 |
| UCP312-37 | 2-5/16 | 2.7953 | 6-1/2 | 3-11/32 | 13 | 1-1/4 | 3-11/32 | 9-27/32 | 1.024 | 3/4 | 31/32 | 1-1/2 | 8.953 | P312 |
| UCP312-38 | 2-3/8 | 2.7953 | 6-1/2 | 3-11/32 | 13 | 1-1/4 | 3-11/32 | 9-27/32 | 1.024 | 3/4 | 31/32 | 1-1/2 | 8.863 | P312 |
| UCP312-39 | 2-7/16 | 2.7953 | 6-1/2 | 3-11/32 | 13 | 1-1/4 | 3-11/32 | 9-27/32 | 1.024 | 3/4 | 31/32 | 1-1/2 | 8.783 | P312 |
| UCP313 | 65 | 75 | 176 | 90 | 340 | 33 | 90 | 260 | 30 | M20 | 25 | 38 | 10.506 | P313 |
| UCP313-40 | 2-1/2 | 2.9528 | 6-15/16 | 3-17/32 | 13-3/8 | 1-5/16 | 3-35/64 | 10-1/4 | 1.181 | 3/4 | 31/32 | 1-1/2 | 10.592 | P313 |
| UCP313-41 | 2-9/16 | 2.9528 | 6-15/16 | 3-17/32 | 13-3/8 | 1-5/16 | 3-35/64 | 10-1/4 | 1.181 | 3/4 | 31/32 | 1-1/2 | 10.492 | P313 |
| UCP314 | 70 | 78 | 187 | 90 | 360 | 35 | 95 | 280 | 33 | M22 | 27 | 40 | 12.041 | P314 |
| UCP314-42 | 2-5/8 | 3.0708 | 7-3/8 | 3-17/32 | 14-3/16 | 1-3/8 | 3-47/64 | 11-1/32 | 1.299 | 7/8 | 1-1/16 | 1-9/16 | 12.261 | P314 |
| UCP314-43 | 2-11/16 | 3.0708 | 7-3/8 | 3-17/32 | 14-3/16 | 1-3/8 | 3-47/64 | 11-1/32 | 1.299 | 7/8 | 1-1/16 | 1-9/16 | 12.151 | P314 |
| UCP314-44 | 2-3/4 | 3.0708 | 7-3/8 | 3-17/32 | 14-3/16 | 1-3/8 | 3-47/64 | 11-1/32 | 1.299 | 7/8 | 1-1/16 | 1-9/16 | 12.051 | P314 |
| UCP315 | 75 | 82 | 198 | 100 | 380 | 35 | 100 | 290 | 32 | M22 | 27 | 40 | 14.509 | P315 |
| UCP315-45 | 2-13/16 | 3.2283 | 7-25/32 | 3-15/16 | 14-31/32 | 1-3/8 | 3-15/16 | 11-13/32 | 1.26 | 7/8 | 1-1/16 | 1-9/16 | 14.779 | P315 |
| UCP315-46 | 2-7/8 | 3.2283 | 7-25/32 | 3-15/16 | 14-31/32 | 1-3/8 | 3-15/16 | 11-13/32 | 1.26 | 7/8 | 1-1/16 | 1-9/16 | 14.639 | P315 |
| UCP315-47 | 2-15/16 | 3.2283 | 7-25/32 | 3-15/16 | 14-31/32 | 1-3/8 | 3-15/16 | 11-13/32 | 1.26 | 7/8 | 1-1/16 | 1-9/16 | 14.549 | P315 |
| UCP315-48 | 3 | 3.2283 | 7-25/32 | 3-15/16 | 14-31/32 | 1-3/8 | 3-15/16 | 11-13/32 | 1.26 | 7/8 | 1-1/16 | 1-9/16 | 14.419 | P315 |
| UCP316 | 80 | 86 | 210 | 110 | 400 | 40 | 106 | 300 | 34 | M22 | 27 | 40 | 17.59 | P316 |
| UCP316-49 | 3-1/16 | 3.3858 | 8-9/32 | 4-11/32 | 15-3/4 | 1-9/16 | 4-11/64 | 11-13/16 | 1.339 | 7/8 | 1-1/16 | 1-9/16 | 17.76 | P316 |
| UCP316-50 | 3-1/8 | 3.3858 | 8-9/32 | 4-11/32 | 15-3/4 | 1-9/16 | 4-11/64 | 11-13/16 | 1.339 | 7/8 | 1-1/16 | 1-9/16 | 17.62 | P316 |
| UCP316-51 | 3-3/16 | 3.3858 | 8-9/32 | 4-11/32 | 15-3/4 | 1-9/16 | 4-11/64 | 11-13/16 | 1.339 | 7/8 | 1-1/16 | 1-9/16 | 17.53 | P316 |
| UCP317 | 85 | 96 | 220 | 110 | 420 | 40 | 112 | 320 | 40 | M27 | 33 | 45 | 19.36 | P317 |
| UCP317-52 | 3-1/4 | 3.7795 | 8-21/32 | 4-11/32 | 16-17/32 | 1-9/16 | 4-13/32 | 12-19/32 | 1.575 | 1 | 1-5/16 | 1-25/32 | 19.58 | P317 |
| UCP317-53 | 3-5/16 | 3.7795 | 8-21/32 | 4-11/32 | 16-17/32 | 1-9/16 | 4-13/32 | 12-19/32 | 1.575 | 1 | 1-5/16 | 1-25/32 | 19.55 | P317 |
| UCP317-55 | 3-7/16 | 3.7795 | 8-21/32 | 4-11/32 | 16-17/32 | 1-9/16 | 4-13/32 | 12-19/32 | 1.575 | 1 | 1-5/16 | 1-25/32 | 19.33 | P317 |
| UCP318 | 90 | 96 | 235 | 110 | 430 | 45 | 118 | 330 | 40 | M27 | 33 | 45 | 22.466 | P318 |
| UCP318-55 | 3-7/16 | 3.7795 | 9-1/4 | 4-11/32 | 16-15/16 | 1-25/32 | 4-41/64 | 13 | 1.575 | 1 | 1-5/16 | 1-25/32 | 22.756 | P318 |
| UCP318-56 | 3-1/2 | 3.7795 | 9-1/4 | 4-11/32 | 16-15/16 | 1-25/32 | 4-41/64 | 13 | 1.575 | 1 | 1-5/16 | 1-25/32 | 22.576 | P318 |
| UCP319 | 95 | 103 | 250 | 120 | 470 | 45 | 125 | 360 | 41 | M30 | 36 | 50 | 27.835 | P319 |
| UCP319-58 | 3-5/8 | 4.0551 | 9-27/32 | 4-23/32 | 18-1/2 | 1-25/32 | 4-59/64 | 14-3/16 | 1.614 | 1-1/8 | 1-13/32 | 1-31/32 | 28.165 | P319 |
| UCP319-59 | 3-11/16 | 4.0551 | 9-27/32 | 4-23/32 | 18-1/2 | 1-25/32 | 4-59/64 | 14-3/16 | 1.614 | 1-1/8 | 1-13/32 | 1-31/32 | 27.985 | P319 |
| UCP319-60 | 3-3/4 | 4.0551 | 9-27/32 | 4-23/32 | 18-1/2 | 1-25/32 | 4-59/64 | 14-3/16 | 1.614 | 1-1/8 | 1-13/32 | 1-31/32 | 27.795 | P319 |
| UCP320 | 100 | 108 | 275 | 120 | 490 | 50 | 140 | 380 | 42 | M30 | 36 | 50 | 33.755 | P320 |
| UCP320-64 | 4 | 4.252 | 10-53/64 | 4-23/32 | 19-9/32 | 1-31/32 | 5-33/64 | 14-31/32 | 1.6536 | 1-1/8 | 1-13/32 | 1-31/32 | 33.555 | P320 |
| UCP322 | 110 | 117 | 300 | 140 | 520 | 55 | 150 | 400 | 46 | M33 | 40 | 55 | 45.25 | P322 |
| UCP324 | 120 | 126 | 320 | 140 | 570 | 65 | 160 | 450 | 51 | M33 | 40 | 55 | 54.97 | P324 |
| UCP326 | 130 | 135 | 355 | 140 | 600 | 75 | 180 | 480 | 54 | M33 | 40 | 55 | 71.48 | P326 |
| UCP328 | 140 | 145 | 390 | 140 | 620 | 75 | 200 | 500 | 59 | M33 | 40 | 55 | 87.48 | P328 |
