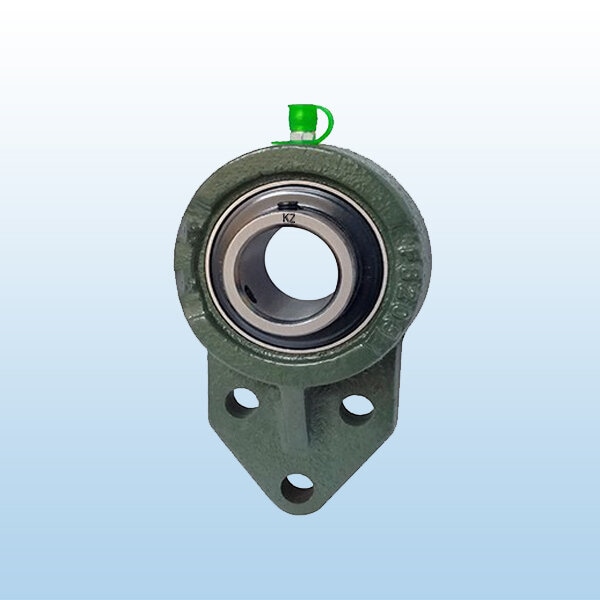

• UCFB | KG Bearing

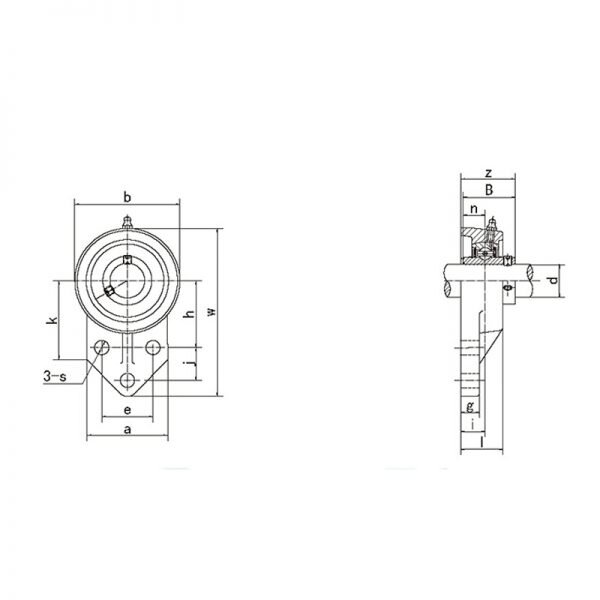

  • UCFB Line Drawing | KG Bearing

UCFB

KZ SERIES : UCFB 201

Cast Iron Bearing Units

UCFB are Three Bolt Flange Brackets having wide inner ring insert Bearings set screw locking. This diamond-shaped bearing box has a flange on just one side, so it is appropriate for applications in small spaces such as machinery sides and vertical surfaces.

3-Bolt flange bracket units with set screw lock.

  • Cast iron housing
  • Wide inner race bearing
  • B-type seals
  • L3-type seals are available in some sizes. Consult IPTCI for speed limitations.

Available in metric and inch sizes.

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send Query WhatsApp Us
Bearing Number Inner Diameter (d) MM Width (B) MM w B Drawing k a l s g h j e i z n Bolt Size (MM) Height r2 min Weight (KG) Housing No. BCA
UCFB201 12 62 110 31 52 52 25.5 10 13 42 27 32 15 33.3 12.7 M8 0.587 FB201
UCFB201-8 1/2 2-7/16 4-11/32 1.2205 2-1/16 2-1/16 1 25/64 1/2 1-21/32 1-1/16 1-17/64 19/32 1-5/16 0.5 5/16 0.577 FB201
UCFB202 15 2-7/16 4-11/32 1.2205 2-1/16 2-1/16 1 25/64 1/2 1-21/32 1-1/16 1-17/64 19/32 1-5/16 0.5 5/16 0.577 FB202
UCFB202-9 9/16 2-7/16 4-11/32 1.2205 2-1/16 2-1/16 1 25/64 1/2 1-21/32 1-1/16 1-17/64 19/32 1-5/16 0.5 5/16 0.577 FB202
UCFB202-10 5/8 2-7/16 4-11/32 1.2205 2-1/16 2-1/16 1 25/64 1/2 1-21/32 1-1/16 1-17/64 19/32 1-5/16 0.5 5/16 0.577 FB202
UCFB203 17 62 110 1.2205 52 52 25.5 10 13 1-21/32 1-1/16 1-17/64 19/32 1-5/16 0.5 5/16 0.567 FB203
UCFB203-11 11/16 2-7/16 4-11/32 1.2205 2-1/16 2-1/16 1 25/64 1/2 1-21/32 1-1/16 1-17/64 19/32 1-5/16 0.5 5/16 0.557 FB203
UCFB204 20 2-7/16 4-11/32 1.2205 2-1/16 2-1/16 1 25/64 1/2 1-21/32 1-1/16 1-17/64 19/32 1-5/16 0.5 5/16 0.546 FB204
UCFB204-12 3/4 2-7/16 4-11/32 1.2205 2-1/16 2-1/16 1 25/64 1/2 1-21/32 1-1/16 1-17/64 19/32 1-5/16 0.5 5/16 0.546 FB204
UCFB205 25 68 116 34.1 52 56 27 10 13 45 27 34 16 35.8 14.3 M8 0.637 FB205
UCFB205-13 13/16 2-11/16 4-9/16 1.3425 2-1/16 2-7/32 1-1/16 25/64 1/2 1-49/64 1-1/16 1-11/32 5/8 1-13/32 0.563 5/16 0.674 FB205
UCFB205-14 7/8 2-11/16 4-9/16 1.3425 2-1/16 2-7/32 1-1/16 25/64 1/2 1-49/64 1-1/16 1-11/32 5/8 1-13/32 0.563 5/16 0.664 FB205
UCFB205-15 15/16 2-11/16 4-9/16 1.3425 2-1/16 2-7/32 1-1/16 25/64 1/2 1-49/64 1-1/16 1-11/32 5/8 1-13/32 0.563 5/16 0.644 FB205
UCFB205-16 1 2-11/16 4-9/16 1.3425 2-1/16 2-7/32 1-1/16 25/64 1/2 1-49/64 1-1/16 1-11/32 5/8 1-13/32 0.563 5/16 0.634 FB205
UCFB206 30 78 130 38.1 55 65 31 10 13 50 29 40 18 40.2 15.9 M8 0.879 FB206
UCFB206-17 1-1/16 3-1/16 5-1/8 1.5 2-5/32 2-9/16 1-7/32 25/64 1/2 1-31/32 1-9/64 1-37/64 45/64 1-19/32 0.626 5/16 0.889 FB206
UCFB206-18 1-1/8 3-1/16 5-1/8 1.5 2-5/32 2-9/16 1-7/32 25/64 1/2 1-31/32 1-9/64 1-37/64 45/64 1-19/32 0.626 5/16 0.899 FB206
UCFB206-19 1-3/16 3-1/16 5-1/8 1.5 2-5/32 2-9/16 1-7/32 25/64 1/2 1-31/32 1-9/64 1-37/64 45/64 1-19/32 0.626 5/16 0.879 FB206
UCFB206-20 1-1/4 3-1/16 5-1/8 1.5 2-5/32 2-9/16 1-7/32 25/64 1/2 1-31/32 1-9/64 1-37/64 45/64 1-19/32 0.626 5/16 0.869 FB206
UCFB207 35 90 144 42.9 62 70 34 10 15 55 32 46 19 44.4 17.5 M8 1.241 FB207
UCFB207-20 1-1/4 3-35/64 5-21/32 1.689 2-7/16 2-3/4 1-11/32 25/64 19/32 2-11/64 1-17/64 1-13/16 3/4 1-3/4 0.689 5/16 1.306 FB207
UCFB207-21 1-5/16 3-35/64 5-21/32 1.689 2-7/16 2-3/4 1-11/32 25/64 19/32 2-11/64 1-17/64 1-13/16 3/4 1-3/4 0.689 5/16 1.276 FB207
UCFB207-22 1-3/8 3-35/64 5-21/32 1.689 2-7/16 2-3/4 1-11/32 25/64 19/32 2-11/64 1-17/64 1-13/16 3/4 1-3/4 0.689 5/16 1.246 FB207
UCFB207-23 1-7/16 3-35/64 5-21/32 1.689 2-7/16 2-3/4 1-11/32 25/64 19/32 2-11/64 1-17/64 1-13/16 3/4 1-3/4 0.689 5/16 1.216 FB207
UCFB208 40 100 164 49.2 72 78 36 12 16 60 41 50 21 51.2 19 M10 1.661 FB208
UCFB208-24 1-1/2 3-15/16 6-15/32 1.937 2-27/32 3-1/16 1-13/32 15/32 5/8 2-23/64 1-39/64 1-31/32 53/64 1-1/64 0.748 3/8 1.701 FB208
UCFB208-25 1-9/16 3-15/16 6-15/32 1.937 2-27/32 3-1/16 1-13/32 15/32 5/8 2-23/64 1-39/64 1-31/32 53/64 1-1/64 0.748 3/8 1.671 FB208
UCFB209 45 106 174 49.2 76 80 38 12 18 65 43 54 22 52.2 19 M10 1.924 FB209
UCFB209-26 1-5/8 4-3/16 6-27/32 1.937 3 3-5/32 1-1/2 15/32 23/32 2-9/16 1-11/16 2-1/8 55/64 2-1/16 0.748 3/8 2.024 FB209
UCFB209-27 1-11/16 4-3/16 6-27/32 1.937 3 3-5/32 1-1/2 15/32 23/32 2-9/16 1-11/16 2-1/8 55/64 2-1/16 0.748 3/8 1.984 FB209
UCFB209-28 1-3/4 4-3/16 6-27/32 1.937 3 3-5/32 1-1/2 15/32 23/32 2-9/16 1-11/16 2-1/8 55/64 2-1/16 0.748 3/8 1.944 FB209
UCFB210 50 112 184 51.6 82 86 40 12 18 68 46 58 22 54.6 19 M10 2.212 FB210
UCFB210-29 1-13/16 4-13/32 7-1/4 2.0315 3-7/32 3-3/8 1-37/64 15/32 23/32 2-43/64 1-13/16 2-9/32 55/64 2-5/32 0.748 3/8 2.332 FB210
UCFB210-30 1-7/8 4-13/32 7-1/4 2.0315 3-7/32 3-3/8 1-37/64 15/32 23/32 2-43/64 1-13/16 2-9/32 55/64 2-5/32 0.748 3/8 2.282 FB210
UCFB210-31 1-15/16 4-13/32 7-1/4 2.0315 3-7/32 3-3/8 1-37/64 15/32 23/32 2-43/64 1-13/16 2-9/32 55/64 2-5/32 0.748 3/8 2.232 FB210
UCFB210-32 2 4-13/32 7-1/4 2.0315 3-7/32 3-3/8 1-37/64 15/32 23/32 2-43/64 1-13/16 2-9/32 55/64 2-5/32 0.748 3/8 2.192 FB210
UCFB211 55 130 207 55.6 86 90 43 14 18 78 50 62 25 58.4 22.2 M12 3.095 FB211
UCFB211-32 2 5-1/8 8-5/32 2.189 3-25/64 3-35/64 1-11/16 35/64 45/64 3-5/64 1-31/32 2-7/16 63/64 2-5/16 0.874 7/16 3.245 FB211
UCFB211-33 2-1/16 5-1/8 8-5/32 2.189 3-25/64 3-35/64 1-11/16 35/64 45/64 3-5/64 1-31/32 2-7/16 63/64 2-5/16 0.874 7/16 3.185 FB211
UCFB211-34 2-1/8 5-1/8 8-5/32 2.189 3-25/64 3-35/64 1-11/16 35/64 45/64 3-5/64 1-31/32 2-7/16 63/64 2-5/16 0.874 7/16 3.145 FB211
UCFB211-35 2-3/16 5-1/8 8-5/32 2.189 3-25/64 3-35/64 1-11/16 35/64 45/64 3-5/64 1-31/32 2-7/16 63/64 2-5/16 0.874 7/16 3.075 FB211
UCFB212 60 140 223 65.1 90 94 48 14 18 84 55 66 29 68.7 25.4 M12 3.869 FB212
UCFB212-36 2-1/4 5-1/2 8-25/32 2.563 3-35/64 3-45/64 1-7/8 35/64 45/64 3-5/16 2-11/64 2-19/32 1-9/64 2-23/32 1 7/16 3.999 FB212
UCFB212-37 2-5/16 5-1/2 8-25/32 2.563 3-35/64 3-45/64 1-7/8 35/64 45/64 3-5/16 2-11/64 2-19/32 1-9/64 2-23/32 1 7/16 3.919 FB212
UCFB212-38 2-3/8 5-1/2 8-25/32 2.563 3-35/64 3-45/64 1-7/8 35/64 45/64 3-5/16 2-11/64 2-19/32 1-9/64 2-23/32 1 7/16 3.849 FB212
UCFB212-39 2-7/16 5-1/2 8-25/32 2.563 3-35/64 3-45/64 1-7/8 35/64 45/64 3-5/16 2-11/64 2-19/32 1-9/64 2-23/32 1 7/16 3.779 FB212
UCFB213 65 155 244 65.1 94 100 50 14 20 92 60 70 30 69.7 25.4 M12 4.968 FB213
UCFB213-40 2-1/2 6-7/64 9-39/64 2.563 3-45/64 3-15/16 1-31/32 35/64 25/32 3-5/8 2-23/64 2-3/4 1-3/16 2-3/4 1 7/16 5.058 FB213
UCFB213-41 2-9/16 6-7/64 9-39/64 2.563 3-45/64 3-15/16 1-31/32 35/64 25/32 3-5/8 2-23/64 2-3/4 1-3/16 2-3/4 1 7/16 4.968 FB213
