SAPFL

KZ SERIES :SAPFL 201, SAPFL 203, SAPFL 203-11, SAPFL 206, SAPFL 208-24

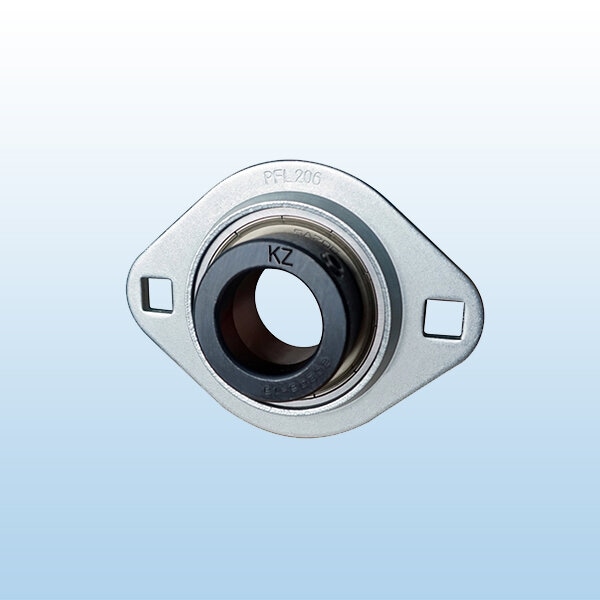

Pressed steel bearing units have a high rotation speed and high elasticity. These bearing units have a lower mass than those in cast iron, successfully combining their lightweight properties with excellent mechanical resistance. Lightweight, pressed steel unit used in machinery applications with low rotating speed or light load. Features zinc-plated housing, narrow inner ring bearing, and full cover metal-shroud seals.

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send Query WhatsApp Us

Description

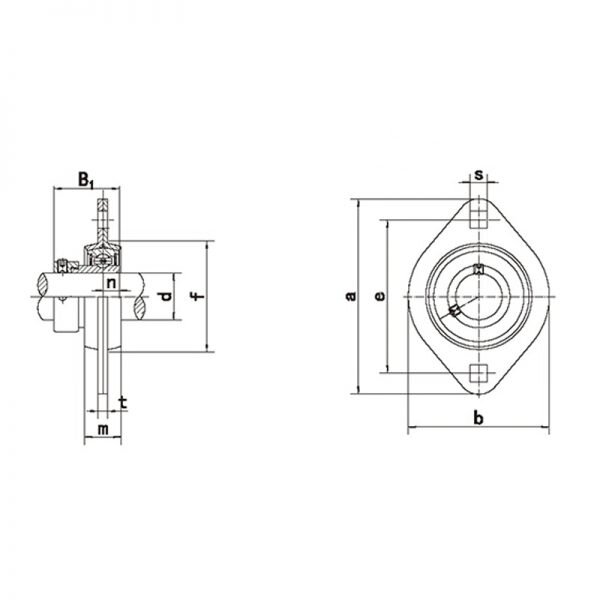

Bearing Number	Inner Diameter (d) MM	Dimension-B1 (MM)	B Drawing	a	e	n	Bolt Size (MM)	t	F Min	S	Moment (MM)	Weight (KG)	Housing No.
SAPFL201	12	28.6	59	81	63.5	6.5	M6	4	49	7.1	14	0.2	PFL204
SAPFL201-8	1/2	1.126	2-21/64	3-3/16	2-1/2	0.2559	1/4	0.157	1-59/64	9/32	9/16	0.2	PFL204
SAPFL202	15	1.126	2-21/64	3-3/16	2-1/2	0.2559	1/4	0.157	1-59/64	9/32	9/16	0.2	PFL204
SAPFL202-10	5/8	1.126	2-21/64	3-3/16	2-1/2	0.2559	1/4	0.157	1-59/64	9/32	9/16	0.2	PFL204
SAPFL202-9	9/16	1.126	2-21/64	3-3/16	2-1/2	0.2559	1/4	0.157	1-59/64	9/32	9/16	0.2	PFL204
SAPFL203	17	1.126	2-21/64	3-3/16	2-1/2	0.2559	1/4	0.157	1-59/64	9/32	9/16	0.2	PFL204
SAPFL203-11	11/16	1.126	2-21/64	3-3/16	2-1/2	0.2559	1/4	0.157	1-59/64	9/32	9/16	0.2	PFL204
SAPFL204	20	31	67	90	71.5	7.5	M8	4	56	9	16	0.25	PFL204
SAPFL204-12	3/4	1.2204	2-41/64	3-35/64	2-13/16	0.2953	5/16	0.157	2-13/64	23/64	5/8	0.25	PFL204
SAPFL205	25	31	71	95	76	7.5	M8	4	60	9	18	0.29	PFL205
SAPFL205-13	13/16	1.2204	2-51/64	3-3/4	2-63/64	0.2953	5/16	0.157	2-23/64	23/64	23/32	0.29	PFL205
SAPFL205-14	7/8	1.2204	2-51/64	3-3/4	2-63/64	0.2953	5/16	0.157	2-23/64	23/64	23/32	0.29	PFL205
SAPFL205-15	15/16	1.2204	2-51/64	3-3/4	2-63/64	0.2953	5/16	0.157	2-23/64	23/64	23/32	0.29	PFL205
SAPFL205-16	1	1.2204	2-51/64	3-3/4	2-63/64	0.2953	5/16	0.157	2-23/64	23/64	23/32	0.29	PFL205
SAPFL206	30	35.7	84	113	90.5	9	M10	5.2	71	11	18	0.46	PFL206
SAPFL206-17	1-1/16	1.4055	3-5/16	4-7/16	3-9/16	0.3543	3/8	0.205	2-51/64	7/16	23/32	0.46	PFL206
SAPFL206-18	1-1/8	1.4055	3-5/16	4-7/16	3-9/16	0.3543	3/8	0.205	2-51/64	7/16	23/32	0.46	PFL206
SAPFL206-19	1-3/16	1.4055	3-5/16	4-7/16	3-9/16	0.3543	3/8	0.205	2-51/64	7/16	23/32	0.46	PFL206
SAPFL206-20	1-1/4	1.4055	3-5/16	4-7/16	3-9/16	0.3543	3/8	0.205	2-51/64	7/16	23/32	0.46	PFL206
SAPFL207	35	38.9	94	122	100	9.5	M10	5.2	81	11	20	0.67	PFL207
SAPFL207-20	1-1/4	1.5315	3-45/64	4-13/16	3-15/16	0.374	3/8	0.205	3-3/16	7/16	25/32	0.67	PFL207
SAPFL207-21	1-5/16	1.5315	3-45/64	4-13/16	3-15/16	0.374	3/8	0.205	3-3/16	7/16	25/32	0.67	PFL207
SAPFL207-22	1-3/8	1.5315	3-45/64	4-13/16	3-15/16	0.374	3/8	0.205	3-3/16	7/16	25/32	0.67	PFL207
SAPFL207-23	1-7/16	1.5315	3-45/64	4-13/16	3-15/16	0.374	3/8	0.205	3-3/16	7/16	25/32	0.67	PFL207
SAPFL208	40	43.7	100	148	119	11	M12	6.8	91	13.5	21	0.91	PFL208
SAPFL208-24	1-1/2	1.7205	3-15/16	5-13/16	4-11/16	0.4331	1/2	0.268	3-37/64	17/32	13/16	0.91	PFL208
SAPFL208-25	1-9/16	1.7205	3-15/16	5-13/16	4-11/16	0.4331	1/2	0.268	3-37/64	17/32	13/16	0.91	PFL208
