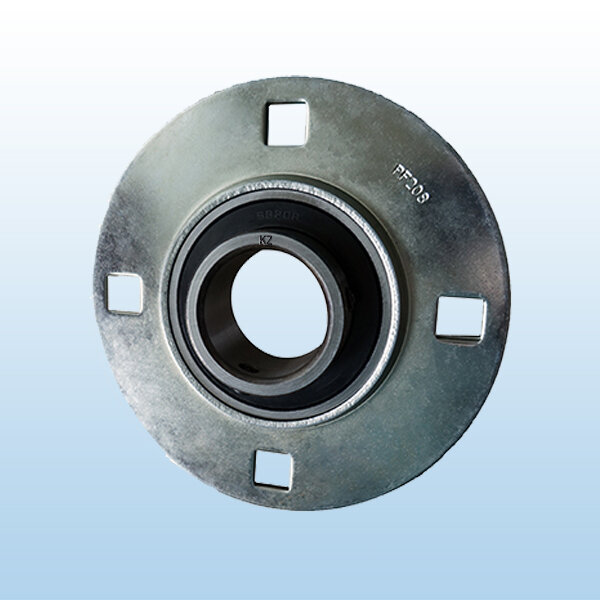

SBPF

KZ SERIES :SBPF 201, SBPF 201-8, SBPF 203-11, SBPF 203-11, SBPF 210, SBPF 210-30, SBPF 212, SBPF 212-39

Recommended for light applications
Round 3- Bolt
Set Screw Type
Pressed Steel
Pre-mounted Insert Bearing

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send Query WhatsApp Us

Description

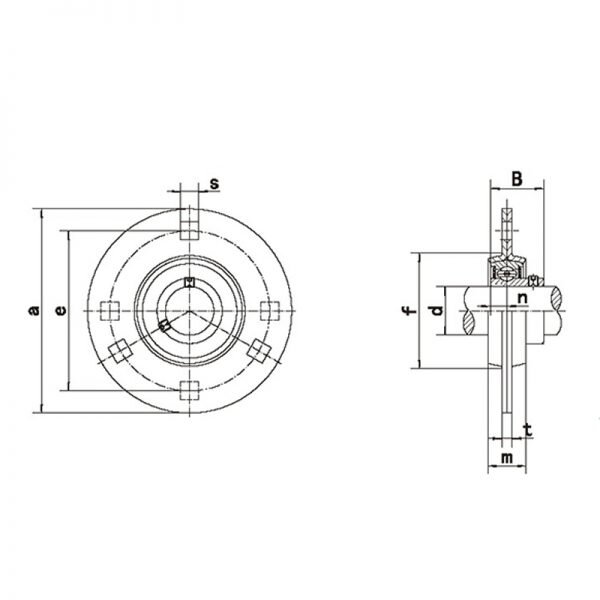

Bearing Number	Inner Diameter (d) MM	Width (B) MM	a	s	e	n	Bolt Size (MM)	f	t	Moment (MM)	Weight (KG)	Housing No.
SBPF201	12	22	81	7.1	63.5	6	M6	49	4	14	0.27	PF204
SBPF201-8	1/2	0.8661	3-3/16	9/32	2-1/2	0.2362	1/4	1-59/64	0.157	9/16	0.27	PF204
SBPF202	15	0.8661	3-3/16	9/32	2-1/2	0.2362	1/4	1-59/64	0.157	9/16	0.27	PF204
SBPF202-9	9/16	0.8661	3-3/16	9/32	2-1/2	0.2362	1/4	1-59/64	0.157	9/16	0.27	PF204
SBPF202-10	5/8	0.8661	3-3/16	9/32	2-1/2	0.2362	1/4	1-59/64	0.157	9/16	0.27	PF204
SBPF203	17	0.8661	3-3/16	9/32	2-1/2	0.2362	1/4	1-59/64	0.157	9/16	0.27	PF203
SBPF203-11	11/16	0.8661	3-3/16	9/32	2-1/2	0.2362	1/4	1-59/64	0.157	9/16	0.27	PF203
SBPF204	20	25	90	9	71.5	7	M8	56	4	16	0.29	PF204
SBPF204-12	3/4	0.9843	3-35/64	23/64	2-13/16	0.2756	5/16	2-13/64	0.157	5/8	0.29	PF204
SBPF205	25	27	95	9	76	7.5	M8	60	4	18	0.33	PF205
SBPF205-13	13/16	1.063	3-3/4	23/64	2-63/64	0.2953	5/16	2-23/64	0.157	23/32	0.33	PF205
SBPF205-14	7/8	1.063	3-3/4	23/64	2-63/64	0.2953	5/16	2-23/64	0.157	23/32	0.33	PF205
SBPF205-15	15/16	1.063	3-3/4	23/64	2-63/64	0.2953	5/16	2-23/64	0.157	23/32	0.33	PF205
SBPF205-16	1	1.063	3-3/4	23/64	2-63/64	0.2953	5/16	2-23/64	0.157	23/32	0.33	PF205
SBPF206	30	30	113	11	90.5	8	M10	71	5.2	18	0.54	PF206
SBPF206-17	1-1/16	1.1811	4-7/16	7/16	3-9/16	0.315	3/8	2-51/64	0.205	23/32	0.54	PF206
SBPF206-18	1-1/8	1.1811	4-7/16	7/16	3-9/16	0.315	3/8	2-51/64	0.205	23/32	0.54	PF206
SBPF206-19	1-3/16	1.1811	4-7/16	7/16	3-9/16	0.315	3/8	2-51/64	0.205	23/32	0.54	PF206
SBPF206-20	1-1/4	1.1811	4-7/16	7/16	3-9/16	0.315	3/8	2-51/64	0.205	23/32	0.54	PF206
SBPF207	35	32	122	11	100	8.5	M10	81	5.2	20	0.68	PF207
SBPF207-20	1-1/4	1.2598	4-13/16	7/16	3-15/16	0.3346	3/8	3-3/16	0.205	25/32	0.68	PF207
SBPF207-21	1-5/16	1.2598	4-13/16	7/16	3-15/16	0.3346	3/8	3-3/16	0.205	25/32	0.68	PF207
SBPF207-22	1-3/8	1.2598	4-13/16	7/16	3-15/16	0.3346	3/8	3-3/16	0.205	25/32	0.68	PF207
SBPF207-23	1-7/16	1.2598	4-13/16	7/16	3-15/16	0.3346	3/8	3-3/16	0.205	25/32	0.68	PF207
SBPF208	40	34	148	13.5	119	9	M12	91	6.8	21	1.14	PF208
SBPF208-24	1-1/2	1.3386	5-13/16	17/32	4-11/16	0.3543	1/2	3-37/64	0.268	13/16	1.14	PF208
SBPF208-25	1-9/16	1.3386	5-13/16	17/32	4-11/16	0.3543	1/2	3-37/64	0.268	13/16	1.14	PF208
SBPF209	45	41.2	150	13.5	120.5	10.2	M12	98	6.8	23	1.21	PF209
SBPF209-26	1-5/8	1.622	5-29/32	17/32	4-3/4	0.402	1/2	3-55/64	0.268	29/32	1.21	PF209
SBPF209-27	1-11/16	1.622	5-29/32	17/32	4-3/4	0.402	1/2	3-55/64	0.268	29/32	1.21	PF209
SBPF209-28	1-3/4	1.622	5-29/32	17/32	4-3/4	0.402	1/2	3-55/64	0.268	29/32	1.21	PF209
SBPF210	50	43.5	157	13.5	127	10.9	M12	102	8	25	1.49	PF210
SBPF210-29	1-13/16	1.7126	6-3/16	17/32	5	0.429	1/2	4-1/64	0.315	63/64	1.49	PF210
SBPF210-30	1-7/8	1.7126	6-3/16	17/32	5	0.429	1/2	4-1/64	0.315	63/64	1.49	PF210
SBPF210-31	1-15/16	1.7126	6-3/16	17/32	5	0.429	1/2	4-1/64	0.315	63/64	1.49	PF210
SBPF210-32	2	1.7126	6-3/16	17/32	5	0.429	1/2	4-1/64	0.315	63/64	1.49	PF210
SBPF211	55	45.3	168	13.5	138	11.8	M12	113	8	26	1.76	PF211
SBPF211-32	2	1.7835	6-5/8	17/32	5-7/16	0.465	1/2	4-29/64	0.315	1-1/64	1.76	PF211
SBPF211-33	2-1/16	1.7835	6-5/8	17/32	5-7/16	0.465	1/2	4-29/64	0.315	1-1/64	1.76	PF211
SBPF211-34	2-1/8	1.7835	6-5/8	17/32	5-7/16	0.465	1/2	4-29/64	0.315	1-1/64	1.76	PF211
SBPF211-35	2-3/16	1.7835	6-5/8	17/32	5-7/16	0.465	1/2	4-29/64	0.315	1-1/64	1.76	PF211
SBPF212	60	53.7	177	13.5	148	14.9	M12	122	8	28	2.23	PF212
SBPF212-36	2-1/4	2.1142	6-31/32	17/32	5-53/64	0.587	1/2	4-13/16	0.315	1-7/64	2.23	PF212
SBPF212-37	2-5/16	2.1142	6-31/32	17/32	5-53/64	0.587	1/2	4-13/16	0.315	1-7/64	2.23	PF212
SBPF212-38	2-3/8	2.1142	6-31/32	17/32	5-53/64	0.587	1/2	4-13/16	0.315	1-7/64	2.23	PF212
SBPF212-39	2-7/16	2.1142	6-31/32	17/32	5-53/64	0.587	1/2	4-13/16	0.315	1-7/64	2.23	PF212
