NUP Series NUP210

Technical Details

Bore Diameter (mm) d	Outer Diameter (mm) D	Width (mm) B	Weight (Kg)
50	90	20	0.523

KZ SERIES : NUP203, NUP2204, NUP2304, NUP304, NUP406

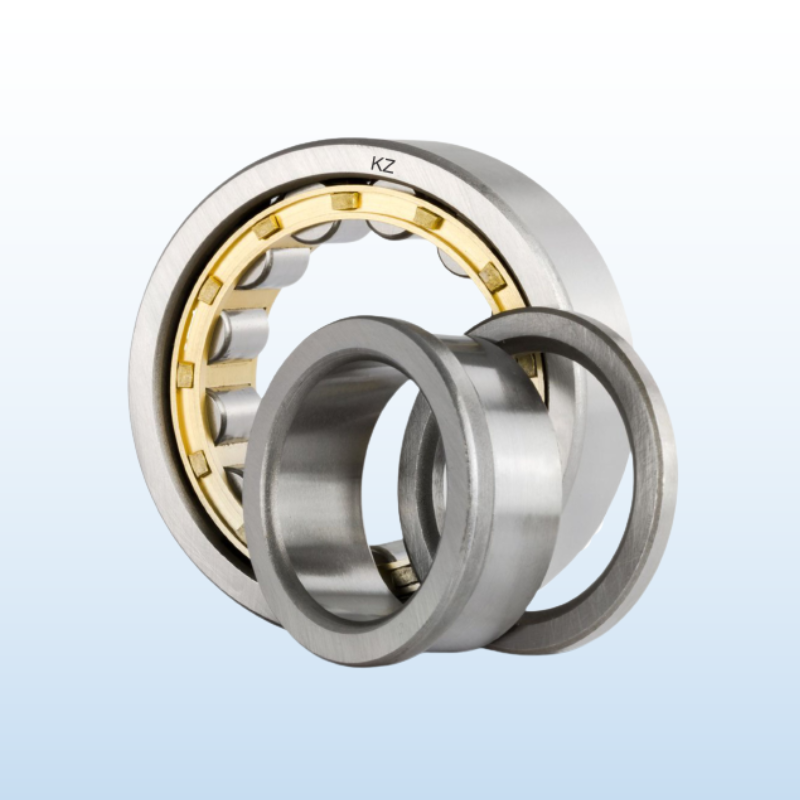

NUP Series NUP210 has a flanged inner ring with a washer, these bearings can be used as fixed-end bearings. The outer ring of a NUP cylindrical bearing has two fixed ribs, whereas the inner ring of the cylindrical bearing has one fixed rib and one loose rib. This means that the NUP cylindrical bearing is able to axially locate the shaft in both directions. Single-row cylindrical roller bearings with a cage comprising cylindrical rollers caged between a solid outer and inner ring. These bearings have a high level of rigidity, can support heavy radial loads, and are suitable for high speeds.

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send query Buy Now

Bearing Number	Inner Diameter (d) MM	Outer Diameter (D) MM	Width (B) MM	Basic Load Rating (N) Dyn. C	Basic Load Rating (N) Stat. C0	LIMITTING SPEED ( R/MIN ) LUBRICATION Grease	LIMITTING SPEED ( R/MIN ) LUBRICATION Oil	Weight (KG)
NUP210	50	90	20	66100	71900	7100	8500	0.523
NUP211	55	100	21	86400	98700	6400	7700	0.684
NUP212	60	110	22	97700	107000	5800	6900	0.874
NUP213	65	120	23	108000	119000	5300	6400	1.106
NUP214	70	125	24	119000	137000	5000	6000	1.22
NUP215	75	130	25	130000	156000	4800	5700	1.35
NUP216	80	140	26	139000	167000	4400	5300	1.64
NUP217	85	150	28	167000	199000	4200	5000	2.04
NUP218	90	160	30	182000	217000	3900	4700	2.5
NUP219	95	170	32	221000	265000	3700	4400	3.08
NUP220	100	180	34	250000	306000	3500	4200	3.7
NUP222	110	200	38	293000	365000	3100	3700	5.16
NUP224	120	215	40	336000	421000	2800	3400	6.16
NUP226	130	230	40	364000	453000	2600	3200	6.95
NUP228	140	250	42	392000	514000	2400	2900	8.95
NUP230	150	270	45	448000	594000	2200	2600	11.27
NUP236	180	320	52	626000	852000	1800	2100	20.33
NUP240	200	360	58	766000	1060000	1600	1900	28.65
NUP244	220	400	65	766000	1080000	1400	1700	40.54
NUP248	240	440	72	949000	1340000	1200	1500	54.86
NUP2204	20	47	18	30600	28300	13000	18000	0.154
NUP2205	25	52	18	34900	34600	12000	15000	0.174
NUP2206	30	62	20	48900	49800	9700	13000	0.276
NUP2207	35	72	23	57500	63000	7500	9500	0.426
NUP2208	40	80	23	72300	77600	7400	9900	0.516
NUP2209	45	85	23	76100	84600	6900	9200	0.564
NUP2210	50	90	23	79700	91500	6400	8500	0.61
NUP2211	55	100	25	101000	122000	5800	7700	0.849
NUP2212	60	110	28	131000	157000	5200	6900	1.148
NUP2213	65	120	31	149000	181000	4800	6400	1.527
NUP2214	70	125	31	156000	194000	4500	6000	1.61
NUP2215	75	130	31	162000	207000	4300	5700	1.69
NUP2216	80	140	33	186000	243000	4000	5300	2.13
NUP2217	85	150	36	218000	279000	3700	5000	2.67
NUP2218	90	160	40	242000	314000	3500	4700	3.38
NUP2219	95	170	43	287000	371000	3300	4400	4.13
NUP2220	100	180	46	334000	444000	3100	4200	5.08
NUP2222	110	200	53	384000	517000	2800	3700	7.29
NUP2224	120	215	58	452000	619000	2600	3400	9.02
NUP2226	130	230	64	530000	737000	2400	3200	11.79
NUP2228	140	250	68	572000	835000	2200	2900	15.06
NUP2230	150	270	73	662000	982000	2000	2600	19.69
NUP2240	200	360	98	1220000	1870000	1400	1900	46.75
NUP2244	220	400	108	1130000	1810000	1200	1700	64.13
NUP2304	20	52	21	42000	38800	11000	16000	0.227
NUP2305	25	62	24	57000	56100	9100	14000	0.368
NUP2306	30	72	27	74600	77600	7800	12000	0.562
NUP2307	35	80	31	93100	10100	6900	10000	0.767
NUP2308	40	90	33	114000	122000	6100	9100	1.013
NUP2309	45	100	36	137000	153000	5400	8200	1.39
NUP2310	50	110	40	163000	187000	4900	7400	1.853
NUP2311	55	120	43	201000	233000	4500	6700	2.369
NUP2312	60	130	46	223000	262000	4100	6200	2.959
NUP2313	65	140	48	251000	287000	3800	5700	3.54
NUP2314	70	150	51	275000	323000	3600	5300	4.3
NUP2315	75	160	55	329000	395000	3300	5000	5.26
NUP2316	80	170	58	361000	431000	3100	4700	6.27
NUP2317	85	180	60	394000	485000	2900	4400	7.35
NUP2318	90	160	64	437000	534000	2800	4100	8.55
NUP2319	95	200	67	394000	496000	2600	4000	9.89
NUP2320	100	215	73	570000	717000	2400	3600	12.74
NUP2322	110	240	80	680000	880000	2200	3200	19.79
NUP2324	120	260	86	793000	1030000	2000	3000	24.33
NUP2326	130	280	93	920000	1230000	1800	2700	30.65
NUP2328	140	300	102	1020000	1380000	1700	2500	38.75
NUP2330	150	320	108	1180000	1600000	1500	2300	47.07
NUP304	20	52	15	31500	26900	12000	16000	0.161
NUP305	25	62	17	41600	37400	10000	14000	0.255
NUP306	30	72	19	53100	50200	8700	12000	0.38
NUP307	35	80	21	66600	65400	7700	10000	0.508
NUP308	40	90	23	83100	91500	6800	9100	0.699
NUP309	45	100	25	97400	98300	6100	8200	0.957
NUP310	50	110	27	110000	113000	5500	7400	1.211
NUP311	55	120	29	137000	143000	5100	6700	1.579
NUP312	60	130	31	150000	157000	4600	6200	1.969
NUP313	65	140	33	181000	191000	4300	5700	2.43
NUP314	70	150	35	205000	222000	4000	5300	2.95
NUP315	75	160	37	240000	263000	3700	5000	3.55
NUP316	80	170	39	259000	282000	3500	4700	4.22
NUP317	85	180	41	291000	330000	3300	4400	5.06
NUP318	90	160	43	316000	355000	3100	4100	5.76
NUP319	95	200	45	334000	387000	2900	3900	6.76
NUP320	100	215	47	379000	424000	2700	3600	8.16
NUP322	110	240	50	451000	525000	2400	3200	11.27
NUP324	120	260	55	528000	610000	2200	3000	14.11
NUP326	130	280	58	616000	736000	2000	2700	17.59
NUP328	140	300	62	663000	797000	1900	2500	21.48
NUP330	150	320	65	757000	922000	1700	2300	28.43
NUP406	30	90	23	62800	55000	7600	10000	0.793
NUP407	35	100	25	75200	68900	6600	8800	1.074
NUP408	40	110	27	97100	89100	6000	8000	1.369
NUP409	45	120	29	115000	112000	5400	7200	1.727
NUP410	50	130	31	139000	136000	4900	6600	2.117
NUP411	55	140	33	142000	138000	4600	6100	2.643
NUP412	60	150	35	178000	184000	4200	5700	3.18
NUP413	65	160	37	198000	203000	4000	5300	3.77
NUP414	70	180	42	246000	257000	3500	4700	5.54
NUP415	75	190	45	265000	274000	3300	4400	6.58
NUP416	80	200	48	302000	315000	3100	4200	7.66
NUP417	85	210	52	340000	350000	3000	4000	9.14
NUP418	90	225	54	374000	400000	2800	3700	10.84
NUP419	95	240	55	410000	444000	2600	3400	14.32
NUP420	100	250	58	458000	498000	2500	3300	14.74
NUP422	110	280	65	550000	621000	2200	2900	20.95
NUP424	120	310	72	690000	770000	1900	2600	29.49
NUP426	130	340	78	771000	876000	1800	2300	38.01
NUP428	140	360	82	874000	1020000	1600	2200	49.28
NUP430	150	380	85	930000	1120000	1500	2000	56.12
