SD 3000 SD3044

Technical Details

Bore Diameter (mm) d	Outer Diameter (mm) D	Width (mm) B	Weight (Kg)
200	340		125

KZ SERIES : SD 3034, SD 3040, SD 3044, SD 3068, SD 3092

SD 3000 SD3044 housing is also available for bearing with a cylindrical bore. For Bearing housings where the strength of grey cast iron material is still inadequate, these housings can also be supplied in cast steel or Spheroidal Graphite Iron (ductile)

Such bearing housings can support approximately twice the load permitted for grey cast iron housings
These bearing housings are dimensional interchangeable and suitable for bearings of an international company.
All housings are supplied as non located types. For locating type, suitable locating ring - bearing to be ordered separately

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send query Buy Now

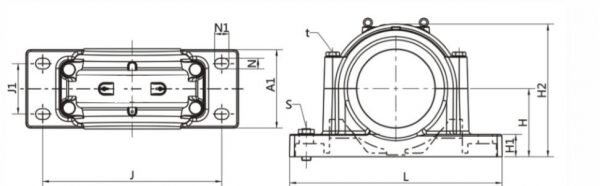

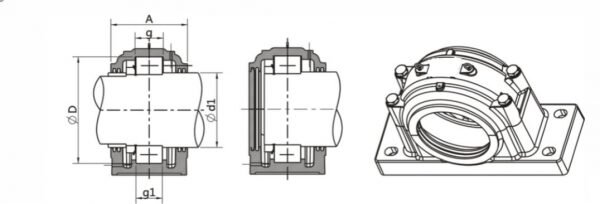

Bearing Number	Inner Diameter (d) MM	Outer Diameter (D) MM	L	a	s	g	t	H	J	A1	H1	H2	g1	N	N1	J1	Weight (KG)
SD3044	200	340	700	290	M30	100	M30	200	570	280	65	400	90	36	46	160	125
SD3048	220	360	740	300	M30	102	M30	210	610	290	65	420	92	36	46	170	140
SD3052	240	400	820	340	M36	114	M30	240	680	320	70	475	104	43	59	190	200
SD3056	260	420	860	350	M36	116	M36	250	710	340	85	500	106	43	59	200	230
SD3060	280	460	920	360	M36	128	M36	280	770	350	85	550	118	43	59	210	290
SD3064	300	480	940	380	M36	131	M36	280	790	360	85	560	121	43	59	210	300
SD3068	320	520	1020	400	M42	143	M36	310	860	370	100	615	133	50	67	230	400
SD3072	340	540	1060	410	M42	144	M36	325	890	390	100	640	134	50	67	250	450
SD3076	360	560	1080	410	M42	145	M36	340	900	390	100	665	135	50	67	260	470
SD3080	380	600	1140	430	M48	158	M42	365	960	420	120	710	148	57	77	270	750
SD3084	400	620	1160	430	M48	160	M42	375	980	420	120	735	150	57	77	270	830
SD3088	410	650	1220	460	M48	167	M42	380	1040	450	125	765	157	57	77	270	930
SD3092	430	680	1220	470	M48	173	M48	408	1040	460	130	800	163	57	77	310	1000
SD3096	450	700	1280	485	M48	175	M48	415	1100	470	130	820	165	57	77	320	1100
