SN 3000 - 3100 SN3024

Technical Details

Bore Diameter (mm) d	Outer Diameter (mm) D	Width (mm) B	Weight (Kg)
	180		16

KZ SERIES :SN 3024, SN 3034, SN 3040, SN 3128, SN 3138

The SN shape (standard shape) is a standard format specified by JIS, ISO, and DIN, and is the most widely used.

Features:

This SN3024 Plummer block is also available in JIS standard shapes, large shapes for heavy loads, and other special formats.
Uses a normal cast iron screw (FC200).
Can also be manufactured with ductile iron (FCD450) and cast steel (SC450) upon request.

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send query Buy Now

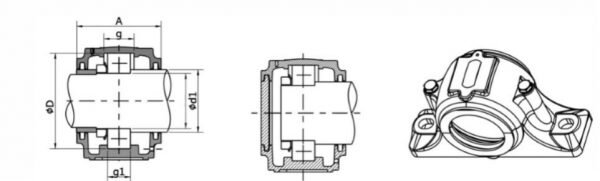

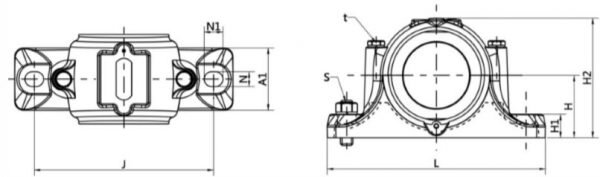

Bearing Number	Outer Diameter (D) MM	d1	L	a	s	g	t	H	J	A1	H1	H2	g1	N	N1	Weight (KG)
SN3024	180	110	380	150	M24	56	M20	112	320	110	40	223	46	26	32	16
SN3026	200	115	410	160	M24	62	M20	125	350	120	45	245	52	26	32	19
SN3028	210	125	410	170	M24	63	M20	140	350	120	45	270	53	26	32	25
SN3030	225	135	445	175	M24	66	M24	150	380	130	50	290	56	28	36	29
SN3032	240	140	450	190	M16	70	M24	150	390	130	50	300	60	28	36	32
SN3034	260	150	530	200	M30	77	M24	160	450	160	60	320	67	32	42	40
SN3036	280	160	550	210	M30	84	M24	170	470	160	60	340	74	33	42	50
SN3038	290	170	550	210	M30	85	M24	170	470	160	60	345	75	33	42	55
SN3040	310	180	610	230	M30	92	M30	180	515	170	60	365	82	35	45	63
SN3044	340	200	690	250	M30	100	M30	200	580	190	70	400	90	35	45	76
SN3122	180	100	345	140	M24	66	M20	112	320	110	35	223	56	26	32	18
SN3124	200	110	345	145	M24	72	M20	125	350	120	35	245	62	26	32	20
SN3126	210	115	380	155	M24	74	M20	140	350	120	40	270	64	26	32	26
SN3128	225	125	380	160	M24	78	M24	150	380	130	40	290	68	28	36	32
SN3130	250	135	410	170	M30	90	M24	150	420	150	45	305	80	33	42	38
SN3132	270	140	410	175	M30	96	M24	160	450	160	45	325	86	33	42	48
SN3134	280	150	450	190	M30	98	M24	170	470	160	50	340	88	33	42	58
SN3136	300	160	530	205	M30	106	M30	180	520	170	60	365	96	35	45	70
SN3138	320	170	550	215	M30	114	M30	190	560	180	60	385	104	35	45	90
