SAPP SAPP201
Technical Details
| Bore Diameter (mm) d | Outer Diameter (mm) D | Width (mm) B | Weight (Kg) |
|---|---|---|---|
| 12 | 0.17 |
KZ SERIES :SAPP 201, SAPP 201-8, SAPP 204, SAPP 205-16, SAPP 209-28
The pressed steel stand-up housing of SAPP SAPP201 is lighter in weight and smaller in size than the cast iron one. It is the smallest type among the stand-up type housing, however, it can only be applied in applications with low load. Designed for simple applications with limited loads and speeds, the SAPP SAPP201 unit provides a simple and effective bearing arrangement that accommodates moderate misalignment of mounting tolerances and is easy to mount on the associated equipment. we are able to design and manufacture more mounted bearing units with special sizes for different customers.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

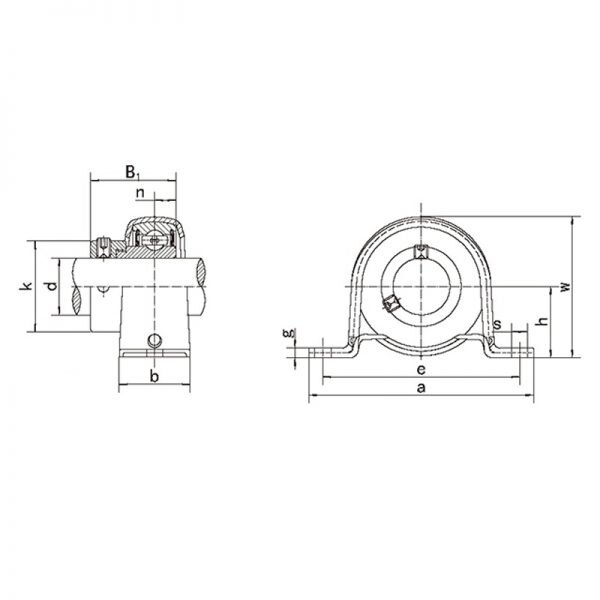

| Bearing Number | Inner Diameter (d) MM | Dimension-B1 (MM) | w | B Drawing | a | s | g | h | e | n | Bolt Size (MM) | Weight (KG) | Housing No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SAPP201 | 12 | 28.6 | 43.8 | 25 | 86 | 9.5 | 3.2 | 22.2 | 68 | 6.5 | M8 | 0.17 | PP204 |
| SAPP201-8 | 1/2 | 1.126 | 1-23/32 | 63/64 | 3-3/8 | 3/8 | 0.126 | 7/8 | 2-43/64 | 0.2559 | 15/16 | 0.17 | PP204 |
| SAPP202 | 15 | 1.126 | 1-23/32 | 63/64 | 3-3/8 | 3/8 | 0.126 | 7/8 | 2-43/64 | 0.2559 | 15/16 | 0.17 | PP204 |
| SAPP202-9 | 9/16 | 1.126 | 1-23/32 | 63/64 | 3-3/8 | 3/8 | 0.126 | 7/8 | 2-43/64 | 0.2559 | 15/16 | 0.17 | PP204 |
| SAPP202-10 | 5/8 | 1.126 | 1-23/32 | 63/64 | 3-3/8 | 3/8 | 0.126 | 7/8 | 2-43/64 | 0.2559 | 15/16 | 0.17 | PP204 |
| SAPP203 | 17 | 1.126 | 1-23/32 | 63/64 | 3-3/8 | 3/8 | 0.126 | 7/8 | 2-43/64 | 0.2559 | 15/16 | 0.17 | PP204 |
| SAPP203-11 | 11/16 | 1.126 | 1-23/32 | 63/64 | 3-3/8 | 3/8 | 0.126 | 7/8 | 2-43/64 | 0.2559 | 15/16 | 0.17 | PP204 |
| SAPP204 | 20 | 31 | 50.5 | 32 | 98 | 9.5 | 3.2 | 25.4 | 76 | 7.5 | M8 | 0.25 | PP204 |
| SAPP204-12 | 3/4 | 1.2204 | 1-63/64 | 1-1/4 | 3-27/32 | 3/8 | 0.126 | 1 | 2-63/64 | 0.2953 | 5/16 | 0.25 | PP204 |
| SAPP205 | 25 | 31 | 56.6 | 32 | 108 | 11.5 | 4 | 28.6 | 86 | 7.5 | M10 | 0.32 | PP205 |
| SAPP205-13 | 13/16 | 1.2204 | 2-15/64 | 1-1/4 | 4-1/4 | 29/64 | 0.157 | 1-1/8 | 3-25/64 | 0.2953 | 3/8 | 0.32 | PP205 |
| SAPP205-14 | 7/8 | 1.2204 | 2-15/64 | 1-1/4 | 4-1/4 | 29/64 | 0.157 | 1-1/8 | 3-25/64 | 0.2953 | 3/8 | 0.32 | PP205 |
| SAPP205-15 | 15/16 | 1.2204 | 2-15/64 | 1-1/4 | 4-1/4 | 29/64 | 0.157 | 1-1/8 | 3-25/64 | 0.2953 | 3/8 | 0.32 | PP205 |
| SAPP205-16 | 1 | 1.2204 | 2-15/64 | 1-1/4 | 4-1/4 | 29/64 | 0.157 | 1-1/8 | 3-25/64 | 0.2953 | 3/8 | 0.32 | PP205 |
| SAPP206 | 30 | 35.7 | 66.3 | 38 | 117 | 11.5 | 4 | 33.3 | 95 | 9 | M10 | 0.47 | PP206 |
| SAPP206-17 | 1-1/16 | 1.4055 | 2-39/64 | 1-1/2 | 4-39/64 | 29/64 | 0.157 | 1-5/16 | 3-47/64 | 0.3543 | 3/8 | 0.47 | PP206 |
| SAPP206-18 | 1-1/8 | 1.4055 | 2-39/64 | 1-1/2 | 4-39/64 | 29/64 | 0.157 | 1-5/16 | 3-47/64 | 0.3543 | 3/8 | 0.47 | PP206 |
| SAPP206-19 | 1-3/16 | 1.4055 | 2-39/64 | 1-1/2 | 4-39/64 | 29/64 | 0.157 | 1-5/16 | 3-47/64 | 0.3543 | 3/8 | 0.47 | PP206 |
| SAPP206-20 | 1-1/4 | 1.4055 | 2-39/64 | 1-1/2 | 4-39/64 | 29/64 | 0.157 | 1-5/16 | 3-47/64 | 0.3543 | 3/8 | 0.47 | PP206 |
| SAPP207 | 35 | 38.9 | 78 | 42 | 129 | 11.5 | 4.6 | 39.7 | 106 | 9.5 | M10 | 0.76 | PP207 |
| SAPP207-20 | 1-1/4 | 1.5315 | 3-1/8 | 1-21/32 | 5-5/64 | 29/64 | 0.181 | 1-9/16 | 4-5/32 | 0.374 | 3/8 | 0.76 | PP207 |
| SAPP207-21 | 1-5/16 | 1.5315 | 3-1/8 | 1-21/32 | 5-5/64 | 29/64 | 0.181 | 1-9/16 | 4-5/32 | 0.374 | 3/8 | 0.76 | PP207 |
| SAPP207-22 | 1-3/8 | 1.5315 | 3-1/8 | 1-21/32 | 5-5/64 | 29/64 | 0.181 | 1-9/16 | 4-5/32 | 0.374 | 3/8 | 0.76 | PP207 |
| SAPP207-23 | 1-7/16 | 1.5315 | 3-1/8 | 1-21/32 | 5-5/64 | 29/64 | 0.181 | 1-9/16 | 4-5/32 | 0.374 | 3/8 | 0.76 | PP207 |
| SAPP208 | 40 | 43.7 | 86.2 | 43 | 148 | 13 | 5 | 43.7 | 120 | 11 | M12 | 0.92 | PP208 |
| SAPP208-24 | 1-1/2 | 1.7205 | 3-25/64 | 1-11/16 | 5-53/64 | 33/64 | 0.197 | 1-23/32 | 4-47/64 | 0.433 | 7/16 | 0.92 | PP208 |
| SAPP208-25 | 1-9/16 | 1.7205 | 3-25/64 | 1-11/16 | 5-53/64 | 33/64 | 0.197 | 1-23/32 | 4-47/64 | 0.433 | 7/16 | 0.92 | PP208 |
| SAPP209 | 45 | 43.7 | 92.3 | 45 | 156 | 13 | 6 | 46.8 | 128 | 11 | M12 | 1.09 | PP209 |
| SAPP209-26 | 1-5/8 | 1.7205 | 3-41/64 | 1-25/32 | 6-9/64 | 33/64 | 0.236 | 1-27/32 | 5-3/64 | 0.433 | 7/16 | 1.09 | PP209 |
| SAPP209-27 | 1-11/16 | 1.7205 | 3-41/64 | 1-25/32 | 6-9/64 | 33/64 | 0.236 | 1-27/32 | 5-3/64 | 0.433 | 7/16 | 1.09 | PP209 |
| SAPP209-28 | 1-3/4 | 1.7205 | 3-41/64 | 1-25/32 | 6-9/64 | 33/64 | 0.236 | 1-27/32 | 5-3/64 | 0.433 | 7/16 | 1.09 | PP209 |
