POS POS28
Technical Details
| Bore Diameter (mm) d | Outer Diameter (mm) D | Width (mm) B | Weight (Kg) |
|---|---|---|---|
| 28 | 35 | 0.875 |
After a deep search of the current market, we have placed ourselves as the leading trader, retailer, and supplier of an impeccable collection of POS POS28 Rod End Bearing. In adherence to set industry standards, this bearing is manufactured by using the best quality raw material and sophisticated technology. We export bearing that is broadly demanded by the clients for its high strength and best quality. Moreover, our respected clients can avail of this bearing from us at the most competitive prices in the market.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

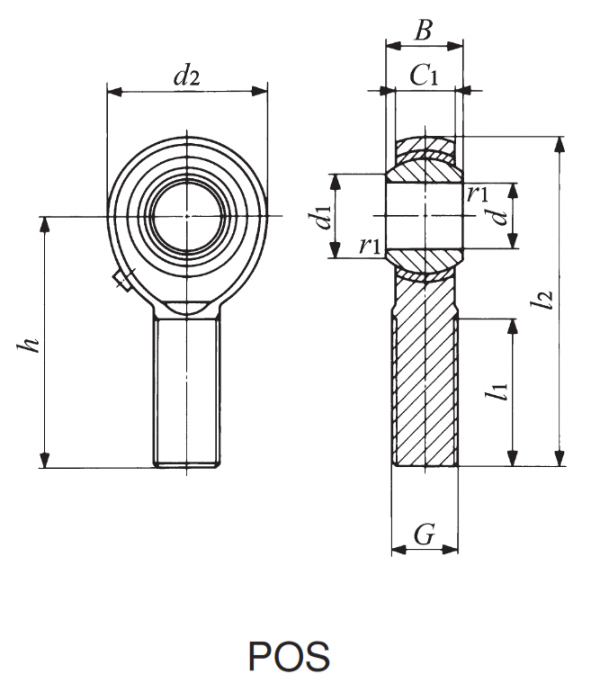

| Bearing Number | Inner Diameter (d) MM | Width (B) MM | d1 | L1 | L2 | Inch | Ball Diameter (MM) | Thread G | h | C1 (MM) | d2 | r1 Min | Dynamic Load Capacity | Static Load Capacity | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| POS28 | 28 | 35 | 32.3 | 62 | 136 | 1 7/8 | 47.625 | M27×2 | 103 | 25 | 66 | 0.6 | 58 400 | 87 000 | 0.875 |
| POS30 | 30 | 37 | 34.8 | 66 | 145 | 2 | 50.8 | M30×2 | 110 | 25 | 70 | 0.6 | 62 300 | 92 200 | 1.07 |
