GE DO 2RS GE12DO

Technical Details

Bore Diameter (mm) d	Outer Diameter (mm) D	Width (mm) B	Weight (Kg)
12	22	10	0.017

KZ SERIES : GE6DO, GE12DO, GE40DO, GE80DO, GE140DO

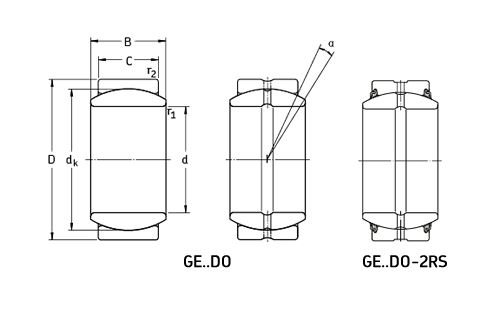

GE12DO Radial spherical plain bearings comprise inner and outer rings with maintenance-free sliding layers. They are thus suitable for alternating dynamic loads. Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds.

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send query Buy Now

Bearing Number	Inner Diameter (d) MM	Outer Diameter (D) MM	Width (B) MM	Width C	dk	r1 Min	r2 min	a	Dynamic	Static	Weight (KG)
GE12DO	12	22	10	7	18	0.3	0.3	11	10.8	54	0.017
GE15DO	15	26	12	9	22	0.3	0.3	8	17	85	0.027
GE16DO	16	30	14	10	25	0.3	0.3	10	21.2	106	0.044
GE17DO	17	30	14	10	25	0.3	0.3	10	21.2	106	0.041
GE20DO	20	35	16	12	29	0.3	0.3	9	30	146	0.065
GE25DO	25	42	20	16	35.5	0.6	0.6	7	48	240	0.12
GE30DO	30	47	22	18	40.7	0.6	0.6	6	62	310	0.15
GE35DO	35	55	25	20	47	0.6	1	6	80	400	0.23
GE40DO	40	62	28	22	53	0.6	1	7	100	500	0.32
GE45DO	45	68	32	25	60	0.6	1	7	127	640	0.41
GE50DO	50	75	35	28	66	0.6	1	6	156	780	0.53
GE60DO	60	90	44	36	80	1	1	6	245	1220	1
GE70DO	70	105	49	40	92	1	1	6	315	1560	1.5
GE80DO	80	120	55	45	105	1	1	6	400	2000	2.2
GE90DO	90	130	60	50	115	1	1	5	490	2450	2.7
GE100DO	100	150	70	55	130	1	1	7	610	3050	4.3
GE110DO	110	160	70	55	140	1	1	6	655	3250	4.7
GE120DO	120	180	85	70	160	1	1	6	950	4750	8
GE140DO	140	210	90	70	180	1	1	7	1080	5400	11
GE160DO	160	230	105	80	200	1	1	8	1370	6800	14
GE180DO	180	260	105	80	225	1.1	1.1	6	1530	7650	18.2
GE200DO	200	290	130	100	250	1.1	1.1	7	2120	10600	28.3
GE220DO2RS	220	320	135	100	275	1.1	1.1	8	2320	11600	35.4
GE240DO2RS	240	340	140	100	300	1.1	1.1	8	2550	12700	39.4
GE260DO2RS	260	370	150	110	325	1.1	1.1	7	3050	15300	51.1
GE280DO2RS	280	400	155	120	350	1.1	1.1	6	3550	18000	64.6
GE300DO2RS	300	430	165	120	375	1.1	1.1	7	3800	19000	77.3
GE320DO	320	440	160	135	380	1.1	3	4	4400	22000	76.4
GE340DO	340	460	160	135	400	1.1	3	3.8	4650	23200	81.6
GE360DO	360	480	160	135	420	1.1	3	3.6	4800	24000	84.2
GE380DO	380	520	190	160	450	1.5	4	4.1	6300	31500	129
GE400DO	400	540	190	160	470	1.5	4	3.9	6550	32500	133
GE420DO	420	560	190	160	490	1.5	4	3.7	6800	34500	138
GE440DO	440	600	218	185	520	1.5	4	3.9	8650	42300	193
GE460DO	460	620	218	185	540	1.5	4	3.7	9000	45000	200
GE480DO	480	650	230	195	565	2	5	3.8	9800	49000	237
GE500DO	500	670	230	195	585	2	5	3.6	10200	51000	244
GE530DO	530	710	243	205	620	2	5	3.7	11400	57000	289
GE560DO	560	750	258	215	655	2	5	4	12700	64000	325
GE600DO	600	800	272	230	700	2	5	3.6	14600	73500	407
GE630DO	630	850	300	260	740	3	6	3.3	17600	88000	525
GE670DO	670	900	308	260	785	3	6	3.7	19000	95000	594
GE710DO	710	950	325	275	830	3	6	3.7	21200	106000	693
GE750DO	750	1000	335	280	875	3	6	3.8	22800	114000	779
GE800DO	800	1060	355	300	930	3	6	3.6	26000	129000	920
GE850DO	850	1120	365	310	985	3	6	3.4	28500	143000	1047
GE900DO	900	1180	375	320	1040	3	6	3.2	31000	156000	1184
GE950DO	950	1250	400	340	1100	4	7.5	3.3	35500	176000	1420
GE1000DO	1000	1320	438	370	1160	4	7.5	3.5	40500	204000	1742
