Spherical Roller Bearing 24024

Technical Details

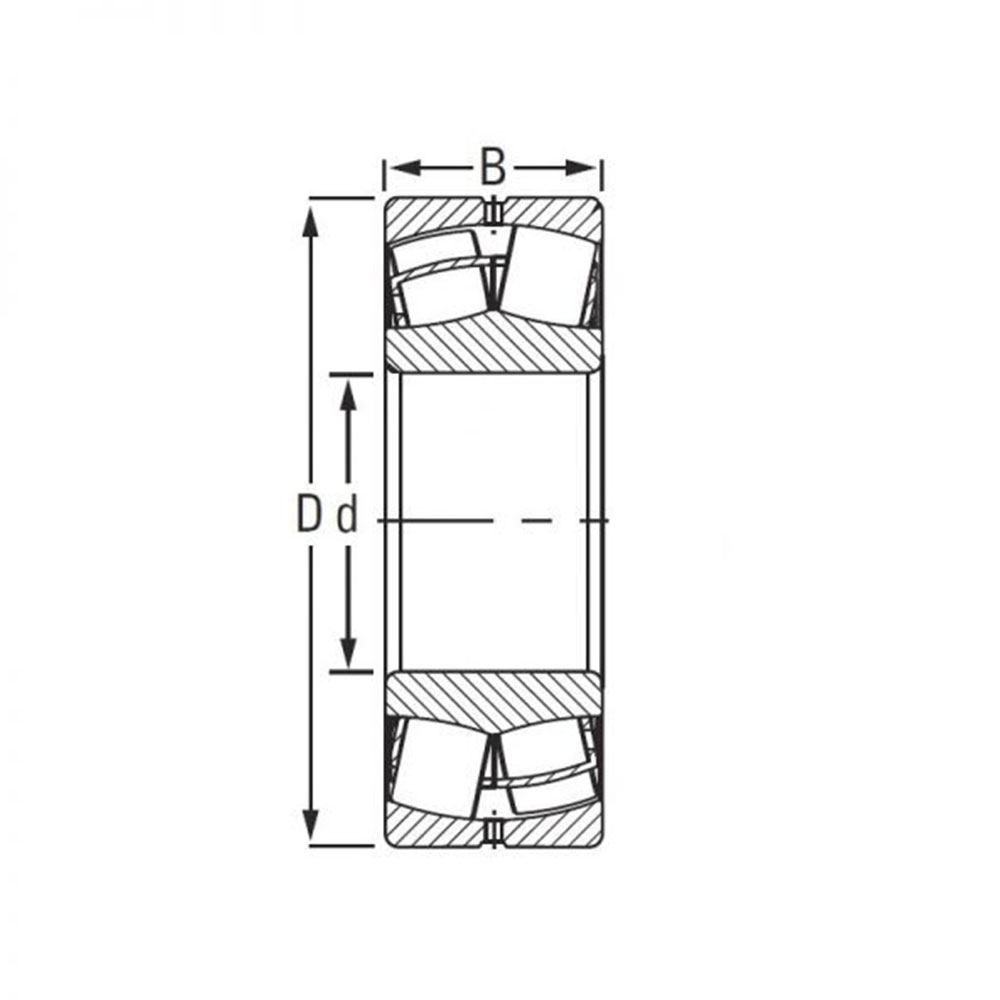

Bore Diameter (mm) d	Outer Diameter (mm) D	Width (mm) B	Weight (Kg)
120	180	60	5.48

KZ SERIES : 21306, 21304, 22205, 22308, 23026, 23120, 23120, 24024, 24122

MATERIAL : Chrome Steel SAE52100/100Cr6/GCr15

Spherical roller bearings 24024 have asymmetrically sphered or barrel shaped rollers. These bearings have two inner ring raceways and a common spherical raceway on the outer ring. Typically these bearings support a rotating shaft in the bore of the inner ring that may be misaligned in respect to the outer ring. The misalignment is possible due to the spherical internal shape of the outer ring and spherical rollers. These bearings are suitable for applications where the shaft relative to the housing bore is prone to angular misalignment.

Types : PLAIN AND TAPER BORE

CAGE DESIGNS : CA, CC, MB, MA, E, E1,

Applications and industry: CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send query Buy Now

Bearing Number	Inner Diameter (d) MM	Outer Diameter (D) MM	Width (B) MM	Basic Load Rating (N) Dyn. C	Basic Load Rating (N) Stat. C0	LIMITTING SPEED ( R/MIN ) LUBRICATION Grease	LIMITTING SPEED ( R/MIN ) LUBRICATION Oil	Weight (KG)
24024	120	180	60	280	500	1700	2300	5.48
24026	130	200	69	355	610	1600	2100	8.08
24028	140	210	69	370	675	1500	1900	8.57
24030	150	225	75	420	780	1400	1900	10.7
24032	160	240	80	490	900	1200	1600	13
24034	170	260	90	600	1095	1200	1600	17.7
24036	180	280	100	700	1300	1100	1400	23.3
24038	190	290	100	730	1350	1100	1400	24.3
24040	200	310	109	840	1590	1000	1360	31
24044	220	340	118	1020	1950	900	1170	40.2
24048	240	360	118	1035	2025	850	1090	43
24052	260	400	140	1320	2580	750	970	65.2
24056	280	420	140	1400	2850	700	910	69
24060	300	460	160	1760	3560	600	780	98
24064	320	480	160	1860	3825	600	770	103
24068	340	520	180	2240	4650	550	700	140
24072	360	540	180	2330	4910	500	640	147
24076	380	560	180	2370	5100	500	620	153
24080	400	600	200	2715	5850	475	475	202
24084	420	620	200	2800	6100	400	450	210
24088	440	650	212	3060	6600	375	425	245
24092	460	680	218	3270	7100	350	400	276
24096	480	700	218	3360	7500	350	375	285
24122	110	180	69	345	560	1150	1750	6.52
24124	120	200	80	430	710	1000	1600	10.1
24126	130	210	80	440	750	1000	1500	10.2
24128	140	225	85	500	870	930	1330	12.4
24130	150	250	100	670	1140	850	1350	18.7
24132	160	270	109	780	1320	750	1150	24.3
24134	170	280	109	800	1390	720	1120	25.6
24136	180	300	118	915	1620	680	980	32.1
24138	190	320	128	1050	1875	630	930	40.1
24140	200	340	140	1185	2100	590	950	50.1
24144	220	370	150	1380	2510	530	800	62.5
24148	240	400	160	1575	2900	500	740	78.8
24152	260	440	180	1960	3600	450	670	108
24156	280	460	180	2000	3825	425	635	114
24160	300	500	200	2460	4720	380	560	152
24164	320	540	218	2800	5325	360	530	196
24168	340	580	243	3495	6480	340	490	225
24172	380	600	243	3360	6480	320	460	265
24176	380	620	243	3450	6860	220	340	292
24180	400	650	250	3660	7300	200	300	329
24184	420	700	280	4310	8550	180	250	440
24188	440	720	280	4485	9150	180	250	456
24192	460	760	300	5430	10950	170	220	550
24196	480	790	308	5430	11250	160	200	608
