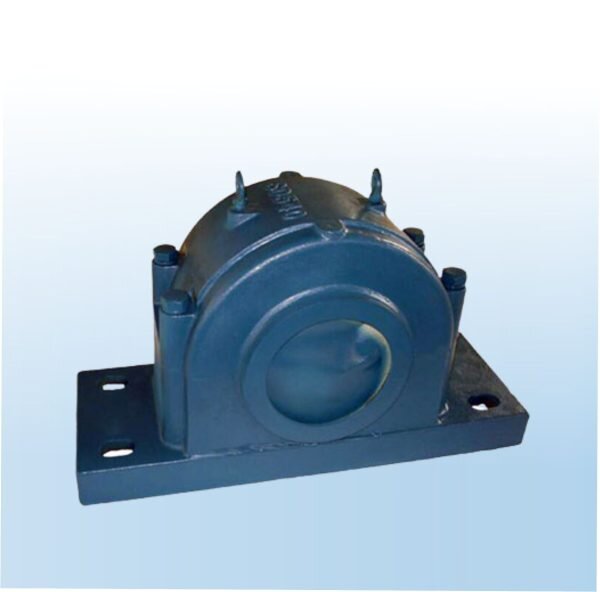

• SD 500 600 | KG Bearing

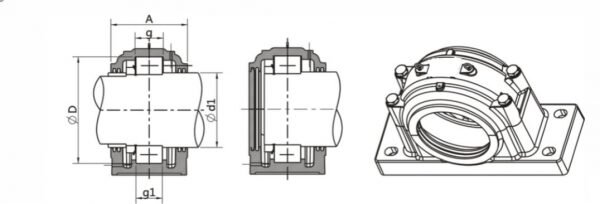

  • SD 500 600 Line Drawing | KG Bearing

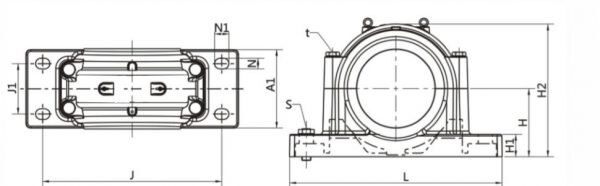

  • SD 500 600 Line Drawing | KG Bearing

SD 500 600

KZ SERIES : SD534, SD540, SD560, SD640, SD652

Plummer Blocks

  • SD 500 & SD 600 Housing is available for bearing with a cylindrical bore.
  • For bearing housings where the strength of grey Cast Iron material is still inadequate, these housings can also be supplied in cast steel or Spheroidal Graphite Iron (ductile). Such bearing housings can support approximately twice the load permitted for grey cast iron housings.

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send Query WhatsApp Us
Bearing Number Inner Diameter (d) MM Outer Diameter (D) MM L a s t G H J A1 H1 H2 g1 N N1 J1 Weight (KG)
SD534 150 310 620 270 M30 M24 86 180 510 230 60 360 96 32 52 140 92
SD536 160 320 650 280 M30 M24 89 190 540 240 60 380 96 32 52 150 105
SD538 170 340 700 290 M30 M30 92 200 570 260 65 400 102 35 55 160 125
SD540 180 360 740 300 M30 M30 98 210 610 270 65 420 108 35 55 170 140
SD544 200 400 820 330 M36 M30 108 240 680 300 70 475 118 40 60 190 200
SD548 220 440 880 340 M36 M36 120 260 740 310 85 515 130 42 62 200 230
SD552 240 480 940 370 M36 M36 130 280 790 340 85 560 140 42 62 210 300
SD556 260 500 990 390 M42 M36 130 300 830 370 100 590 140 50 70 230 350
SD560 280 540 1060 410 M42 M36 140 325 890 390 100 640 150 50 70 250 450
SD564 300 580 1110 440 M48 M42 150 355 930 420 110 690 160 57 77 270 550
SD634 150 360 740 300 M30 M30 120 210 610 270 65 420 130 35 55 170 140
SD636 160 380 780 320 M36 M30 126 225 640 290 70 450 136 40 60 180 170
SD638 170 400 820 330 M36 M30 132 240 680 300 70 475 142 40 60 190 200
SD640 180 420 860 350 M36 M36 138 250 710 320 85 500 148 42 62 200 230
SD644 200 460 920 360 M36 M36 145 280 770 330 85 550 155 42 62 210 290
SD648 220 500 990 390 M42 M36 155 300 830 370 100 590 165 50 70 230 350
SD652 240 540 1060 410 M42 M36 165 325 890 390 100 640 175 50 70 250 450
SD656 260 580 1110 440 M48 M42 175 355 930 420 110 690 185 57 77 270 550
