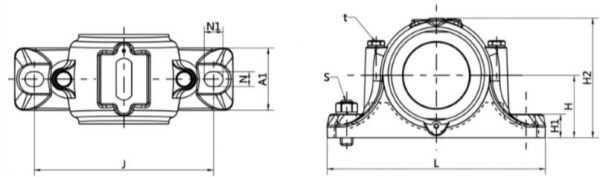

  • SN 3000 - 3100 Line Drawing | KG Bearing
  • SN 3000 - 3100 Line Drawing | KG Bearing

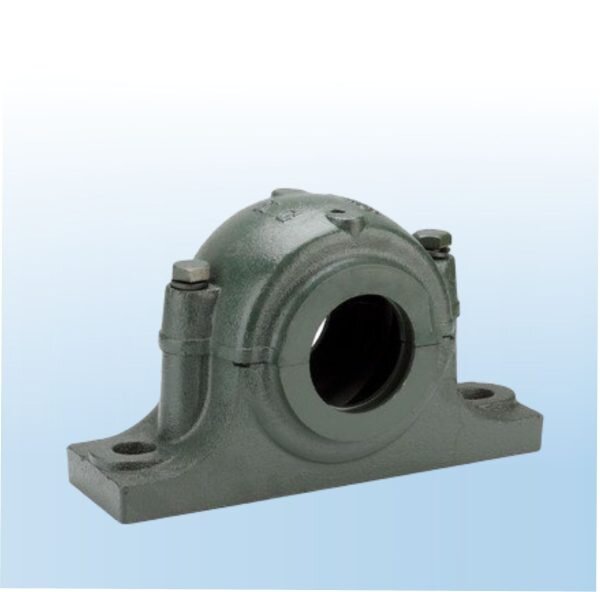

SN 3000 - 3100

KZ SERIES :SN 3024, SN 3034, SN 3040, SN 3128, SN 3138

Plummer Blocks

The SN shape (standard shape) is a standard format specified by JIS, ISO, and DIN, and is the most widely used.

Features:

  • This Plummer block is also available in JIS standard shapes, large shapes for heavy loads, and other special formats.
  • Uses a normal cast iron screw (FC200).
  • Can also be manufactured with ductile iron (FCD450) and cast steel (SC450) upon request.

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send Query WhatsApp Us
Bearing Number Outer Diameter (D) MM d1 L a s g t H J A1 H1 H2 g1 N N1 Weight (KG)
SN3024 180 110 380 150 M24 56 M20 112 320 110 40 223 46 26 32 16
SN3026 200 115 410 160 M24 62 M20 125 350 120 45 245 52 26 32 19
SN3028 210 125 410 170 M24 63 M20 140 350 120 45 270 53 26 32 25
SN3030 225 135 445 175 M24 66 M24 150 380 130 50 290 56 28 36 29
SN3032 240 140 450 190 M16 70 M24 150 390 130 50 300 60 28 36 32
SN3034 260 150 530 200 M30 77 M24 160 450 160 60 320 67 32 42 40
SN3036 280 160 550 210 M30 84 M24 170 470 160 60 340 74 33 42 50
SN3038 290 170 550 210 M30 85 M24 170 470 160 60 345 75 33 42 55
SN3040 310 180 610 230 M30 92 M30 180 515 170 60 365 82 35 45 63
SN3044 340 200 690 250 M30 100 M30 200 580 190 70 400 90 35 45 76
SN3122 180 100 345 140 M24 66 M20 112 320 110 35 223 56 26 32 18
SN3124 200 110 345 145 M24 72 M20 125 350 120 35 245 62 26 32 20
SN3126 210 115 380 155 M24 74 M20 140 350 120 40 270 64 26 32 26
SN3128 225 125 380 160 M24 78 M24 150 380 130 40 290 68 28 36 32
SN3130 250 135 410 170 M30 90 M24 150 420 150 45 305 80 33 42 38
SN3132 270 140 410 175 M30 96 M24 160 450 160 45 325 86 33 42 48
SN3134 280 150 450 190 M30 98 M24 170 470 160 50 340 88 33 42 58
SN3136 300 160 530 205 M30 106 M30 180 520 170 60 365 96 35 45 70
SN3138 320 170 550 215 M30 114 M30 190 560 180 60 385 104 35 45 90
