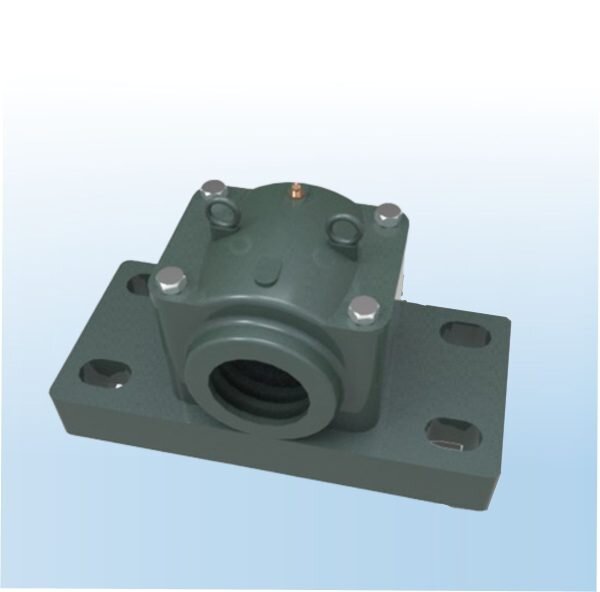

SD 3000
SD 3000 housing is also available for bearing with a cylindrical bore. For Bearing housings where the strength of grey cast iron material is still inadequate, these housings can also be supplied in cast steel or Spheroidal Graphite Iron (ductile)
- Such bearing housings can support approximately twice the load permitted for grey cast iron housings
- These bearing housings are dimensional interchangeable and suitable for bearings of an international company.
- All housings are supplied as non located types. For locating type, suitable locating ring - bearing to be ordered separately
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY
| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | Basic Load Rating (N) Dyn. C | Basic Load Rating (N) Stat. C0 | LIMITTING SPEED ( R/MIN ) LUBRICATION Grease | LIMITTING SPEED ( R/MIN ) LUBRICATION Oil | Weight (KG) |
|---|---|---|---|---|---|---|---|---|
| SD3034 | 150 | 260 | 62 | |||||
| SD3036 | 160 | 280 | 78 | |||||
| SD3038 | 160 | 280 | 82 | |||||
| SD3040 | 180 | 310 | 92 | |||||
| SD3044 | 200 | 340 | 125 | |||||
| SD3048 | 220 | 360 | 140 | |||||
| SD3052 | 240 | 400 | 200 | |||||
| SD3056 | 260 | 420 | 230 | |||||
| SD3060 | 280 | 460 | 290 | |||||
| SD3064 | 300 | 480 | 300 | |||||
| SD3068 | 320 | 520 | 400 | |||||
| SD3072 | 340 | 540 | 450 | |||||
| SD3076 | 360 | 560 | 470 | |||||
| SD3080 | 380 | 600 | 750 | |||||
| SD3084 | 400 | 620 | 830 | |||||
| SD3088 | 410 | 650 | 930 | |||||
| SD3092 | 430 | 680 | 1000 | |||||
| SD3096 | 450 | 700 | 1100 |
