GE FW 2RS GE25FW
Technical Details
| Bore Diameter (mm) d | Outer Diameter (mm) D | Width (mm) B | Weight (Kg) |
|---|---|---|---|
| 25 | 47 | 28 | 0.2 |
KZ SERIES : GE6FW, GE12FW, GE25FW, GE50FW-2RS, GE180FW-2RS
- Maintenance-free spherical plain bearing.
- Wider inner ring and larger outside diameter.
- The sliding layer of the inner ring is chromium plated.
Maintenance-free Spherical Plain Bearing GE25FW with an outer ring of steel. The inner ring of hard chromed plated steel. Wider inner ring and larger outer diameter. With integrated seals.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

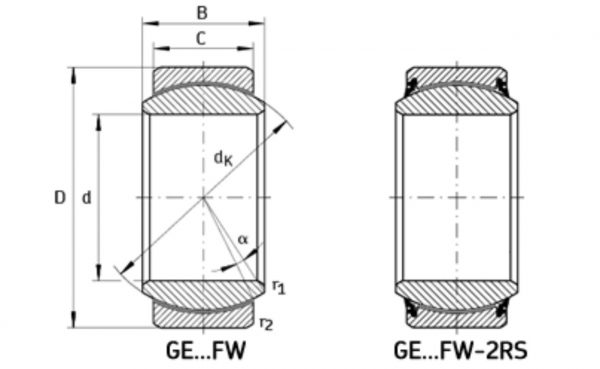

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | Width C | Height | dk | r1 Min | r2 min | a | Dynamic | Static | Weight (KG) | GOST | BCA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GE25FW | 25 | 47 | 28 | 18 | 40.7 | 0.6 | 0.6 | 17 | 65.5 | 166 | 0.2 | |||
| GE30FW-2RS | 30 | 55 | 32 | 20 | 47 | 0.6 | 1 | 17 | 210 | 350 | 0.28 | |||
| GE35FW-2RS | 35 | 62 | 35 | 22 | 53 | 0.6 | 1 | 16 | 277 | 462 | 0.38 | |||
| GE40FW-2RS | 40 | 68 | 40 | 25 | 60 | 0.6 | 1 | 17 | 360 | 600 | 0.53 | |||
| GE45FW-2RS | 45 | 75 | 43 | 28 | 66 | 0.6 | 1 | 15 | 442 | 737 | 0.67 | |||
| GE50FW-2RS | 50 | 90 | 56 | 36 | 80 | 0.6 | 1 | 17 | 690 | 1150 | 1.4 | |||
| GE60FW-2RS | 60 | 105 | 63 | 40 | 92 | 1 | 1 | 17 | 885 | 1475 | 2.1 | |||
| GE70FW-2RS | 70 | 120 | 70 | 45 | 105 | 1 | 1 | 16 | 1125 | 1875 | 3 | |||
| GE80FW-2RS | 80 | 130 | 75 | 50 | 115 | 1 | 1 | 14 | 1380 | 2300 | 3.6 | |||
| GE90FW-2RS | 90 | 150 | 85 | 55 | 130 | 1 | 1 | 15 | 1717 | 2862 | 5.3 | |||
| GE100FW-2RS | 100 | 160 | 85 | 55 | 140 | 1 | 1 | 14 | 1845 | 3075 | 6 | |||
| GE110FW-2RS | 110 | 180 | 100 | 70 | 160 | 1 | 1 | 12 | 2685 | 4475 | 9.8 | |||
| GE120FW-2RS | 120 | 210 | 115 | 70 | 180 | 1 | 1 | 16 | 3015 | 5025 | 14.6 | |||
| GE140FW-2RS | 140 | 230 | 130 | 80 | 200 | 1 | 1 | 16 | 3840 | 6400 | 18.6 | |||
| GE160FW-2RS | 160 | 260 | 135 | 80 | 225 | 1 | 1.1 | 16 | 4320 | 7200 | 24.9 | |||
| GE180FW-2RS | 180 | 290 | 155 | 100 | 250 | 1.1 | 1.1 | 14 | 6000 | 10000 | 33.6 | |||
| GE200FW-2RS | 200 | 320 | 165 | 100 | 275 | 1.1 | 1.1 | 15 | 6600 | 11000 | 44.7 | |||
| GE220FW-2RS | 220 | 340 | 175 | 100 | 300 | 1.1 | 1.1 | 16 | 7200 | 12000 | 50.8 | |||
| GE240FW-2RS | 240 | 370 | 190 | 110 | 325 | 1.1 | 1.1 | 15 | 8550 | 14250 | 64 | |||
| GE260FW-2RS | 260 | 400 | 205 | 120 | 350 | 1.1 | 1.1 | 15 | 10050 | 16750 | 81.8 | |||
| GE280FW-2RS | 280 | 430 | 210 | 120 | 375 | 1.1 | 1.1 | 15 | 10800 | 18000 | 96.5 | |||
