GE LO HO 2RS

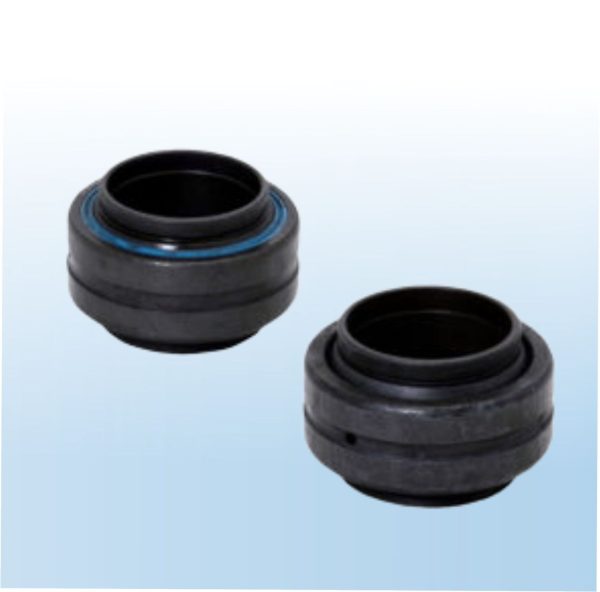

- Radial Spherical Plain Bearings.
- Sliding contact surfaces: Steel/Steel.
- Outer ring with a single split in the axial direction.
- Both outer and inner rings are made of carbon chromium steel, hardening and phosphate treated, sliding surface treated with Molybdenum disulfide Chemical compound.
- Lubricating grooves and holes in the outer and inner rings of type ES.
- The outer ring of type 2RS with lip seals in both sides.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

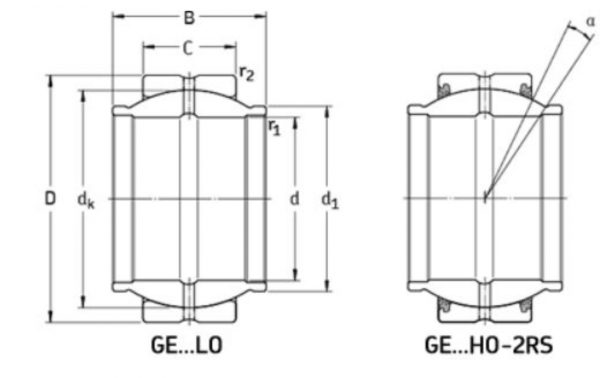

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | Width C | dk | d2 | r1 Min | r2 min | a | Dynamic | Static | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GE12LO | 12 | 22 | 12 | 7 | 18 | 15.5 | 0.3 | 0.3 | 4 | 10.8 | 54 | 0.017 |
| GE16LO | 16 | 28 | 16 | 9 | 23 | 20 | 0.3 | 0.3 | 4 | 17.6 | 88 | 0.035 |
| GE20LO | 20 | 35 | 20 | 12 | 29 | 25 | 0.3 | 0.3 | 4 | 30 | 146 | 0.067 |
| GE20H0-2RS | 20 | 35 | 24 | 12 | 29 | 24 | 0.2 | 0.3 | 3 | 30 | 146 | 0.069 |
| GE25LO | 25 | 42 | 25 | 16 | 35.5 | 30 | 0.6 | 0.6 | 4 | 48 | 240 | 0.12 |
| GE25H0-2RS | 25 | 42 | 29 | 16 | 35.5 | 29 | 0.2 | 0.6 | 3 | 48 | 240 | 0.12 |
| GE30H0-2RS | 30 | 47 | 30 | 18 | 40.7 | 34.2 | 0.2 | 0.6 | 3 | 62 | 310 | 0.15 |
| GE32LO | 32 | 52 | 32 | 18 | 44 | 38 | 0.6 | 1 | 4 | 67 | 335 | 0.21 |
| GE35H0-2RS | 35 | 55 | 35 | 20 | 47 | 40 | 0.3 | 1 | 3 | 80 | 400 | 0.26 |
| GE40LO | 40 | 62 | 40 | 22 | 53 | 46 | 0.6 | 1 | 4 | 100 | 500 | 0.33 |
| GE40H0-2RS | 40 | 62 | 38 | 22 | 53 | 45 | 0.3 | 1 | 3 | 100 | 500 | 0.32 |
| GE45H0-2RS | 45 | 68 | 40 | 25 | 60 | 51.5 | 0.3 | 1 | 3 | 127 | 640 | 0.43 |
| GE50LO | 50 | 75 | 50 | 28 | 66 | 57 | 0.6 | 1 | 4 | 156 | 780 | 0.59 |
| GE50H0-2RS | 50 | 75 | 43 | 28 | 66 | 56.5 | 0.3 | 1 | 3 | 156 | 780 | 0.55 |
| GE60H0-2RS | 60 | 90 | 54 | 36 | 80 | 67.7 | 0.3 | 1 | 3 | 245 | 1220 | 1.1 |
| GE63LO | 63 | 95 | 63 | 36 | 83 | 71.5 | 1 | 1 | 4 | 255 | 1270 | 1.3 |
| GE7OLO | 70 | 105 | 70 | 40 | 92 | 79 | 1 | 1 | 4 | 315 | 1560 | 1.6 |
| GE70H0-2RS | 70 | 105 | 65 | 40 | 92 | 78 | 0.3 | 1 | 3 | 315 | 1560 | 1.6 |
| GE80LO | 80 | 120 | 80 | 45 | 105 | 91 | 1 | 1 | 4 | 400 | 2000 | 2.6 |
| GE80H0-2RS | 80 | 120 | 74 | 45 | 105 | 90 | 0.3 | 1 | 3 | 400 | 2000 | 2.5 |
| GE90LO | 90 | 130 | 90 | 50 | 115 | 99 | 1 | 1 | 4 | 490 | 2450 | 3 |
| GE100LO | 100 | 150 | 100 | 55 | 130 | 113 | 1 | 1 | 4 | 610 | 3050 | 4.7 |
| GE110LO | 110 | 160 | 110 | 55 | 140 | 124 | 1 | 1 | 4 | 655 | 3250 | 5.5 |
| GE125LO | 125 | 180 | 125 | 70 | 160 | 138 | 1 | 1 | 4 | 950 | 4750 | 8.1 |
| GE160LO | 160 | 230 | 160 | 80 | 200 | 177 | 1 | 1 | 4 | 1370 | 6800 | 15.8 |
| GE200LO | 200 | 290 | 200 | 100 | 250 | 221 | 1.1 | 1.1 | 4 | 2120 | 10600 | 32.5 |
| GE250LO | 250 | 400 | 250 | 120 | 350 | 317 | 2.5 | 1.1 | 4 | 3550 | 18000 | 102 |
| GE320LO | 320 | 520 | 320 | 160 | 450 | 405 | 2.5 | 4 | 4 | 6100 | 30500 | 224 |
