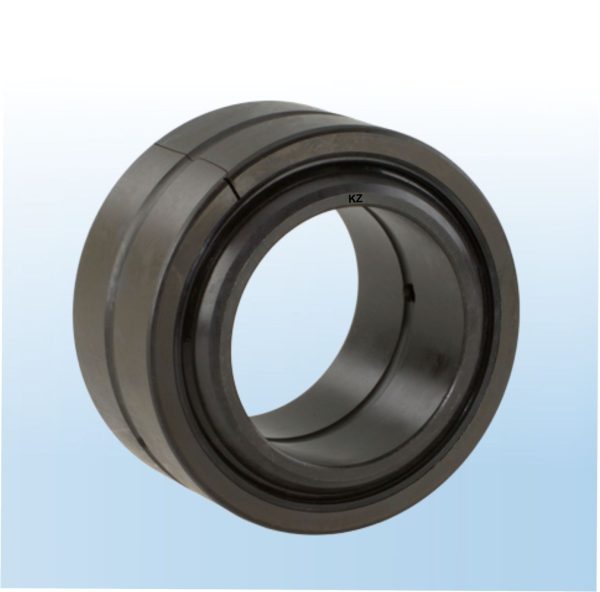

GEZ ES 2RS
We are the best Exporter of GEZ ES 2RS Spherical Plain Bearings or Radial Spherical Plain Bearing which are known in the market for their superior quality and performance. These are widely used in various devices and are long-sustainable. Our quality-tested products are procured from reliable sources and are high in demand. We supply them all across the nation at the most economical market price range.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

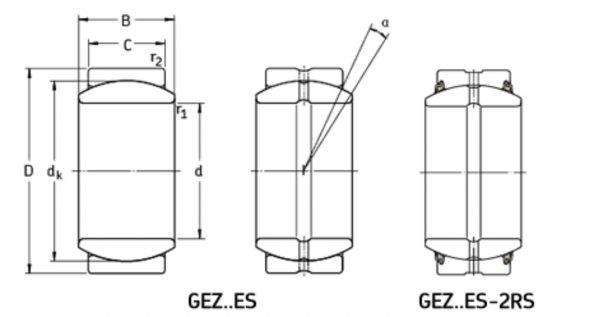

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | Width C | dk | r1 Min | r2 min | a | Dynamic | Static | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GEZ008ES | 12.7 | 22.225 | 11.1 | 9.525 | 18.263 | 0.15 | 0.6 | 6 | 14 | 41.5 | 0.02 |
| GEZ010ES | 15.875 | 26.966 | 13.894 | 11.913 | 22.835 | 0.15 | 1 | 6 | 21.6 | 65.5 | 0.035 |
| GEZ012ES | 19.05 | 31.75 | 16.662 | 14.275 | 27.432 | 0.3 | 1 | 6 | 31.5 | 93 | 0.055 |
| GEZ014ES | 22.225 | 36.513 | 19.431 | 16.662 | 31.953 | 0.3 | 1 | 6 | 42.5 | 127 | 0.85 |
| GEZ100ES | 25.4 | 41.275 | 22.225 | 19.05 | 36.5 | 0.3 | 1 | 6 | 56 | 166 | 0.12 |
| GEZ104ES | 31.75 | 50.8 | 27.762 | 23.8 | 45.593 | 0.6 | 1 | 6 | 86.5 | 260 | 0.23 |
| GEZ106ES | 34.925 | 55.563 | 30.15 | 26.187 | 49.2 | 0.6 | 1 | 5 | 104 | 310 | 0.35 |
| GEZ108ES | 38.1 | 61.913 | 33.325 | 28.575 | 54.737 | 0.6 | 1 | 6 | 125 | 375 | 0.42 |
| GEZ112ES | 44.45 | 71.438 | 38.887 | 33.325 | 63.881 | 0.6 | 1 | 6 | 170 | 510 | 0.64 |
| GEZ200ES | 50.8 | 80.963 | 44.45 | 38.1 | 73.025 | 0.6 | 1 | 6 | 224 | 670 | 0.93 |
| GEZ204ES | 57.15 | 90.488 | 50.013 | 42.85 | 82.169 | 0.6 | 1 | 6 | 280 | 850 | 1.3 |
| GEZ208ES | 63.5 | 100.013 | 55.55 | 47.625 | 91.186 | 0.6 | 1 | 6 | 345 | 1040 | 1.85 |
| GEZ212ES | 69.85 | 111.125 | 61.112 | 52.375 | 100.33 | 0.6 | 1 | 6 | 425 | 1270 | 2.4 |
| GEZ300ES | 76.2 | 120.65 | 66.675 | 57.15 | 109.525 | 0.6 | 1 | 6 | 500 | 1500 | 3.1 |
| GEZ304ES | 82.55 | 130.175 | 72.238 | 61.9 | 118.745 | 0.6 | 1 | 6 | 585 | 1760 | 3.8 |
| GEZ308ES | 88.9 | 139.7 | 77.775 | 66.675 | 128.016 | 0.6 | 1 | 6 | 680 | 2040 | 4.8 |
| GEZ312ES | 95.25 | 149.225 | 83.337 | 71.425 | 136.906 | 0.6 | 1 | 6 | 780 | 2360 | 5.8 |
| GEZ400ES | 101.6 | 158.75 | 88.9 | 76.2 | 146.05 | 0.6 | 1 | 6 | 900 | 2650 | 7 |
| GEZ408ES | 114.3 | 177.8 | 100 | 85.725 | 164.465 | 1 | 1.1 | 6 | 1120 | 3400 | 9.8 |
| GEZ412ES | 120.65 | 187.325 | 105.562 | 90.475 | 173.355 | 1 | 1.1 | 6 | 1250 | 3750 | 11.5 |
| GEZ500ES | 127 | 196.85 | 111.125 | 95.25 | 182.626 | 1 | 1.1 | 6 | 1400 | 4150 | 13.5 |
| GEZ600ES | 152.4 | 222.25 | 120.65 | 104.775 | 207.162 | 1 | 1.1 | 5 | 1730 | 5200 | 17.5 |
