GEH ES 2RS
Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds, often accompanied by heavy loads.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

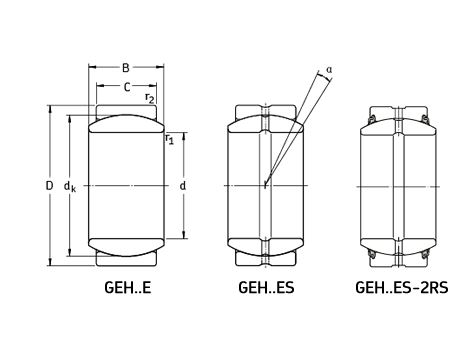

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | Width C | a | Height | dk | r1 Min | r2 min | Basic Load Rating (N) Dyn. C | Basic Load Rating (N) Stat. C0 | Weight (KG) | GOST | BCA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GEH4E | 4 | 14 | 7 | 4 | 10 | 0.3 | 0.3 | 0.005 | ||||||
| GEH5E | 5 | 16 | 9 | 5 | 13 | 0.3 | 0.3 | 0.008 | ||||||
| GEH6E | 6 | 16 | 9 | 5 | 13 | 0.3 | 0.3 | 0.006 | ||||||
| GEH8E | 8 | 19 | 11 | 6 | 16 | 0.3 | 0.3 | 0.014 | ||||||
| GEH10E | 10 | 22 | 12 | 7 | 18 | 0.3 | 0.3 | 0.021 | ||||||
| GEH12E | 12 | 26 | 15 | 9 | 22 | 0.3 | 0.3 | 0.03 | ||||||
| GEH15ES | 15 | 30 | 16 | 10 | 25 | 0.3 | 0.3 | 0.05 | ||||||
| GEH17ES | 17 | 35 | 20 | 12 | 29 | 0.3 | 0.3 | 0.08 | ||||||
| GEH20ES | 20 | 42 | 25 | 16 | 35.5 | 0.3 | 0.6 | 0.16 | ||||||
| GEH25ES | 25 | 47 | 28 | 18 | 40.7 | 0.6 | 0.6 | 0.2 | ||||||
| GEH30ES | 30 | 55 | 32 | 20 | 47 | 0.6 | 1 | 0.304 | ||||||
| GEH35ES | 35 | 62 | 36 | 22 | 53 | 0.6 | 1 | 0.408 | ||||||
| GEH40ES | 40 | 68 | 40 | 25 | 60 | 0.6 | 1 | 0.542 | ||||||
| GEH45ES | 45 | 75 | 43 | 28 | 66 | 0.6 | 1 | 0.713 | ||||||
| GEH50ES | 50 | 90 | 56 | 36 | 80 | 0.6 | 1 | 1.44 | ||||||
| GEH60ES | 60 | 105 | 63 | 40 | 92 | 1 | 1 | 1.6 | ||||||
| GEH70ES | 70 | 120 | 70 | 45 | 105 | 1 | 1 | 3 | ||||||
| GEH80ES | 80 | 130 | 75 | 50 | 115 | 1 | 1 | 3.64 | ||||||
| GEH90ES | 90 | 150 | 85 | 55 | 130 | 1 | 1 | 5.22 | ||||||
| GEH100ES | 100 | 160 | 85 | 55 | 140 | 1 | 1 | 6.1 | ||||||
| GEH110ES | 110 | 180 | 100 | 70 | 160 | 1 | 1 | 9.68 | ||||||
| GEH120ES | 120 | 210 | 115 | 70 | 180 | 1 | 1 | 14.8 | ||||||
| GEH140ES | 140 | 230 | 130 | 80 | 200 | 1 | 1 | 19 | ||||||
| GEH160ES | 160 | 260 | 135 | 80 | 225 | 1.1 | 1.1 | 20 | ||||||
| GEH180ES | 180 | 290 | 155 | 100 | 250 | 1.1 | 1.1 | 32.2 | ||||||
| GEH200ES | 200 | 320 | 165 | 100 | 275 | 1.1 | 1.1 | 45.28 | ||||||
| GEH220ES | 220 | 340 | 175 | 100 | 300 | 1.1 | 1.1 | 51 | ||||||
| GEH240ES | 240 | 370 | 190 | 110 | 325 | 1.1 | 1.1 | 65.12 | ||||||
| GEH260ES | 260 | 400 | 205 | 120 | 350 | 1.1 | 1.1 | 82.5 | ||||||
| GEH280ES | 280 | 430 | 210 | 120 | 375 | 1.1 | 1.1 | 97.21 |
