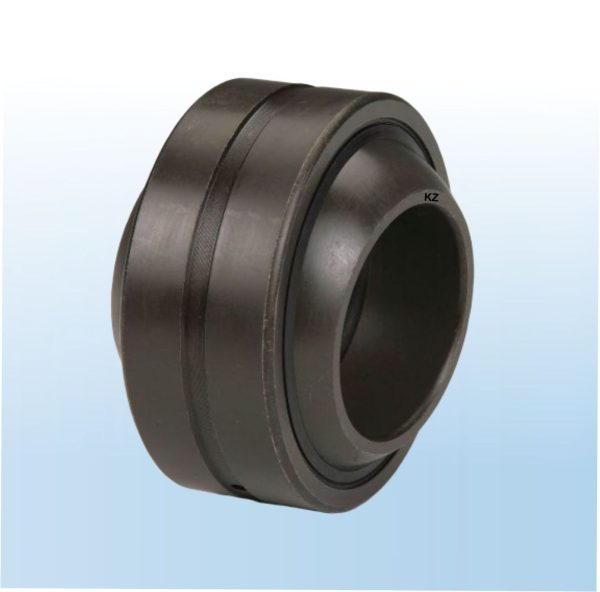

GEG ES 2RS

KZ SERIES : GEG4E, GEG12E, GEG35ES, GEG50ES, GEG100ES, GEG180ES

Material: the inner and outer rings are bearing steel.
Heat Treatment: the inner and outer rings are quenched and phosphating.
Structure: There are oil grooves and oil holes in the inner and outer ring. The outer ring has an axial slot. Sealing rings are attached to both sizes.
The sliding surface is coated with MoS2 powder lubricant.
Performance Characteristics: It has the advantages of abrasion resistance, corrosion resistance, and self-aligning. It has a wide inner ring and a large outer diameter, which applies to the machine that requires a large swing angle and large load.

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Send Query WhatsApp Us

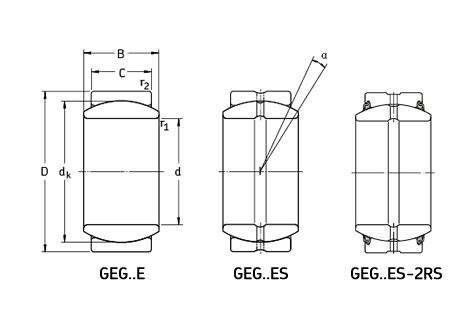

Bearing Number	Inner Diameter (d) MM	Outer Diameter (D) MM	Width (B) MM	Width C	a	Height	dk	r1 Min	r2 min	Basic Load Rating (N) Dyn. C	Basic Load Rating (N) Stat. C0	Weight (KG)	GOST	BCA
196						IVECO MAN			140					F300005
194						Renault			110				VKBA 5420	SNR HDS 001
GEG4E	4	14	7	4	20		10	0.3	0.3	3.4	17	0.005
GEG5E	5	16	9	5	21		13	0.3	0.3	5.5	27	0.008
GEG6E	6	16	9	5	21		13	0.3	0.3	5.5	27	0.006
GEG8E	8	19	11	6	21		16	0.3	0.3	8.1	40	0.014
GEG10E	10	22	12	7	18		18	0.3	0.3	10	53	0.021
GEG12E	12	26	15	9	18		22	0.3	0.3	16	84	0.03
GEG15ES	15	30	16	10	16		25	0.3	0.3	21	106	0.05
GEG17ES	17	35	20	12	19		29	0.3	0.3	30	146	0.08
GEG20ES	20	42	25	16	17		35.5	0.3	0.6	48	240	0.16
GEG25ES	25	47	28	18	17		40.7	0.6	0.6	62	310	0.2
GEG30ES	30	55	32	20	17		47	0.6	1	80	400	0.304
GEG35ES	35	62	36	22	15		53	0.6	1	100	500	0.408
GEG40ES	40	68	40	25	17		60	0.6	1	127	640	0.542
GEG45ES	45	75	43	28	14		66	0.6	1	156	780	0.713
GEG50ES	50	90	56	36	17		80	0.6	1	245	1220	1.44
GEG60ES	60	105	63	40	17		92	1	1	315	1560	1.6
GEG70ES	70	120	70	45	16		105	1	1	400	2000	3
GEG80ES	80	130	75	50	14		115	1	1	490	2450	3.64
GEG90ES	90	150	85	55	15		130	1	1	610	3050	5.22
GEG100ES	100	160	85	55	13		140	1	1	655	3250	6.1
GEG110ES	110	180	100	70	12		160	1	1	950	4750	9.68
GEG120ES	120	210	115	70	16		180	1	1	1080	5400	14.8
GEG140ES	140	230	130	80	16		200	1	1	1360	6800	19
GEG160ES	160	260	135	80	16		225	1.1	1.1	1530	7650	20
GEG180ES	180	290	155	100	14		250	1.1	1.1	2120	10600	32.2
GEG200ES	200	320	165	100	15		275	1.1	1.1	2320	11600	45.28
GEG220ES	220	340	175	100	16		300	1.1	1.1	2550	12700	51
GEG240ES	240	370	190	110	15		325	1.1	1.1	3030	15190	65.12
GEG260ES	260	400	205	120	15		350	1.1	1.1	3570	17850	82.5
GEG280ES	280	430	210	120	15		375	1.1	1.1	3800	19100	97.21
